SKU # 1000127102

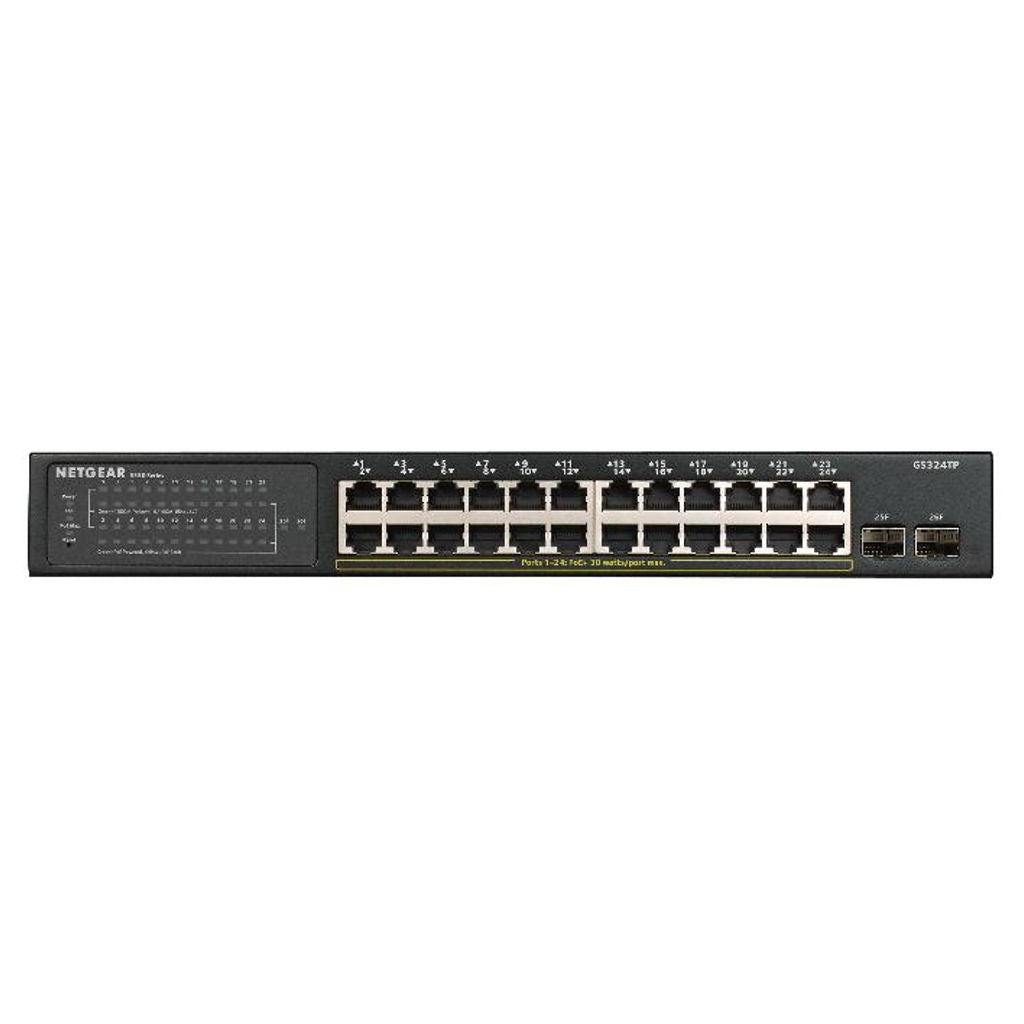

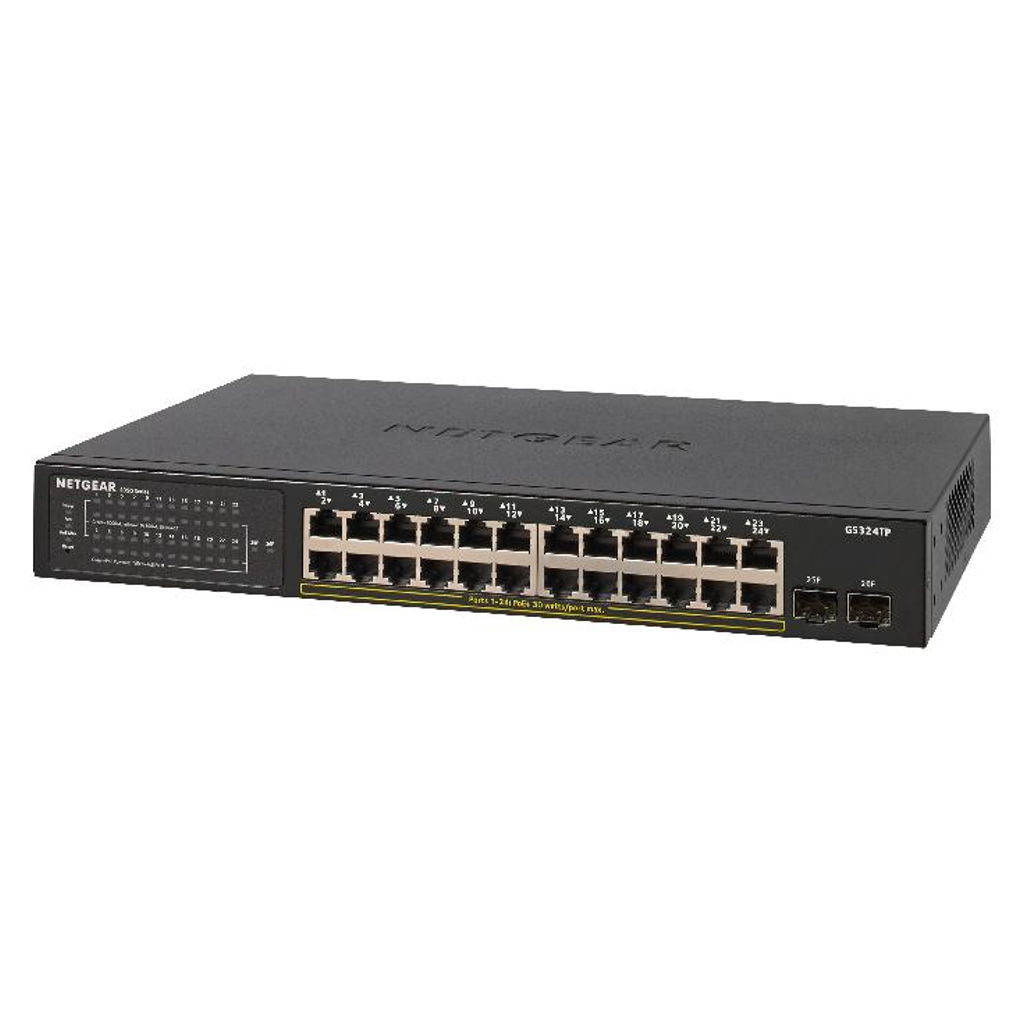

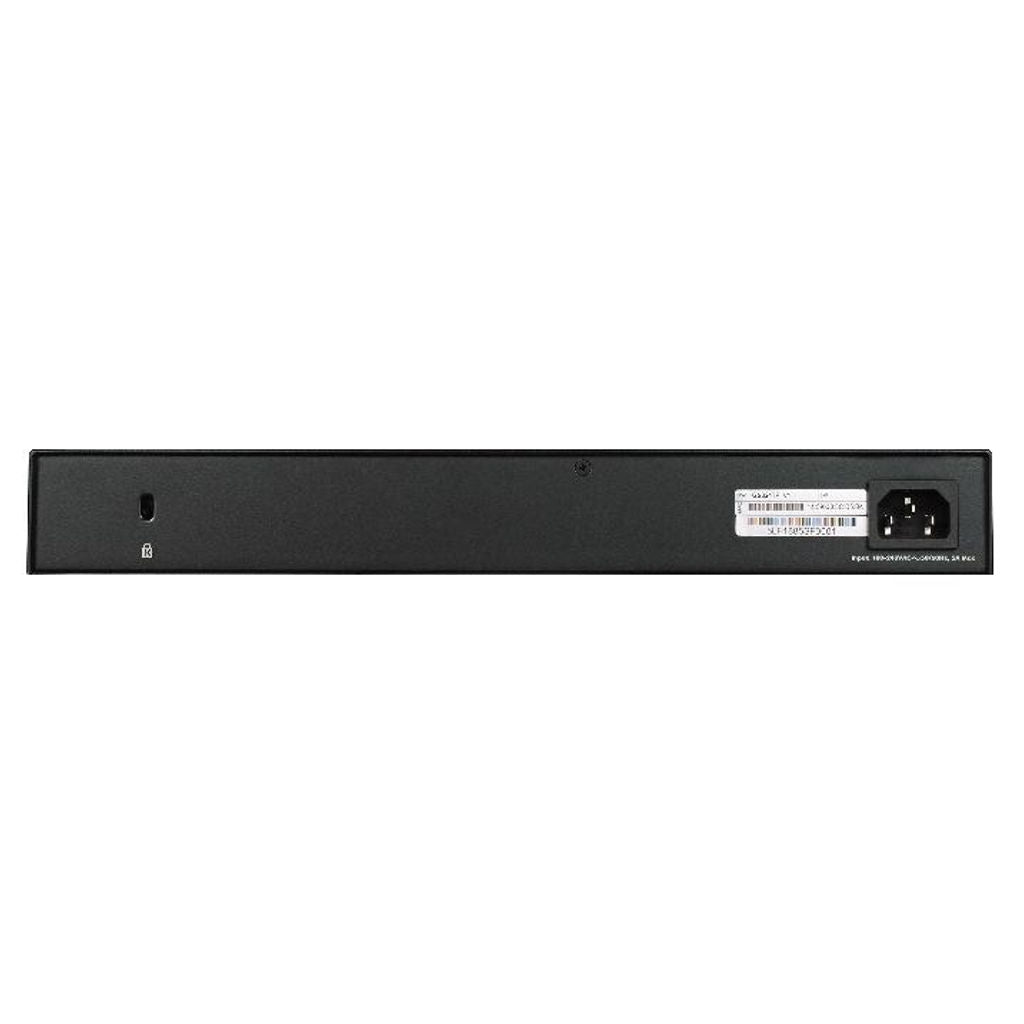

Netgear 24-Port Gigabit Ethernet PoE+ Smart Switch With 2 SFP Port 180 W GS324TP

Netgear 24-Port Gigabit Ethernet PoE+ Smart Switch With 2 SFP Port 180 W GS324TP


₹ 31,390.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

FREE Shipping
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Traffic Management

  • Auto Negotiation of speed and duplex modes

  • IEEE 802.3x Flow Control

  • Dynamic MAC address management

  • IEEE 802.1Q-based VLAN

  • Auto Voice VLAN

  • Auto Video VLAN

  • QoS based on WRR, strict priority, or both

  • Port-based and IEEE 801.2p-based QoS

  • TCP/UDP-based QoS

  • DiffServ

  • DSCP Support

  • Rate Limiting (ingress, or egress)

  • Link Aggregation and LACP

  • Switch Management

  • Web browser-based management GUI

  • Smart Control Center Software for multi-switch management

  • IP Access List

  • Configurable Management VLAN

  • SNMP v1/v2c and v3

  • Standard MIBs (RFC1213, RFC1643, and RFC1493)

  • RMON group 1, 2, 3, 9

  • Firmware Upgrade through Smart Control Center (TFTP)

  • Firmware download (to switch) and upload (to server) through TFTP/HTTP

  • Configuration and Image Upload (to PC) through HTTP

  • Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

  • Memory & FLASH log

  • Syslog (server)

  • System password protection

  • Registration through NETGEAT Insight App

  • Spanning Tree, Routing And Stacking

  • IEEE 802.1D Spanning Tree Protocol (STP)

  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

  • Reliability, Performance And Troubleshooting

  • Port mirroring both on ingress and egress traffic

  • Jumbo frame support

  • Broadcast Storm control

  • Cable diagnostics

  • Loop Detection

  • DoS Prevention

  • IEEE 802.1ab LLDP

  • LLDP-MED

  • Dual Image

  • SNTP

Product Specification

Brand

Netgear

Product Type

POE Switch

Product Model

GS324TP

10M/100M/1G RJ-45 Copper Ports

24

PoE / PoE+ Ports

24 PoE+ (190W PoE budget)

1G SFP (fiber) Ports

2 (dedicated)

Performance Specification

CPU

800MHz 512MB RAM 128MB FLASH

Packet Buffer Memory (Dynamically Shared Across Only Used Ports)

512KB

Forwarding Modes

Store-and-forward

Bandwidth

52 Gbps

Priority Queues

4

Priority Queuing

Weighted Round Robin (WRR) and Strict Priority

MAC Address Database Size (48-Bit MAC Addresses)

16K

Multicast Groups

512

Number Of VLANs

64

Number Of DHCP Snooping Bindings

8K

Access Control Lists (ACLs)

100 shared for MAC (ingress)

Packet Forwarding Rate (64 Byte Packet Size) (Mpps)

38.6

Jumbo Frame Support (Bytes)

9216

Acoustic Noise Level 25°C (dBA) (ANSI-S10.12)

32.8dBA

Mean Time Between Failures (MTBF) 25°C

1,328,429 hrs (152 yrs)

1G Copper Latency (64-Byte; 1518-Byte; 9216-Byte Frames)

3.734μs; 3.749μs; 3.807μs

1G Fiber Latency (64-Byte; 1518-byte; 9216-Byte Frames)

2.896μs; 2.903μs; 2.914μs

L2 Services - VLANs

IEEE 802.1Q VLAN Tagging

Yes

IP-Based VLANs

Yes

MAC-Based VLANs

Yes

Auto-Voice VLAN

Yes, based on OUI bytes (default database and user-based OUIs) in the phone source
MAC address

Auto-VOIP

Yes, based on protocols (SIP) Prioritzes traffic to a higher queue

Voice VLAN

Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP
phone using LLDP-MED.

Auto-Video VLAN

Yes

LEDs

Per Port

Speed, Link/ Activity, or PoE in different mode

Per Device

Power, Fan, PoE Maximum

Power Consumption

Maximum Power (Worst Case, All Ports Used, Full Poe, Line-Rate Traffic) (Watts)

229.9W

Maximum Power Without POE (Worst Case, All Ports Used, Line-Rate Traffic) (Watts)

16.3W

Iddle Power Consumption (All Ports Link-Down
Standby) (Watts)

11.1W

Heat Dissipation (Worst Case, All Ports Used, Full Poe, Line-Rate Traffic) (BTU/hr)

Maximum: 784.88 BTU/hr

Energy Efficient Ethernet (EEE) IEEE 802.3az

Yes (deactivated by default)

Fan

2

Operating Temperature

0° to 45° C (32° to 113° F)

Humidity (Relative)

95% Maximum relative humidity (RH), non condensing

Altitude

10,000 ft (3,000 m) Maximum

Storage Temperature

Storage temperature

Humidity (Relative)

95% Maximum relative humidity (RH), non-condensing

Altitude

10,000 ft (3,000 m) Maximum

Dimension (W x D x H)

330 x 206 x 43 mm (13.0 x 8.1 x 1.7 in)

Weight

2.69kg (5.93 lb)

Warranty

Limited Lifetime

Other Details

Dimension (CM) - L x B x H

6.8 x 3.3 x 9.7

Unit Of Measurement

1 Piece

Weight

934 g

Generic Type

POE Switches

Manufacturer Details

Netgear Technologies India PVT LTD. 21 Paharpur Business Centre, Nehru Place, New Delhi - 110019

Packer Details

Netgear Technologies India PVT LTD. 21 Paharpur Business Centre, Nehru Place, New Delhi - 110019

Country Of Origin

India
