SKU # 1000127104

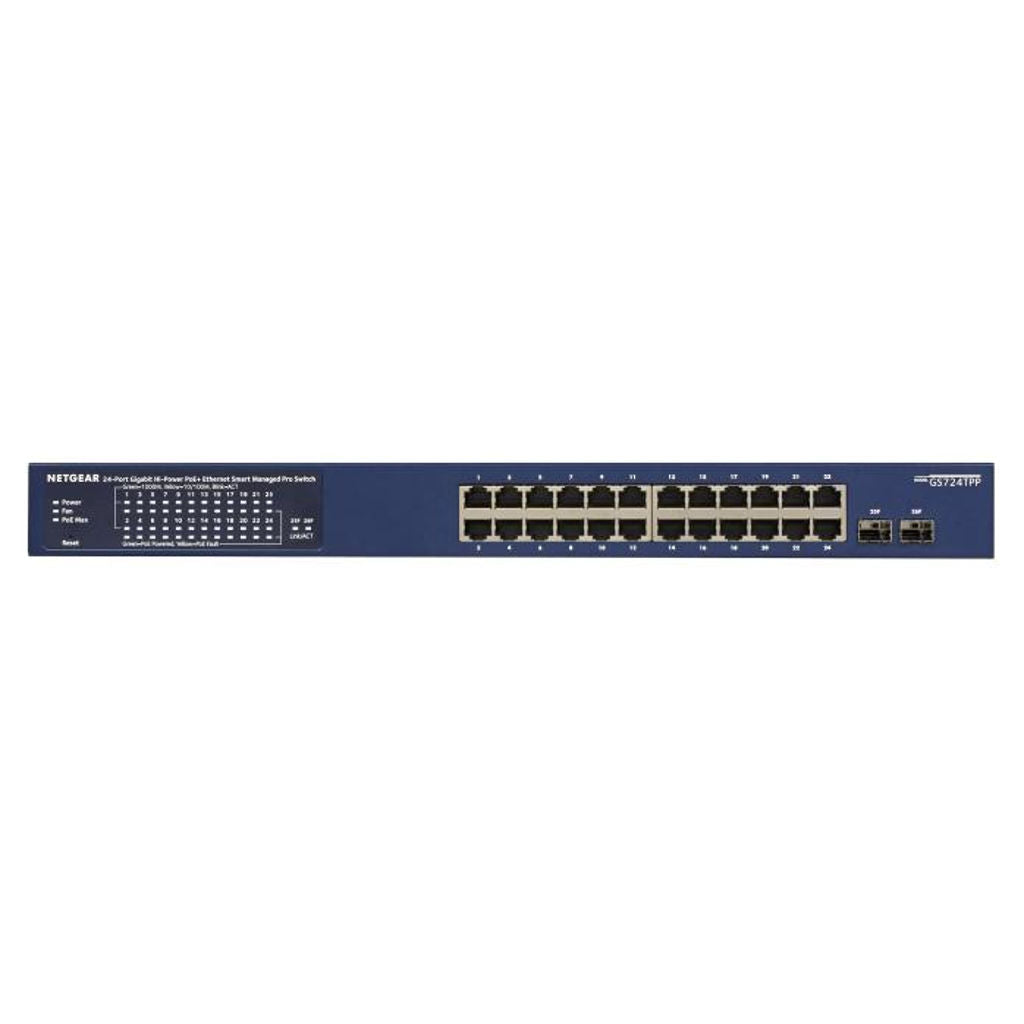

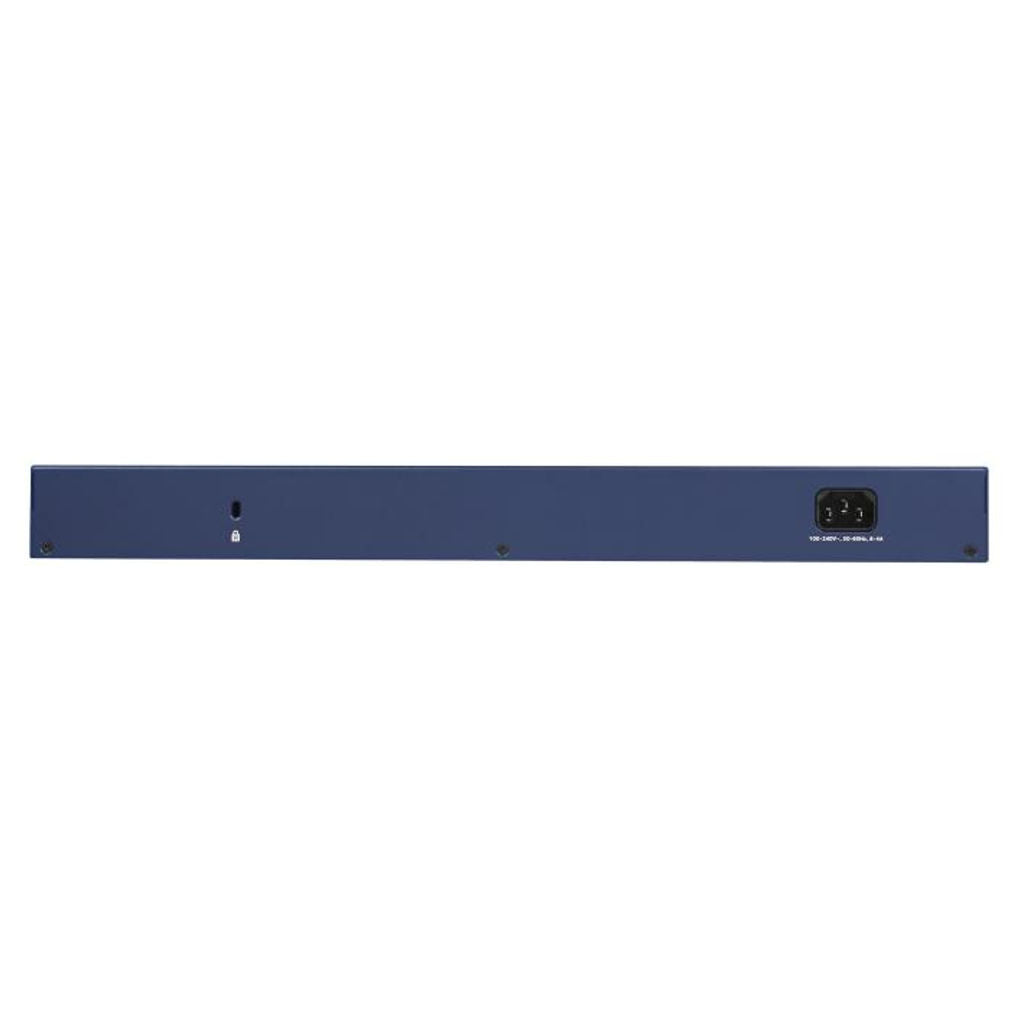

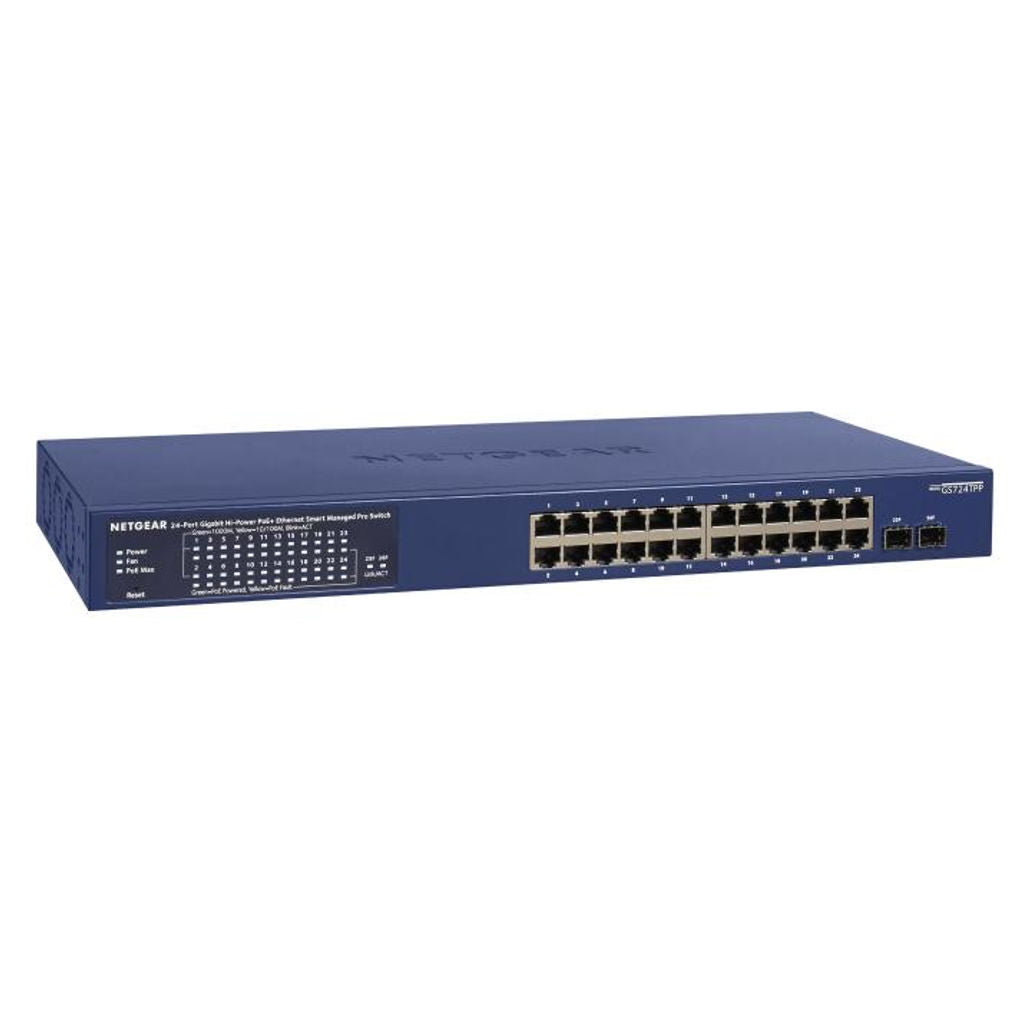

Netgear 24 Port Gigabit Ethernet PoE+ Smart Switch With 2 SFP Port 380 W GS724TPP
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Traffic Management
-
Auto Negotiation of speed and duplex modes
-
IEEE 802.3x Flow Control
-
Dynamic MAC address management
-
IEEE 802.1Q-based VLAN
-
Auto Voice VLAN
-
Auto Video VLAN (selected models)
-
VLAN routing (selected models)
-
QoS based on WRR, strict priority, or both
-
Port-based and IEEE 801.2p-based QoS
-
TCP/UDP-based QoS
-
DiffServ
-
IPv4 and IPv6-based QoS (selected models)
-
DSCP Support
-
Rate Limiting (ingress, or egress)
-
Link Aggregation and LACP
-
Switch Management
-
Insight mobile app or Insight Cloud Portal
-
Web browser-based management GUI
-
Smart Control Center Software for multi-switch management
-
IP Access List
-
IPv6 Management
-
Configurable Management VLAN
-
SNMP v1/v2c and v3
-
Standard MIBs (RFC1213, RFC1643, and RFC1493)
-
RMON group 1, 2, 3, 9
-
Firmware Upgrade through Smart Control Center (TFTP)
-
Firmware download (to switch) and upload (to server) through TFTP/HTTP
-
Configuration and Image Upload (to PC) through HTTP
-
Security
-
MAC lockdown
-
MAC lockdown by number of MACs
-
IEEE 802.1x port authentication
-
Dynamic VLAN Assignment
-
Guest VLAN
-
TACACS+
-
3 HTTPS /SSL versions
-
TLS session
-
Trusted MAC
-
IPv4, L4-based Access Control List (ACL)
-
IPv6-based ACL (selected models)
-
Multicast Efficiency
-
IGMP snooping, v1, v2 and v3
-
IGMP Snooping querier
-
Blocking of unknown multicast traffic
-
MLD snooping
-
Reliability, Performance And Troubleshooting
-
Port mirroring both on ingress and egress traffic
-
Jumbo frame support
-
Broadcast Storm control
-
Cable diagnostics
-
Loop Detection
-
DoS Prevention
-
IEEE 802.1ab LLDP
-
LLDP-MED
-
Dual Image
-
SNTP
Product Specification
| Brand | Netgear |
| Product Type | POE Switch |
| Product Model | GS724TPP |
| Gigabit Ethernet RJ-45 Copper Ports (10M/100M/1G) - 1000BASE-T | 24 |
| PoE/PoE+ ports | 24 |
| Gigabit SFP (Fiber) Ports (100M/1G) - 1000BASE-X | 2 (dedicated) |
| Power Supply | Internal Power Supply |
| Kensington Lock | Yes (rear) |
| LEDs |
|
| Front (Per Device) | Power (with Cloud Mode Indicator), PoE Maximum, PoE Fault |
| Front (Per Port) | Speed/Link/Activity |
| Performance Specification | |
| CPU | 500 Mhz MIPS-4KEc CPU 128MB RAM 32MB SPI FLASH |
| Packet Buffer Memory (Dynamically Shared Across Only Used Ports) | 512 KB |
| Forwarding Modes | Store-and-forward |
| Bandwidth (Non-Blocking, Full Duplex) | 52 Gbps |
| Priority Queues | 8 |
| Priority Queuing | Weighted Round Robin (WRR) or Strict Priority |
| MAC Address Database Size (48-bit MAC Addresses) | 8K |
| Multicast Groups | 256 |
| Number Of VLANS | 64 |
| Number Of DHCP Snooping Bindings | 256 |
| Access Control Lists (ACLs) | 100 shared for MAC, IP and IPv6 ACLs (ingress) |
| Packet Forwarding Rate (64 Byte Packet Size) (Mfps Or Mpps) | 38.6 |
| 1G Copper Standard Latency (μsec) | 64-byte: 3.563 μsec 1518-bye: 3.717 μsec 9216-byte: 3.464 μsec |
| POE Configuration |
|
| Number Of PoE (802.3af) / PoE+ (802.3at) ports | 24 PoE+ |
| Total PoE Power Budget (Watts) | 380W |
| Advanced Per-Port Poe Controls (Enable/Disable/Power Limit) | Yes |
| Advanced Per-Port Poe Scheduling/Timers | Yes |
| Operating Temperature | 0° to 50°C (32° to 122°F) |
| Humidity (Relative) | 95% Maximum relative humidity (RH), non condensing |
| Altitude | 10,000 ft (3,000 m) Maximum |
| Storage Temperature | –20° to 70°C (– 4° to 158°F) |
| Dimension (W x D x H) | 440 x 204 x 43 mm ( 17.3 x 8.0 x 1.7 in) |
| Weight | 3.7 kg (8.18 lb) |
| Warranty | Limited Lifetime |
Other Details
| Dimension (CM) - L x B x H | 6.8 x 3.3 x 9.7 |
| Unit Of Measurement | 1 Piece |
| Weight | 934 g |
| Generic Type | POE Switches |
| Manufacturer Details | Netgear Technologies India PVT LTD. 21 Paharpur Business Centre, Nehru Place, New Delhi - 110019 |
| Packer Details | Netgear Technologies India PVT LTD. 21 Paharpur Business Centre, Nehru Place, New Delhi - 110019 |
| Country Of Origin | India |
