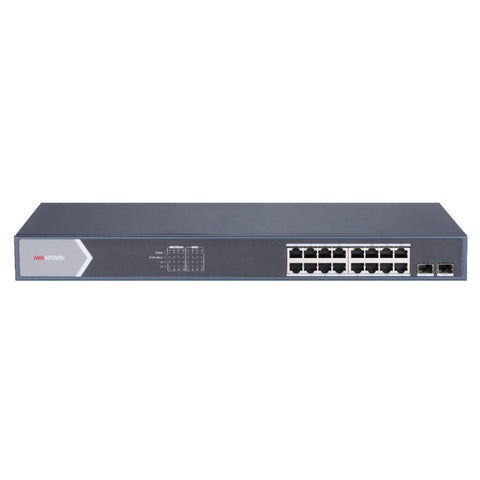

Hikvision Pro Series Gigabit Web-Managed PoE Switch DS-3E1518P-E
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
16 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
-
IEEE 802.3at/af standard for PoE ports.
-
EEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
-
6 KV surge protection for PoE ports.
-
PoE output power management.
-
AF/AT camera can reach up to 300 m in extend mode.
-
PoE watchdog to auto detect and restart the cameras that do not respond.
-
Gigabit network access design.
-
Wire-speed forwarding.• Store-and-forward switching.
-
Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
-
Port management.
-
Web management.
-
Solid high-strength metal shell
Product Specification
|
Brand |
Hikvision |
|
Product Type |
POE Switch |
|
Product Code |
DS-3E1518P-E |
|
Series |
Pro |
|
Port Number |
16 × gigabit PoE ports, and 2 × gigabit fiber optical ports |
|
Port Type |
RJ45 port, full duplex, MDI/MDI-X adaptive |
|
Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z |
|
Forwarding Mode |
Store-and-forward switching |
|
Working Mode |
Standard mode (default); Extend mode |
|
Mac Address Table |
8 K |
|
Switching Capacity |
36 Gbps |
|
Packet Forwarding Rate |
26.784 Mpps |
|
Internal Cache |
4.1 Mbits |
|
POE Standard |
IEEE 802.3af, IEEE 802.3at |
|
POE Power Pin |
Ethernet cables 1/2/3/6 provide power supply. |
|
POE Port |
Ports 1 to 16 |
|
Max. Port Power |
30 W |
|
POE Power Budget |
225 W |
|
Shell |
Metal material |
|
Operating Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Storage Temperature |
-40 °C to 85 °C (-40 °F to 185 °F) |
|
Operating Humidity |
5% to 95% (no condensation) |
|
Relative Humidity |
5% to 95% (no condensation) |
|
Power Supply |
100 to 240 VAC, 50/60 Hz, Max. 4 A |
|
Power Source |
250 W |
|
Max. Power Consumption |
250 W |
|
Power Consumption In Idle |
25 W |
|
Device Maintenance |
Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync |
|
Port Configuration |
Support the configuration of port rate and slow control, and ports enabling |
|
Long Range |
Support up to 300 m transmission |
|
POE Watchdog |
Ports 1 to 16: auto detect and restart the cameras that do not respond |
|
Port Rate-Limiting |
Support rate-limiting for ingress and egress ports |
|
Storm Control |
Support the storm control of unknown unicast, multicast and broadcast |
|
Port Mirroring |
Support port mirroring function. |
|
Qos |
Support WRR and SP scheduling and port priority. |
|
Vlan |
Support 128 VLANs. |
|
Stp |
Support STP and RSTP. |
|
Snmp |
Support SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition. |
|
POE |
Support IEEE 802.3at/af power supply. |
|
Dimension (l × H × D) |
440 mm × 220.8 mm × 44 mm (17.32” × 8.69” × 1.73”) |
|
Net Weight |
2.735 kg (6.03 lb) |
|
Gross Weight |
3.31 kg (7.30 lb) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
POE Switches |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
