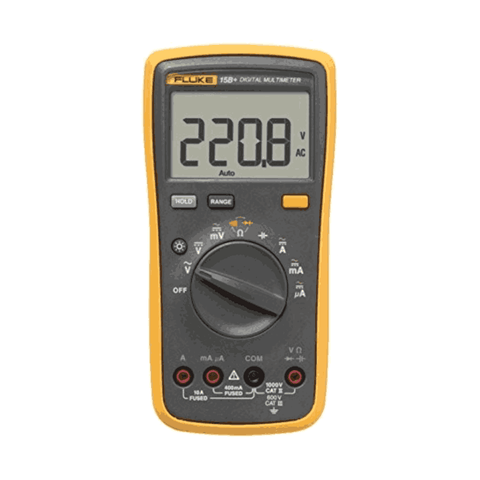

Fluke Digital Multimeter 15B+/IN CAT III

Name: Fluke Digital Multimeter 15B+/IN CAT III
Brand: Fluke
SKU: 1000017636
Price: 10590.0 INR
Availability: OutOfStock

Visit the Fluke Store

₹ 10,590.00

Quantity



Pack Qty : 1.0

Delivery Availability

Offers and Coupons

Ganesh Chaturthi Smart Deals

Use the coupon codes purchase of ₹3,000/- & above

Above ₹3,000 Use

GC100

Above ₹10,000 Use

GC200

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

600 V Cat III safety rating
50% bigger display with bright white backlight
Voltage, resistance, continuity, capacitance
Input terminal for ac and dc current measurements to 10 A current
Diode test, data hold

Product Specification

Brand	Fluke
Product Type	Digital Multimeter
Model	15B+/IN CATIII
Function	Range	Resolution	Accuracy
Ac Volts (40 Hz To 500hz)¹	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	1.0% + 3
Dc Volts	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	0.5% + 3
Ac Millivolts	400.0 mV	0.1 mV	3.0% + 3
Dc Millivolts	400.0 mV	0.1 mV	1.0% + 10
Diode Test²	2.000 V	0.001 V	10%
Resistance (Ohms)	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5% + 3 0.5% + 2 0.5% + 2 0.5% + 2 0.5% + 2 1.5% + 3
Capacitance³	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5
Ac Current Μa (40 Hz To 400 Hz)	400.0 μA 4000 μA	0.1 μA 1 μA	1.5% + 3
Ac Current Ma (40 Hz To 400 Hz)	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5% + 3
Ac Current A (40 Hz To 400 Hz)	4.000 A 10.00 A	0.001 A 0.01 A	1.5% + 3
Dc Current Μa	400.0 μA 4000 μA	0.1 μA 1 μA	1.5% + 3
Dc Current Ma	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5% + 3
Dc Current A	4.000 A 10.00 A	0.001 A 0.01 A	1.5% + 3
Display (LCD)	4000 counts, updates 3/sec
Battery Type	2 AA, NEDA 15A, IEC LR6
Battery Life	500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.)
Operating Temprature	0 °C to 40 °C
Storage Temprature	-30 °C to 60 °C
Operating Altitude	2000 m
Storage Altitude	12,000 m
Temperature Coefficient	0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Fuse Protection For Current Inputs	440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only.
Size (H X W X L)	183 x 91 x 49.5 mm
Weight	455 g
Ip Rating	IP 40
Safety	IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2
Warranty	Brand Warranty

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	Digital Multimeter
Manufacturer Details	Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070
Packer Details	Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070
Country of Origin	India
