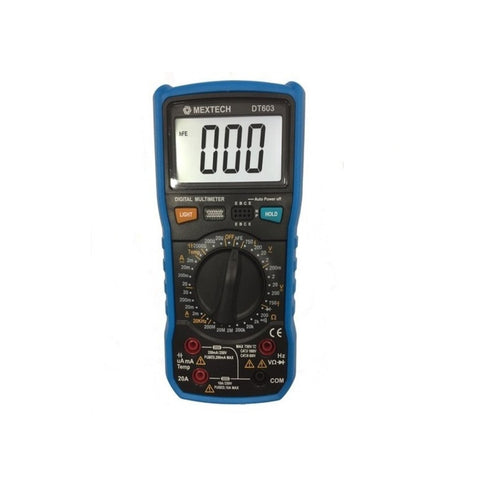

Mextech Digital Multimeter (AC Voltage Range 2V to 750V) DT-603

Mextech Digital Multimeter (AC Voltage Range 2V to 750V) DT-603


₹ 1,890.00

Quantity

Pack Qty : 1.0



Delivery Availability

 Estimated Dispatch Within 2 Days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • This instrument is multi range digital Multimeter

  • It Performs AC/DC voltage, AC/DC Current, Capacitance, Frequency, Resistance etc

  • Display : 3 ½ digits LCD Display

  • Low battery Indication

  • Diode and Continuity test

  • Data hold & Back Light

  • Operating Temperature & Humidity : 0ºC to 40ºC <80% RH

  • Overload Indication : “OL” Displayed.

  • Sampling Speed : Approx 3 times/second

  • Power Supply :9V Battery.

  • Unit Size 195 X 92 X 55 mm

  • Display Size : 61 X 35 mm

  • Weight : 380 gms including battery.

  • Accessories : Instruction Manual, Test Leads, 9V Battery, Temperature Probe.

  • Fuse Protection

  • mA gear : Ceramic fuse F1 250mA/250 or 250mA/600V

  • 10A gear : Ceramic fuse F2 10A/250V or 10A/600V

Product Specification

Brand

Mextech

Product Code

DT-603

Product Type

Digital Multimeter

AC Voltage Ranges

2V/20V/200V/750V

AC Voltage Accuracy

± 1.2%

DC Voltage Ranges

200mV/2V/20V/200/750V

DC Voltage Accuracy

± 0.8%

AC Current Ranges

2mA/20mA/200mA/20A

AC Current Accuracy

± 3.0%

DC Current Ranges

2mA/20mA/200mA/20A

DC Current Accuracy

± 2.0%

Resistance Ranges

200Ω/2kΩ/20kΩ/200kΩ/2mΩ/20MΩ/200MΩ

Resistance Accuracy

± 0.8%

Capacitance Ranges

20µF/200µF/2000µF

Capacitance Accuracy

± 4.0%

Temp. Ranges

-20℃ To 1000℃

Temp. Accuracy

± 1.0%

Frequency Ranges

20khz

Frequency Accuracy

± 1.5%

Transistor, HFE

0 to 1000

Warranty

As Per Manufacturer Terms And Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Digital Multimeter

Manufacturer Details

Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India

Packer Details

Mextech Technologies India Private Limited 4A, Yatin Mansion, 1st Floor, C Block, Bhangwadi, Kalbadevi Road, Kalbadevi Mumbai - 400002, Maharashtra, India

Country of Origin

India
