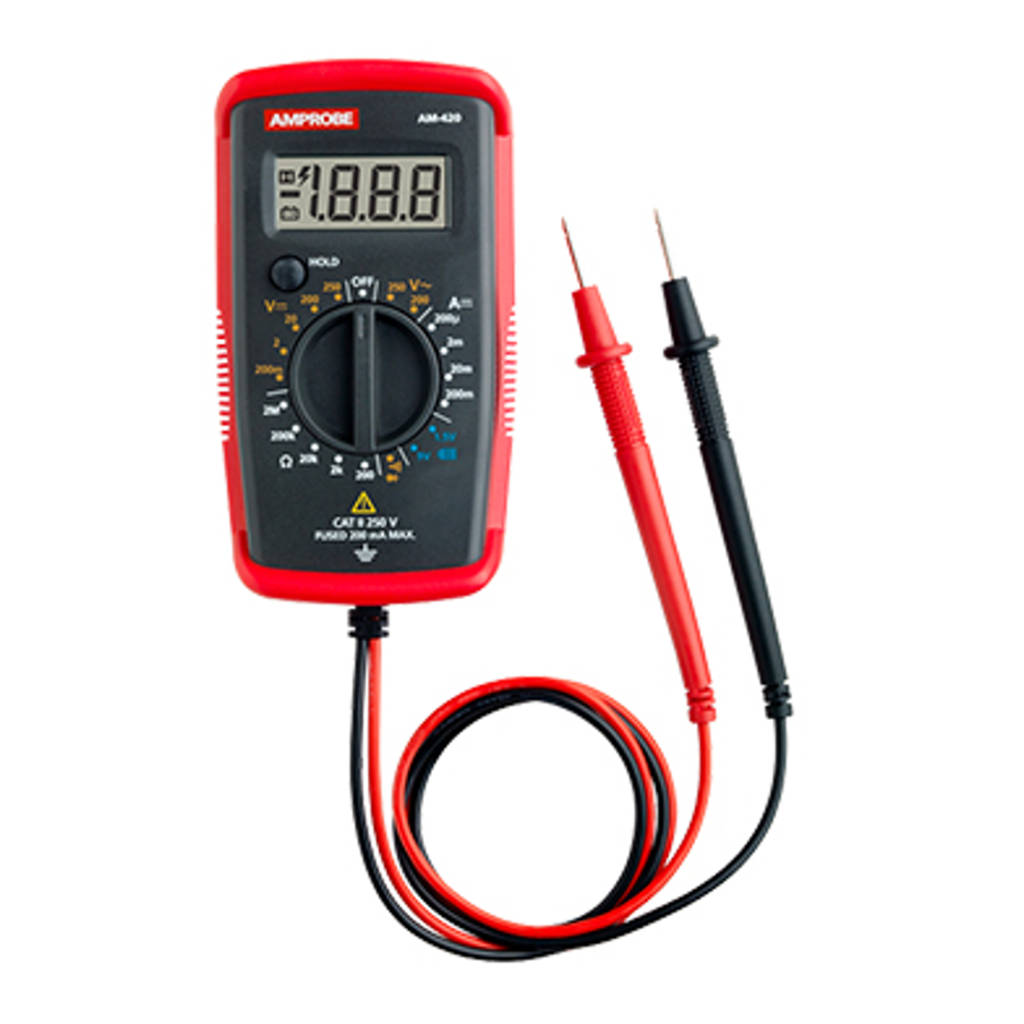

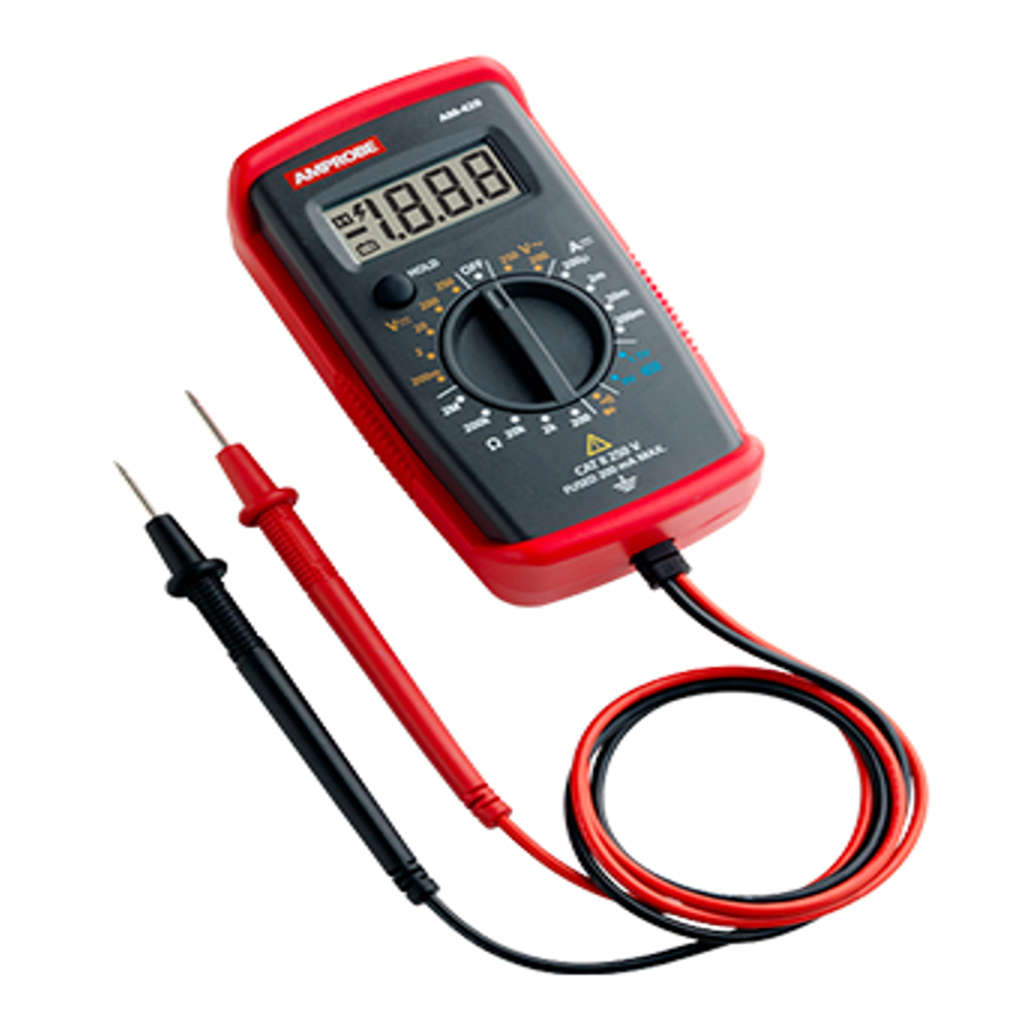

Amprobe Residential Digital Multimeter AM-420

Amprobe Residential Digital Multimeter AM-420

Visit the Amprobe Store
Mid-Year Value Sale

₹ 2,560.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Test leads installed

  • Measures AC/DC voltage

  • Measures DC current

  • Measures resistance

  • Audible continuity alert

  • Rated to CAT II 250 V

  • Diode testing

  • Designed for in home repair and electrical testing applications, the AM-420 Digital Multimeter accurately measures voltage in receptacles, switches, extension cords and light fixtures

  • Use the continuity function to easily troubleshoot light bulbs and fuses

  • This compact tools is designed for in-home repair and electrical testing applications, including measuring presence of voltage in electrical sockets, extension cords, batteries and other electrical circuits up to 250 V

  • It is a must have tool for residential projects including installation, troubleshooting or repair of light fixtures, fans or appliances

  • DC ranges of voltage and current are included to help with automotive diagnostics of electrical systems

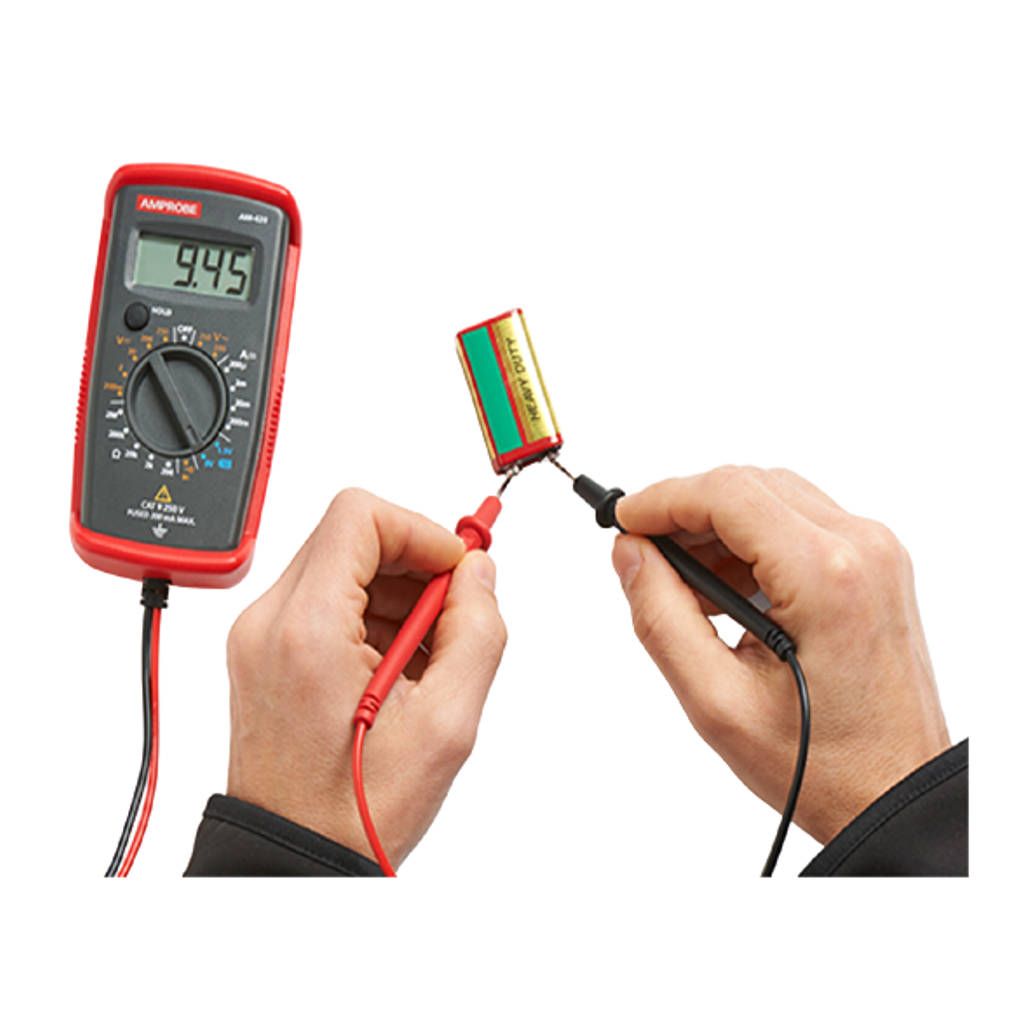

  • The battery test feature checks the amount of charge remaining in standard 1.5 V and 9 V batteries

Product Specification

Brand

Amprobe

Product Type

Digital Multimeter

Model No

4306513

Feature

AM-420

Best Accuracy

AC Voltage

200.0 / 300 V

+/-(1.5% rdg + 4 LSD)
@ 45 Hz to 400 Hz, 2 V to 200 V

DC Voltage

200 mV
2.000 / 20.00 / 200.0 / 250 V

+/-(1.2% rdg + 2 LSD)
@ 200 mV to 200 V

DC Current

200.0 µA
2.000 / 20.00 / 200.0 mA

+/-(1.2% rdg + 5 LSD)
@ 200 µA to 20 mA

Resistance

200.0 Ω
2.000 / 20.00 / 200.0 kΩ

+/-(1.5% rdg + 5 LSD)
@ 200 Ω to 200 kΩ

Battery Test

1.5 V, 9 V

+/-(5.0% rdg + 1 LSD)

Maximum Display

1999, updates 2 to 3/sec

Range

Manual-ranging

Operating Temperature

32°F to 104°F (0°C to +40°C)


Relative Humidity

32°F to 86°F (0°C to +30°C) ≤75%; 86°F to 104°F (+30°C to +40°C) ≤50%

Pollution Degree

2

Operating Altitude

6561 ft (2000 m)

Electromagnetic Compatibility

In an RF filed of 1V/m = Specified accuracy ± 5%. RF field > 1V/m is not specified.

Over-Range Indication

1 “, “-1” or maximum display reading

Battery

One 9V alkaline battery (6LF22, 6LR61, MN1604) or equivalent

Battery Life

Alkaline: 100 hours typical

Overvoltage Category

CAT II 250V

Safety Compliance

IEC 61010-1, UL 61010-1 2nd Ed. and CAN/CSA C22.2 No. 61010-1-04 Update No.1:2008

Emc Compliance

Conforms to IEC 61326-1

Dimensions (L X W X H)

4.5 x 2.6 x 1.6 in (115 x 65 x 40 mm)

Weight

Approximately 0.61 lb (275 g) with battery installed

Warranty

As Per Manufacturer Terms And Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Digital Multimeter

Manufacturer Details

‎Amprobe USA – Amprobe Everett, WA 98203 1-877-267-7623 info@amprobe.com

Packer Details

Mouser Electronics India PVT Ltd #9 Esquire Center Second Floor, A Wing, MG Road Bangalore 560001

Country of Origin

USA
