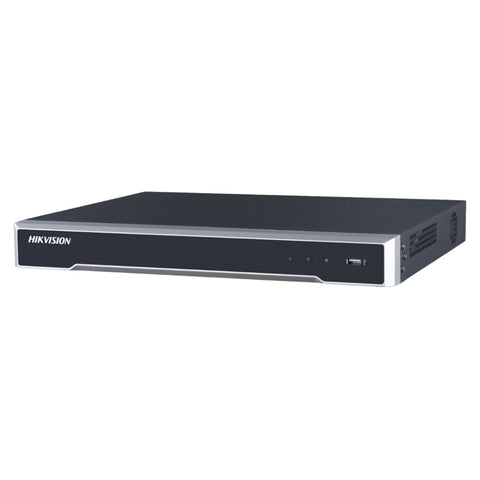

Hikvision Network Video Recorder With POE 16CH 4K DS-7616NI-K2/16P
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Up to 16-ch IP camera inputs
-
H.265+/H.265/H.264+/H.264 video formats
-
Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
-
1 HDMI and 1 VGA interfaces, both interfaces support independent video output
-
2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
-
Up to 160 Mbps incoming bandwidth
-
Plug-and-play with 8 power over Ethernet (PoE) interfaces
-
Professional And Reliability
-
H.265+ compression effectively reduces the storage space by up to 75%
-
Adopt stream over TLS encryption technology which provides more secure stream transmission service
-
Hd Video Output
-
Provide independent HDMI and VGA outputs
-
HDMI video output at up to 4K resolution
-
Storage And Playback
-
2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
-
16-ch synchronous playback
-
Smart Function
-
Support multiple VCA (Video Content Analytics) events
-
Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.) and ANPR
-
Network & Ethernet Access
-
1 self-adaptive 10/100/1000 Mbps Ethernet interface
-
16 independent PoE network interfaces
-
Hik-Connect for easy network management
Product Specification
|
Brand |
Hikvision |
|
Product Type |
NVR |
|
Product Model |
DS-7616NI-K2/16P |
|
Video And Audio |
|
|
Ip Video Input |
16-ch |
|
Incoming Bandwidth |
160 Mbps |
|
Outgoing Bandwidth |
160 Mbps |
|
HDMI Output |
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
VGA Output |
1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
Video Output Mode |
HDMI/VGA independent output |
|
Audio Input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
|
Decoding |
|
|
Decoding Format |
H.265/H.265+/H.264/H.264+ |
|
Recording Resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Synchronous Playback |
16-ch |
|
Decoding Capability |
2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722/G.726 |
|
Network |
|
|
Remote Connection |
128-ch |
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPTM, HTTP, HTTPS |
|
Network Interface |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
Poe |
|
|
Interface |
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
Power |
≤ 200 W |
|
Standard |
IEEE 802.3 af/at |
|
Auxiliary Interface |
|
|
Sata |
2 SATA interfaces |
|
Capacity |
Up to 10 TB capacity for each HDD |
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
|
Alarm In/Out |
4/1 |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50 to 60Hz |
|
Consumption |
≤ 15 W (without HDD and PoE off) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10 to 90 % |
|
Dimension(WxDxH) |
385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
|
Weight |
≤ 3 kg (without HDD, 6.6 lb.) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel NVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
