SKU # 1000102850

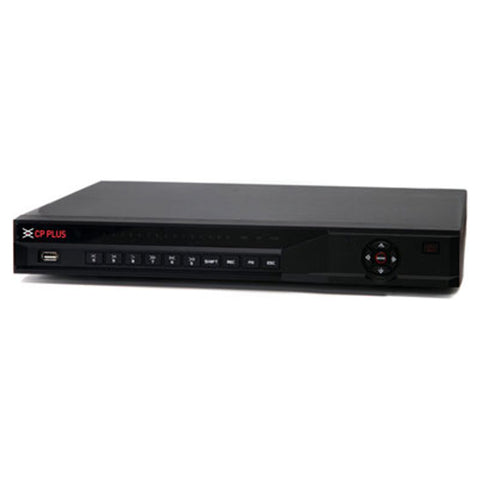

CP Plus AI Network Video Recorder Without HDD 16 Channel CP-UNR-216F2-I2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
16 Channel IP video access
-
Instastream /H.265/Smart H.264+ /H.264/MJPEG
-
Maximum decoding capability: 6 × 1080p@30fps. Supports adaptive decoding
-
1-channel face detection and recognition (AI by NVR); 1-channel perimeter protection (AI by NVR); up to 10 face databases and 5,000 face images
-
AI by camera: Face detection and recognition, perimeter protection and SMD
-
Support 2 SATA HDDs up to 10TB Each, 2 USB Ports
-
Support Multi-brand network cameras
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
| Brand | CP Plus |
| Product Type | NVR |
| Product Model | CP-UNR-216F2-I2 |
| Processor | Industrial-grade embedded processor |
| Operating System | Embedded LINUX |
| Ip Camera Input | 16 channel |
| Two-Way Talk | 1 Ch. audio in/1 Ch. out, RCA |
| User Interface | Web; local GUI |
| Video Output | 1 × VGA, 1 × HDMI (max. resolution: 4K) (simultaneous) |
| Resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720P; D1 |
| AI By Camera | Face detection; face recognition; perimeter protection; SMD |
| Video Compression | H.265/Smart H.264+/H.265/H264/MJPEG |
| Encode Strategy | Instastream |
| AI By Device | Face detection; face recognition; perimeter protection |
| Video Display Split | 1/4/8/9/16 |
| Audio Compression | PCM/G711A/G711U/G26/AAC |
| Decoding Capability | AI disabled: 1-channel 12MP@30fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 6-channel 1080p@30fps AI enabled: 1-channel 8MP@30fps; 1-channel 5MP@30fps; 2-channel 4MP@30fps; 4-channel 1080p@30fps |
| Audio Output | 1 channel |
| Audio Input | 1 channel |
| Camera Blank | Supports |
| Motion Detection | MD Zones: 396 (22 × 18) |
| Video Loss | Supports |
| Alarm Linkage | Record; snapshot; buzzer; log; preset; email; tour |
| AI Search | Face detection; face recognition; perimeter protection; SMD |
| General Alarm | Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm |
| Face Database Capacity | Up to 10 face databases with 5,000 images |
| Human Face Recognition Performance | 5 |
| Smart Phone | iPhone, iPad, Android Phone |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception |
| Face | 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Hard Disk | 2 SATA III ports, up to 10TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| Recording Mode | Manual record; alarm recordings; motion detection recordings; scheduled recordings |
| Backup Mode | USB device |
| Playback | Play; pause; stop; fast forward; fast backward; rewind; play by frame, Full screen; backup (cut/file) ; partially enlarge; audio on/off |
| Record Interval | n/a |
| Ethernet | 1 RJ-45 10/100/1000 Mbps |
| Interface Ports | 2 USB Ports (1 × front USB2.0; 1 × back USB2.0) |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search; RTSP; P2P; Auto Registration; ONVIF (profile T; profile S; profile G); CGI; SDK |
| Power Supply | DC 12V/4A |
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) |
| Working Temperature | -10°C to 55°C (+14°F to +113°F) |
| Storage Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimension | 375 mm × 284.3 mm × 53 mm (W × L × H) |
| Operating Altitude | 3000 m |
| Weight | 1.51 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel NVR |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
