Out of Stock!
SKU # 1000095130

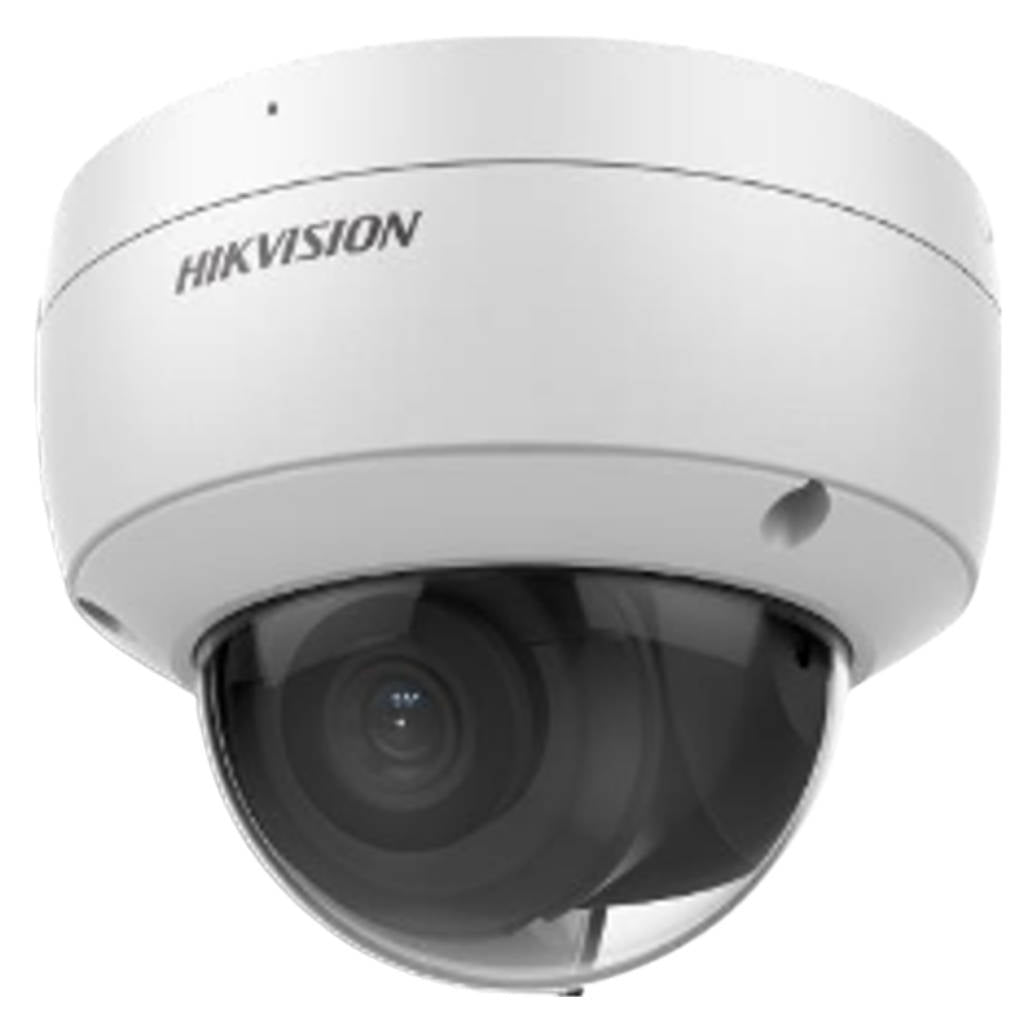

Hikvision Pro Series AcuSense Fixed Dome Network Camera 4MP DS-2CD2143G2-IU
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Clear imaging against strong backlight due to 120 dB WDR technology
-
Efficient H.265+ Compression technology
-
Built-in microphone for real-time audio security
-
Water and dust resistant (IP67) and vandal resistant (IK10)
-
Focus on human and vehicle targets classification based on deep learning
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Dome Camera |
|
Product Code |
DS-2CD2143G2-IU |
|
Series |
Pro |
|
Camera |
|
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6 AGC ON) 0 Lux with IR on |
|
Shutter Speed |
1/3 s to 1/100 000 s |
|
Slow Shutter |
Yes |
|
P/N |
P/N |
|
Wide Dynamic Range |
120 dB |
|
Day & Night |
ICR Cut |
|
Angle Adjustment |
Pan: 0° to 355° tilt: 0° to 75° rotate: 0° to 355° |
|
Lens |
|
|
Lens Type & Fov |
2.8 mm horizontal FOV 103° vertical FOV 55° diagonal FOV 122° 4 mm horizontal FOV 84° vertical FOV 45° diagonal FOV 100° |
|
Aperture |
F1.6 |
|
Lens Mount |
M12 |
|
DORI |
|
|
DORI |
2.8 mm: D: 67 m O: 26 m R: 13 m I: 6 m 4 mm: D: 80 m O: 31 m R: 16 m I: 8 m |
|
Illuminator |
|
|
IR Range |
Up to 30 m |
|
Wavelength |
850 nm |
|
Video |
|
|
Max. Resolution |
2688 × 1520 |
|
Main Stream |
50 Hz: 25 fps (2688 × 1520 1920 × 1080 1280 × 720) 60 Hz: 30 fps (2688 × 1520 1920 × 1080 1280 × 720) |
|
Sub Stream |
50 Hz: 25 fps (640 × 480 640 × 360) 60 Hz: 30 fps (640 × 480 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 × 1080 1280 × 720 640 × 480 640 × 360) 60 Hz: 10 fps (1920 × 1080 1280 × 720 640 × 480 640 × 360) |
|
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main Profile |
|
H.264+ |
Main Stream supports |
|
H.265+ |
Main Stream supports |
|
Bit Rate Control |
CBR/VBR |
|
Scalable Video Coding (SVC) |
Yes |
|
Region Of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
Audio |
|
|
Environment Noise Filtering |
Yes |
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Audio Bit Rate |
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC) /32-192Kbps(MP2L2)/8-320Kbps(MP3) |
|
Network |
|
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface (Profile S Profile G) ISAPI SDK |
|
Protocols |
TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP NTP UPnP SMTP IGMP 802.1X QoS IPv6 UDP Bonjour SSL/TLS PPPoE |
|
User/Host |
Up to 32 users. 3 user levels: administrator operator and user |
|
Security |
Password protection complicated password HTTPS encryption IP address filter Security Audit Log basic and digest authentication for HTTP/HTTPS TLS 1.1/1.2 WSSE and digest authentication for Open Network Video Interface |
|
Network Storage |
MicroSD/SDHC/SDXC card (256 GB) local storage and NAS(NFS SMB/CIFS) auto network replenishment (ANR) |
|
Client |
iVMS-4200 Hik-Connect Hik-Central |
|
Web Browser |
Plug-in requIRed live view: IE 10 IE 11 Plug-in free live view : Chrome 57.0+ FIRefox 52.0+ Local service: Chrome 57.0+ FIRefox 52.0+ |
|
Image |
|
|
Day/Night Switch |
Day Night Auto Schedule |
|
Image Enhancement |
BLC HLC 3D DNR |
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mIRror privacy mask saturation brightness contrast sharpness gain white balance adjustable by client software or web browser |
|
Interface |
|
|
Built-In Microphone |
Yes |
|
On-Board Storage |
Built-in micro SD up to 256 GB |
|
Hardware Reset |
Yes |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
Event |
|
|
Basic Event |
Motion detection (human and vehicle targets classification) video tampering alarm exception |
|
Face Detection |
Yes |
|
Deep Learning Function |
|
|
Perimeter Protection |
Line crossing detection intrusion detection Supports human and vehicle targets classification |
|
General |
|
|
Linkage Method |
Upload to FTP/memory card/NAS notify surveillance center trigger record trigger capture Email |
|
Web Client Language |
33 languages English Russian Estonian Bulgarian Hungarian Greek German Italian Czech Slovak French Polish Dutch Portuguese Spanish Romanian Danish Swedish Norwegian Finnish Croatian Slovenian Serbian Turkish Korean Traditional Chinese Thai Vietnamese Japanese Latvian Lithuanian Portuguese (Brazil) Ukrainian |
|
General Function |
Anti-flicker heartbeat password reset via e-mail pixel counter |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25% reverse polarity protection PoE: 802.3af Class 3 |
|
Power Consumption And Current |
12 VDC 0.4 A max. 5 W PoE (802.3af 36 V to 57 V) 0.2 A to 0.15 A max. 6.5 W |
|
Power Interface |
Ø 5.5 mm coaxial power plug |
|
Material |
Aluminum alloy body Bubble: plastic |
|
Approval |
|
|
Emc |
FCC (47 CFR Part 15 Subpart B); CE-EMC (EN 55032: 2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6 2016); KC (KN 32: 2015 KN 35: 2015) |
|
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529-2013) IK10 (IEC 62262: 2002) |
|
Camera Dimension |
Ø121.4 × 92.2 mm (Ø4.8′′ × 3.7′′) |
|
Camera Weight |
Approx. 570 g (1.3 lb.) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
