Out of Stock!
SKU # 1000129228

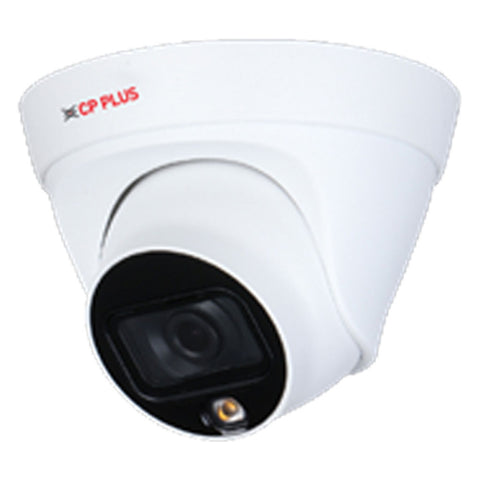

CP Plus 4 MP Full Color Guard+ Network Dome Camera CP-UNC-DA41L2C-GP
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/3” 4MP PS CMOS Image Sensor(0.84667cm)
-
Maximum Output 4 MP (2560 × 1440)@25/30fps
-
Instastream; SMART H.264+ and H.264 dual-stream encoding
-
WDR(120dB), Day/Night (ICR), 3D-DNR,ROI, AWB, AGC, BLC, HLC
-
3.6mm fixed lens (2.8mm optional)
-
Built in Mic
-
Illuminator Range of 15 Mtrs, IP67, PoE
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
-
With features of simple installation, easy operation, and high performance-cost ratio, Guard+ Series of Network Camera is applicable to small and medium sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises
-
This product uses the latest PoE technology to trouble- shoot the occurrence of any issues in the system making it easier to use
-
With the help of this technology, your camera now only consumes energy directly from the
power supply and doesn’t require any mid-way switches -
With high-performance sensor and large aperture lens,Guard+ Series of Network Camera Full-color technology can display clear colorful image in the environment of ultra-low illumi- nance
-
With this photosensitivity technology, the camera can capture more available light, and display more colorful image details
-
Wide Dynamic Range (WDR)
-
When a scene is partly dark and partly bright, that is the dy-namic range that distorts images due to this difference in the lighting
-
WDR technology provides you balanced lighting for a clear and vivid image throughout the day
-
WDR technology can be installed at entry/exit points of any building structure, jewelry shops, outdoor location among so many other places
-
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is re-leased with the surveillance hardware and exclusively sup-ports CP PLUS devices
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/NVRs and Video Door Phones, the CP PLUS gCMOB/iCMOB application offers a host
of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk and more -
Regions Of Interest
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
Product Specification
| Brand | CP Plus |
| Product Type | Dome Camera |
| Product Code | CP-UNC-DA41L2C-GP |
| Image Sensor | 1/3” 4MP Progressive scan CMOS(0.84667cm) |
| Minimum Illumination | 0.008 lux@F1.6 |
| Effective Pixels | 2560 (H) × 1440 (V) |
| Lens | 3.6mm (2.8mm Optional) |
| Gain Control (AGC) | Auto/Manual |
| ICR | Color/B/W |
| Lens Type | Fixed |
| Privacy Mask | 4 Area |
| Maximum Aperture | F1.6 |
| S/N Ratio | More than 56dB |
| DORI Distance | 3.6 mm: 85.4m (detect) 34.2m (Observe) 17.1m (Recognize) 8.5m (Identify) 2.8 mm: 63.6m (detect) 25.4m (Observe) 12.7m (Recognize) 6.4m (Identify) |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Mount Type | M12 |
| Angle Of View | H: 95°, V: 52°, D: 114°, H: 78°, V: 41°; D: 94° |
| ROI | Yes(4 Zone) |
| Frame Rate | Main stream: 2560 × 1440@ (1–25/30 fps) sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps) |
| White Balance | Auto, natural, street lamp; outdoor; manual; regional custom |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Audio | Built in Mic |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Video Compression | H.265, H.264+, H.264B, H.264, MJPEG (only supports by sub stream) |
| SDK And API | Supported |
| Encode Strategy | Instastream |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour, ONVIF (Profile S, Profile T), CGI, InstaOn, Milestone |
| Cyber Security | Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, syslog, Video encryption, 802.1x, IP/MAC filtering, HTTPS |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio exception; voltage detection; security exception |
| Bit Rate | H.264: 32 kbps–6144 kbps, H.265: 32 kbps–6144 kbps |
| Illumination Distance | Illumination Distance 15 Mtr |
| Operating Temperature | -40 °C to +55°C (–40 °F to +131 °F) |
| Storage Temperature | -40 °C to +60 °C (–40 °F to +140 °F) |
| Smart Phone | iPhone, iPad, Android Phone |
| Power Source | 12V DC/PoE (802.3af) |
| Power Consumption | Basic: 2.1 W (12 VDC), 3 W (PoE) Maximum (WDR+H.265+ warm light intensity): 4.3 W (12 VDC); 5.3 W (PoE) |
| Ethernet | RJ-45 (10/100Base-T) |
| Casing | Inner core: Metal + Plastic Cover: Plastic Decoration ring: Plastic Pedestal: Plastic |
| Weatherproof Standard | IP67 |
| Dimension | 85.5 × Φ109 mm |
| Weight | 0.24 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.7 x 9.5 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.319 kg |
| Generic Type | Dome Camera |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
