SKU # 1000118248

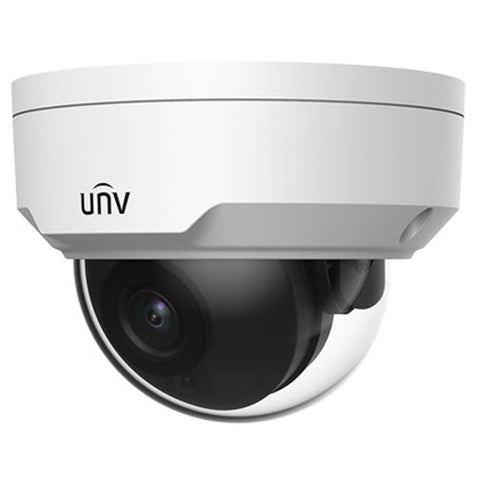

UNV Vandal HD IR Fixed Dome Network Camera 2MP IPC322LB-DSF28K-G
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High quality image with 2MP, 1/2.7"CMOS sensor
-
2MP (1920x1080) 30/25fps; 720P (1280x720) 30/25fps
-
Ultra 265, H.265, H.264, MJPEG
-
120dB true WDR technology enables clear image in strong light scene
-
Support 9:16 Corridor Mode
-
Smart IR, up to 30m (98ft) IR distance
-
Supports 128 G Micro SD card
-
IK10 vandal resistant
-
IP67 protection
-
Support PoE power supply
-
3-Axis
Product Specification
| Brand |
UNV |
||||
| Product Type |
Dome Camera |
||||
| Product Model |
IPC322LB-DSF28K-G |
||||
| Camera |
|||||
| Sensor |
1/2.7 Inch, 2.0 megapixel, progressive scan, CMOS |
||||
| Minimum Illumination |
Colour: 0.01Lux (F2.0, AGC ON) |
||||
| Day/Night |
IR-cut filter with auto switch (ICR) |
||||
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||
| Adjustment Angle |
Pan: 3° to 360°, Tilt: 0° to 68°, Rotate: 3° to 360° |
||||
| S/N |
>52dB |
||||
| WDR |
120dB |
||||
| Lens |
|||||
| Lens Type |
2.8mm and 4.0mm 2.0, Fixed-focal |
||||
| Lens Mount |
M12 |
||||
| Angle Of View (H) |
112.9° |
||||
| Angle Of View (V) |
59.1° |
||||
| Angle Of View (O) |
121.2° |
||||
| DORI Distance |
|||||
| Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
| 2.8 |
42 |
16.8 |
8.4 |
4.2 |
|
| 4.0 |
60 |
24 |
12 |
6 |
|
| Illuminator |
|||||
| IR Range |
Up to 30m (98ft) IR range |
||||
| Wavelength |
850nm |
||||
| IR On/Off Control |
Auto/Manual |
||||
| Video |
|||||
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
||||
| Frame Rate |
Main Stream: 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps |
||||
| Video Bit Rate |
128 Kbps~6144 kbps |
||||
| U-Code |
Supported |
||||
| 9:16 Corridor Mode |
Supported |
||||
| OSD |
Up to 4 OSDs |
||||
| Privacy Mask |
Up to 4 areas |
||||
| ROI |
Up to 8 areas |
||||
| Motion Detection |
Up to 4 areas |
||||
| Image |
|||||
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
| Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
||||
| Digital Noise Reduction |
2D/3D DNR |
||||
| Smart IR |
Supported |
||||
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
||||
| HLC |
Supported |
||||
| BLC |
Supported |
||||
| Defog |
Digital Defog |
||||
| Audio |
|||||
| Audio Compression |
G.711 |
||||
| Suppression |
Supported |
||||
| Sampling Rate |
8KHZ |
||||
| Storage |
|||||
| Edge Storage |
Micro SD, up to 128GB |
||||
| Network Storage |
ANR,NAS(NFS) /font> |
||||
| Network |
|||||
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP |
||||
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
||||
| User/Host |
Up to 32 users. 2 user levels: administrator and common user |
||||
| Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
||||
| Client |
EZStation |
||||
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
|||||
| Interface |
|||||
| Network |
10/100M Base-TX Ethernet |
||||
| General |
|||||
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
||||
| Power consumption: Maximum 5.0W |
|||||
| Power Interface |
Ø 5.5mm coaxial power plug |
||||
| Material |
Metal + Plastic |
||||
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||
| Surge Protection |
4KV |
||||
| Ingress Protection |
Ingression protection: IP67 |
||||
| Colour |
White |
||||
| Warranty |
As Per Manufacturer Terms and Condition |
||||
OtherDetails
| Dimension (MM) Ø x H |
Φ109 x 81 |
| Unit Of Measurement |
1 Piece |
| Weight |
0.36 kg |
| Generic Name |
Dome Camera |
| Manufacturer Details |
Zhejiang Uniview Technologies Building No.10,Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051) |
| Packer Details |
UNIVIEW TECHNOLOGY (I) PVT LTD. No.3, Sunguvar street,Chindatripet,Chennai-600002. Phone : 044 - 40019039 |
| Country Of Origin |
China |
