Out of Stock!
SKU # 1000129231

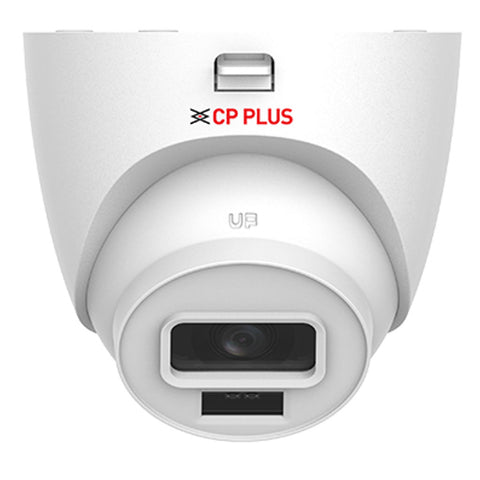

CP Plus 2 MP Full HD IR Network Dome Camera 30 Mtr CP-UNC-DA21PL3-Y
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/3.2” 2MP PS CMOS Image Sensor (0.7937cm)
-
Maximum 2MP (1920 × 1080) @25/30fps
-
Instastream, H.265 and Smart H.264+ dual-stream encoding
-
DWDR, Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
-
3.6mm fixed lens
-
IR Range of 30 Mtrs, IP67, PoE
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
| Brand | CP Plus |
| Product Type | Dome Camera |
| Product Code | CP-UNC-DA21PL3-Y |
| Image Sensor | 1/3.2” 2MP PS CMOS Image Sensor (0.7937cm) |
| Minimum Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W,30 IRE) 0 lux (IR on) |
| Effective Pixels | 1920(H) x 1080(V) |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Lens | 3.6mm |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Maximum Aperture | F2.0 |
| Iris Control | Fixed |
| Close Focus Distance | 0.8m |
| DORI Distance | 55m (Detect) 22m (Observe) 11m (Recognize) 5.5m (Identify) |
| Gain Control (AGC) | Auto/Manual |
| Video Compression | H.265/Smart H.264+/H.264/ H.264B/ MJPEG (only supported by the sub stream) |
| Encode Strategy | Instastream |
| Angle Of View | H: 79°; V: 43°; D: 94° |
| Back Light Compensation | BLC / HLC / DWDR |
| S/N Ratio | >56dB |
| Video Streaming | Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1– 30 fps) The values above are the Maximum frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Mirror | Support |
| Motion Detection | Off / On (4 area, Rectangle) |
| Privacy Mask | 4 areas |
| ICR | Auto(ICR)/Color/B/W |
| ROI | Support (4 areas) |
| Video Bit Rate | H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbp |
| Noise Reduction | 3D-DNR |
| Bit Rate Control | CBR/VBR |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; Instaon cloud, ONVIF (Profile S; Profile T); CGI |
| Image Rotation | 0°/180° |
| Ethernet | RJ-45 (10/100Base-T) |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception |
| Cyber Security | Configuration encryption; Trusted execution; Digest; Security logs; HTTPS; Trusted upgrade; WSSE; Trusted boot; Account lockout; Generation and importing of X.509 certification; Video encryption |
| Smart Phone | iPhone, iPad, Android Phone |
| User/Host | 6 Users (Total bandwidth: 24 Mbps) |
| IR Distance | IR Range of 30 Mtr Smart IR |
| No Of IR LEDs | 2 (IR LEDs) |
| Browser | IE, Chrome, Firefox |
| Edge Storage | FTP |
| Operating Temperature | 40°C to +50°C (-40 °F to +122 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | -40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Power Source | DC12V, PoE |
| Power Consumption | Basic: 1.2 W (12 VDC); 2.1 W (PoE) Maximum (ICR switch+ IR intensity): 2.8 W (12 VDC); 4 W (PoE) |
| Weatherproof Standard | IP67 |
| Casing | Plastic |
| Dimension | 103.2 × Φ109.9 mm |
| Weight | 0.24 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.7 x 9.5 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.319 kg |
| Generic Type | Dome Camera |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
