SKU # 1000118251

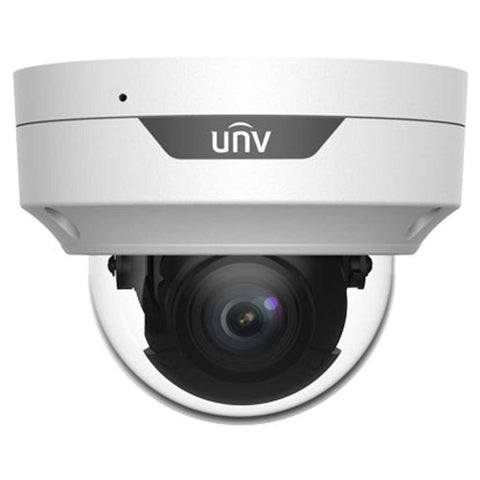

UNV Vandal HD IR Varifocal Dome Network Camera 2MP IPC3532LB-ADZK-G
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High quality image with 2MP, 1/2.7"CMOS sensor
-
2MP (1920x1080) 30/25fps; 720P (1280x720) 30/25fps
-
Ultra 265, H.265, H.264, MJPEG
-
120dB true WDR technology enables clear image in strong light scene
-
Support 9:16 Corridor Mode
-
Built-in Mic
-
Smart IR, up to 40m (131ft) IR distance
-
Supports 128 G Micro SD card
-
IK10 vandal resistant
-
IP67 protection
-
Support PoE power supply
-
3-Axis
Product Specification
| Brand | UNV | ||||
| Product Type | Dome Camera | ||||
| Product Model | IPC3532LB-ADZK-G | ||||
| Camera | |||||
| Sensor | 1/2.7 Inch, 2.0 megapixel, progressive scan, CMOS | ||||
| Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON) | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment Angle | Pan: 3° to 360°, Tilt: 0° to 70°, Rotate: 3° to 360° | ||||
| S/N | >52dB | ||||
| WDR | 120dB | ||||
| Lens | |||||
| Lens Type | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||
| Lens Mount | Φ14 | ||||
| Angle Of View (H) | 108.05°~ 32.59° | ||||
| Angle Of View (V) | 56.81°~ 18.36° | ||||
| Angle Of View (O) | 111.91°~36.53° | ||||
| DORI Distance | |||||
| Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 42.0 | 16.8 | 8.4 | 4.2 | |
| 12 | 180.0 | 72.0 | 36.0 | 18.0 | |
| Illuminator | |||||
| IR Range | Up to 40m (131ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps | ||||
| Video Bit Rate | 128 Kbps~6144 kbps | ||||
| U-Code | Support | ||||
| 9:16 Corridor Mode | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Interface | |||||
| Network | 1xRJ45 10M/100M Base-TX Ethernet | ||||
| Built-In Mic | Supported | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Maximum 7.5W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 6KV | ||||
| Reset Button | Supported | ||||
| Ingress Protection | Ingression protection: IP67 | ||||
| Colour | White | ||||
| Warranty | As Per Manufacturer Terms and Condition | ||||
Other Details
| Dimension (MM) Ø x H | Φ128 x 100 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.66 kg |
| Generic Name | Dome Camera |
| Manufacturer Details | Zhejiang Uniview Technologies Building No.10,Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051) |
| Packer Details | UNIVIEW TECHNOLOGY (I) PVT LTD. No.3, Sunguvar street,Chindatripet,Chennai-600002. Phone : 044 - 40019039 |
| Country Of Origin | China |
