SKU # 1000118256

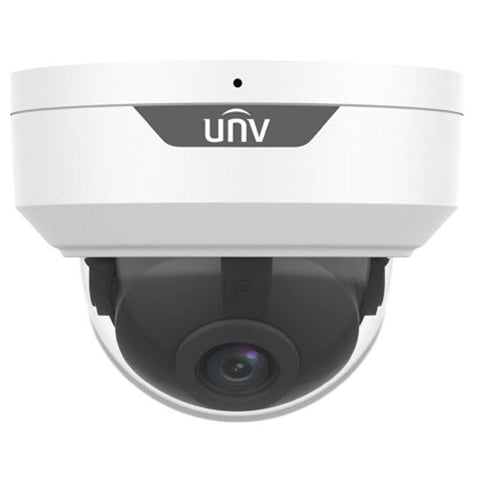

UNV HD Vandal-Resistant IR Fixed Dome Network Camera 5MP IPC325LE-ADF28K-G
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High quality image with 5MP, 1/2.7"CMOS sensor
-
5MP (2880x1620) 25/20fps; 4MP (2560x1440) 25/20fps; 3MP (2304x1296) 30/25fps; 2MP (1920x1080) 30/25fps
-
Ultra 265, H.265, H.264, MJPEG
-
Easystar technology ensures high image quality in low illumination environment
-
120dB true WDR technology enables clear image in strong light scene
-
Support 9:16 Corridor Mode
-
Built-in Mic
-
Smart IR, up to 30m (98ft) IR distance
-
Supports 256 G Micro SD card
-
IK10 vandal resistant
-
IP67 protection
-
Support PoE power supply
-
3-Axis
Product Specification
| Brand | UNV | ||||
| Product Type | Dome Camera | ||||
| Product Model | IPC325LE-ADF28K-G | ||||
| Camera | |||||
| Sensor | 1/2.7 Inch, 5.0 megapixel, progressive scan, CMOS | ||||
| Minimum Illumination | Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment Angle | Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Iris | 2.8mm F1.6 | ||||
| Lens Mount | Fixed | ||||
| Angle Of View (H) | 112.9° | ||||
| Angle Of View (V) | 59.1° | ||||
| Angle Of View (D) | 121.2° | ||||
| DORI Distance | |||||
| Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |
| Illuminator | |||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 5MP (2880x1620), Max 25fps;4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps; | ||||
| Video Bit Rate |
128 Kbps~16 Mbps | ||||
| U-Code | Support | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Video Stream | Dual streams | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Cross line, intrusion(based on human body detection) | ||||
| Motion detection, Ultra motion detection, tampering alarm, audio detection | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||
| Interface | |||||
| Network | 1xRJ45 10M/100M Base-TX Ethernet | ||||
| Built-In Mic | Supported | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Maximum 4.5W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Colour | White | ||||
| Warranty | As Per Manufacturer Terms and Condition | ||||
Other Details
| Dimension (MM) Ø x H | Φ109 x 83 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.36 kg |
| Generic Name | Dome Camera |
| Manufacturer Details | Zhejiang Uniview Technologies Building No.10,Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051) |
| Packer Details | UNIVIEW TECHNOLOGY (I) PVT LTD. No.3, Sunguvar street,Chindatripet,Chennai-600002. Phone : 044 - 40019039 |
| Country Of Origin | China |
