SKU # 1000118245

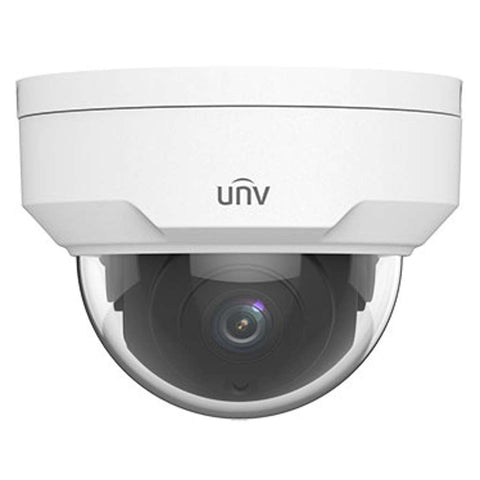

UNV Vandal-Resistant Network IR Fixed Dome Camera 2MP IPC322LB-SF28-A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High quality image with 2MP, 1/2.8"CMOS sensor
-
2MP (1920x1080)@30/25fps; 720P (1280x720)@30/25fps
-
Ultra 265, H.265, H.264
-
Smart IR, up to 30m (98ft) IR distance
-
Day/night functionality
-
2D/3D DNR (Digital Noise Reduction)
-
IP67 protection
-
IK10 vandal resistant
-
Support PoE power supply
-
2-Axis
Product Specification
| Brand |
UNV |
|||||
| Product Type |
Dome Camera |
|||||
| Product Model |
IPC322LB-SF28-A |
|||||
| Camera |
||||||
| Sensor |
1/2.8 Inch, 2.0 megapixel, progressive scan, CMOS |
|||||
| Lens |
2.8mm F2.0 |
|||||
| DORI Distance |
||||||
| Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
||
| 2.8 |
43.4 |
17.4 |
8.7 |
4.3 |
||
| 4.0 |
62.1 |
24.8 |
12.4 |
6.2 |
||
| Angle Of View (H) |
106.7° |
|||||
| Angle Of View (V) |
57.1° |
|||||
| Adjustment Angle |
Pan: 3° ~ 360° |
Tilt: 0° ~ 75° |
||||
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
|||||
| Minimum Illumination |
Colour: 0.01Lux (F2.0, AGC ON) |
|||||
| Day/Night |
IR-cut filter with auto switch (ICR) |
|||||
| Digital Noise Reduction |
2D/3D DNR |
|||||
| S/N |
>52dB |
|||||
| IR Range |
Up to 30m (98ft) IR range |
|||||
| Wavelength |
850nm |
|||||
| IR On/Off Control |
Auto/Manual |
|||||
| Defog |
Digital Defog |
|||||
| WDR |
DWDR |
|||||
| Video |
||||||
| Video Compression |
Ultra 265, H.265, H.264 |
|||||
| H.264 Code Profile |
Baseline profile, Main profile, High profile |
|||||
| Frame Rate |
Main Stream: 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps |
|||||
| Video Bit Rate |
128 Kbps~16 Mbps |
|||||
| OSD |
Up to 4 OSDs |
|||||
| Privacy Mask |
Up to 4 areas |
|||||
| ROI |
Up to 8 areas |
|||||
| Motion Detection |
Up to 4 areas |
|||||
| Image |
||||||
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|||||
| Digital Noise Reduction |
2D/3D DNR |
|||||
| Smart IR |
Supported |
|||||
| Flip |
Normal/Vertical/Horizontal/180° |
|||||
| HLC |
Supported |
|||||
| BLC |
Supported |
|||||
| Network |
||||||
| Protocols |
IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP |
|||||
| Compatible Integration |
API |
|||||
| Client |
EZStation |
|||||
| Web Browser |
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
|||||
| Interface |
||||||
| Network |
10/100M Base-TX Ethernet |
|||||
| General |
||||||
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|||||
| Power consumption: Maximum 5.0W |
||||||
| Material |
Metal + Plastic |
|||||
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||||
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||||
| Surge Protection |
4KV |
|||||
| Ingress Protection |
IP67 |
|||||
| Colour |
White |
|||||
| Warranty |
As Per Manufacturer Terms and Condition |
|||||
Other Details
| Dimension (MM) Φ x H |
Φ109 x 81 |
| Unit Of Measurement |
1 Piece |
| Weight |
0.35 kg |
| Generic Name |
Dome Camera |
| Manufacturer Details |
Zhejiang Uniview Technologies Building No.10,Wanlun Science Park, Jiangling Road 88, Binjiang District, Hangzhou, Zhejiang, China (310051) |
| Packer Details |
UNIVIEW TECHNOLOGY (I) PVT LTD. No.3, Sunguvar street,Chindatripet,Chennai-600002. Phone : 044 - 40019039 |
| Country Of Origin |
China |
