SKU # 1000118076

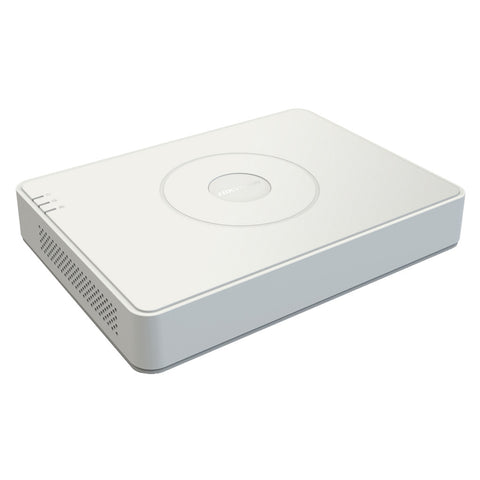

Hikvision Value Series AcuSense Mini DVR 16CH 1080p IDS-7116HQHI-M1/s

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Deep learning-based motion detection 2.0 for all analog channels
-
Deep learning-based perimeter protection
-
Efficient H.265 pro+ compression technology
-
Encoding ability up to 1080p @ 15 fps
-
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
-
Up to 24 network cameras can be connected
Product Specification
| Brand | Hikvision |
| Product Type | DVR |
| Product Code | IDS-7116HQHI-M1/s |
| Series | Value |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite Mode Not Enabled: 720p/Wd1/4cif/Vga/Cif When 1080p Lite Mode Enabled: 1080p Lite/Hd 720p Lite/Wd1/4cif/Vga/Cif |
| Frame Rate | Main Stream:When 1080p Lite Mode Not Enabled: Sub-Stream: |
| Video Bitrate | 32 Kbps To 4 Mbps |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video And Audio | |
| IP Video Input | 2-Ch (up To 10-Ch) Up To 5 Mp Resolution Support H.265+/H.265/H.264+/H.264 IP Cameras |
| Analog Video Input | 8-Ch Bnc Interface (1.0 Vp-P, 75 Ω), Supporting Coaxitron Connection |
| Ahd Input | 1080p25, 1080p30, 720p25, 720p30 |
| Hdcvi Input | 1080p25, 1080p30, 720p25, 720p30 |
|
Hdmi Output
| 1-Ch, 1920 × 1080/60hz, 1280 × 1024/60hz, 1280 × 720/60hz, 1024 × 768/60hz Hdmi/Vga Simultaneous Output |
| VGA Output | 1-Ch, 1920 × 1080/60hz, 1280 × 1024/60hz, 1280 × 720/60hz, 1024 × 768/60hz |
| CVBS Input | Support |
| Synchronous Playback | 8-Ch |
| Audio Output | 1-Ch, Rca (linear, 1 KΩ) |
| Audio Input | 1-Ch Rca (2.0 Vp-P, 1 KΩ) 8-Ch Via Coaxial Cable |
| Two-Way Audio | Reuse The First Audio Input |
| Network | |
| Remote Connection | 64 |
| Network Protocol | Tcp/IP, Pppoe, Dhcp, Hik-Connect, Dns, Ddns, Ntp, Sadp, Smtp, Nfs, Iscsi, Upnptm, Https |
| Network Interface | 1, Rj45 10/100 Mbps Self-Adaptive Ethernet Interface |
| Auxiliary Interface | |
| Sata | 1 Sata Interface |
| Capacity | Up To 4 Tb Capacity For Each Disk |
| Usb Interface | Rear Panel: 2 × Usb 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 Vdc,1.5 A |
| Consumption | ≤ 17 W |
| Working Temperature | -10 °c To 55 °c (14 °f To +31 °f) |
| Working Humidity | 10% To 90% |
| Warranty | As Per Manufacturer Terms And Condition |
Other Details
| Dimension (CM) - L x B x H | 260 × 222 × 45 Mm |
| Unit of Measurement | 1 Piece |
| Weight | 1 kg |
| Generic Type | 16 Channel DVR |
| Manufacturer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
| Packer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
| Country of Origin | India |
