Out of Stock!
SKU # 1000118077

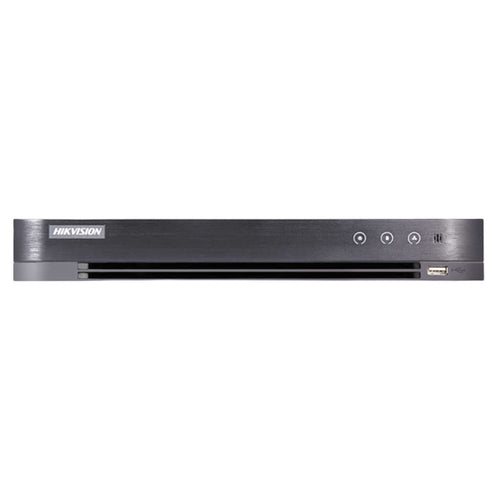

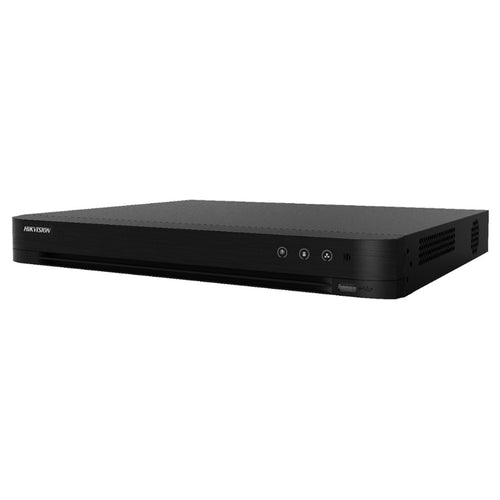

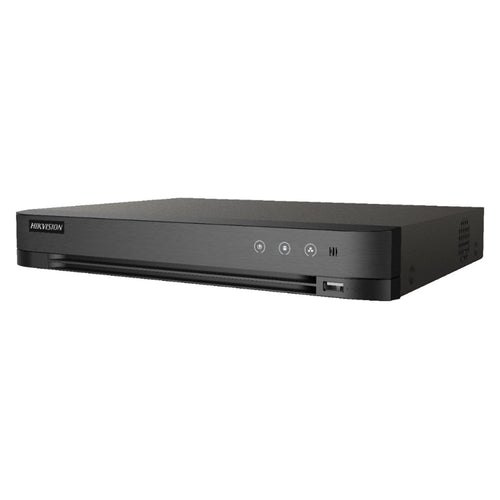

Hikvision Pro Series AcuSense DVR 5MP 16CH IDS-7216HUHI-M2/s
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Deep learning-based motion detection 2.0 for all analog channels
-
Deep learning-based perimeter protection
-
Efficient H.265 pro+ compression technology
-
Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
-
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
-
Up to 32 network cameras can be connected
Product Specification
| Brand | Hikvision |
| Product Type | DVR |
| Product Code | IDS-7216HUHI-M2/s |
| Series | Pro |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite Mode Not Enabled: 720p/Wd1/4cif/Vga/Cif When 1080p Lite Mode Enabled: 1080p Lite/Hd 720p Lite/Wd1/4cif/Vga/Cif |
| Frame Rate | Main stream: 8 MP@8 fps/5 MP@12 fps/3K@12 fps/4MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video And Audio | |
| IP Video Input | 8-ch (up to 24-ch) Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 16-ch BNC interface (1.0 V -p, 75 Ω), supporting coaxitron connection |
| AHD Input | 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI Input | 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| Synchronous Playback | 16-ch |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Input | 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ) 16-ch via coaxial cable |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Network | |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Auxiliary Interface | |
| Sata | 2 SATA interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| Usb Interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Alarm In/Out | N/A (optional to support) |
| General | |
| Power Supply | 12 Vdc,1.5 A |
| Consumption | ≤ 17 W |
| Working Temperature | -10 °c To 55 °c (14 °f To +31 °f) |
| Working Humidity | 10% To 90% |
| Warranty | As Per Manufacturer Terms And Condition |
Other Details
| Dimension (CM) - L x B x H | 380 × 320 × 48 mm |
| Unit of Measurement | 1 Piece |
| Weight | 2.1 kg |
| Generic Type | 16 Channel DVR |
| Manufacturer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
| Packer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
| Country of Origin | India |
