SKU # 1000011988

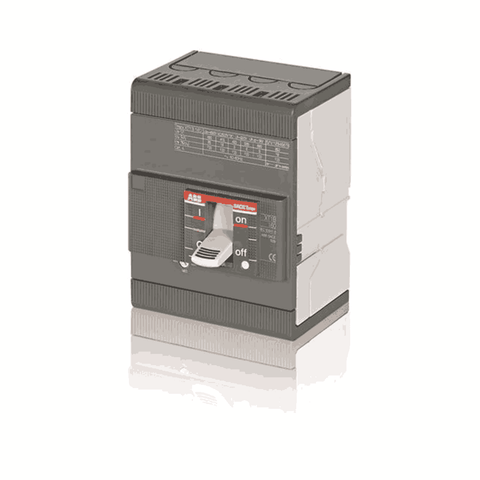

ABB MCCB 1SDA068209R1 Tmax switch disconnectors Fixed 2kA Four pole  - XT1D 160 4p F F

ABB MCCB 1SDA068209R1 Tmax switch disconnectors Fixed 2kA Four pole - XT1D 160 4p F F


₹ 8,040.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Switch-Disconnector Tmax Xt1d 160 Fixed Four-Pole With Front Terminals

  • High breaking capacity in compact dimensions

  • High values of short circuit breaking capacity are guaranteed at different voltage levels, without compromising overall dimensions.

  • Flexibility of use

  • Thermomagnetic and electronic trip units are available for use in AC/DC or in AC only. It is possible to interchange trip units keeping the same breaking part, so that installation can be upgraded with fewer costs.

  • Advanced protection

  • A complete range of electronic trip units is suitable for different level of protection, even enhancing selectivity values with Early Fault Detection and Prevention algorithm.

Product Specification

Brand

ABB

Product Name

Moulded Case Circuit Breaker

Model

XT1D 160 4p F F

Product Main Type

SACE Tmax XT

Product Net Width

130mm

Product Net Height

130mm

Product Net Depth / Length

70mm

Product Net Weight

1.4kg

Rated Voltage (Ur)

690 V

Rated Operational Voltage

690 V AC ,500 V DC

Rated Frequency (f)

50 / 60 Hz

Terminal Connection Type

Fixed Circuit-Breakers Front

Power Loss

at Rated Operating Conditions per Pole 16,5 W

Rated Impulse Withstand Voltage (Uimp)

8 kV

Rated Insulation Voltage (Ui)

800 V
