Available

SKU # 1000005876

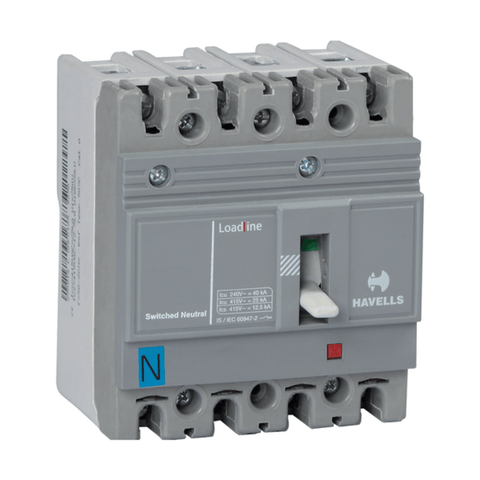

Havells Fixed Thermal and Magnetic Mccb with Four Pole GS Frame 10kA

₹ 1,968.00

Quantity

Min Qty : 1

Delivery Availability

Product Description:

Overload Setting is Fixed and Short Circuit Setting is minimum 10 times of Rated Current.

Compact Size & Double Insulation

Space saving in the Panel and has the conductive path insulated with double shield i.e. Cover & Facia

Suitable for Switch Disconnector Purpose

Can be used as an Isolator

In 4Pwsn version, Neutral makes first & breaks last

Provision for addressing Residual Current in the Circuit.

Provision of Push to tip button

It is an alternate means to Trip the Breaker and also helps in checking the health of the Breaker.

Uniform front Escutcheon plate

Common Door Cut-out Facility provided lending Uniformity

Positive dolly position indication

Depicts the ON/OFF status of the breaker

Suitable for DC application

Offers choice of system usage

Wide range of accessories available

Allows precise monitoring & control of circuit with the help of varied Internal & External Accessories

Product Specification:

Standard conformity: IEC 60947-2/IS:13947-2

Rated operational voltage: 500V AC

Rated Insulation Voltage: 750V AC

Type of Release: Thermomagnetic

Utilisation Category: A

Rated frequency: 50/60Hz

Ambient temp: 400C (500C on request)

Operating altitude: 2000 metres

Humidity: 0 - 90%

Rated impulse voltage: 8 kV

Rating Range: 25A - 160A

Type of Release: Fixed Type

No. of Poles: Four

Breaking Capacity: Icu = 10kA, Ics = 100% of Icu

Note: # Extended Terminals:In G-Frame from (80A to 160A)

Breaking Capacity Icu at 415V (kA)

Current Rating (A)

Frame

Cat. No.


10

25


GS

IHLGSF0025

32

IHLGSF0032

40

IHLGSF0040

50

IHLGSF0050

63

IHLGSF0063

80

IHLGSF0080 #

100

IHLGSF0100 #

125

IHLGSF0125 #

150

IHLGSF0150 #

160

IHLGSF0160 #
