Available

SKU # 1000012449

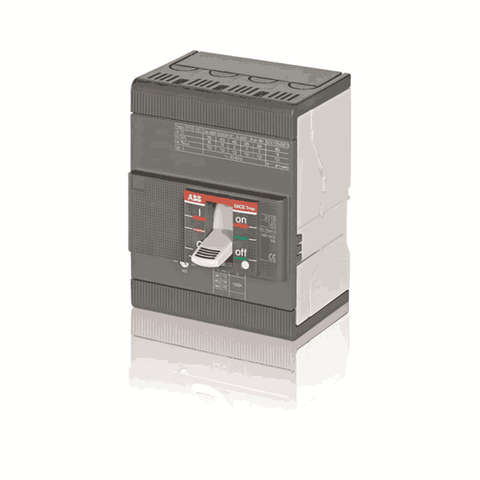

ABB XTMax MCCB  16-160A 50KA  415V Ac Four-Pole – XT1S 160 4p

ABB XTMax MCCB 16-160A 50KA 415V Ac Four-Pole – XT1S 160 4p


₹ 9,665.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • C.Breaker Tmax XT1S 160 Fixed Four-Pole With Front Terminals And Thermomagnetic Release TMF

  • Moulded-case circuit-breakers can be used in low voltage civil and industrial installations with 1 to 3200 A operating current.

  • The ultimate short-circuit breaking capacity (Icu) at 415V ranges from 18kA to 200kA, or up to 100kA for 690V.

  • Product Name : Moulded Case Circuit Breaker

  • Product Main Type : SACE Tmax XT

  • Product Type : CB

  • Number of Poles : 4

  • Product Net Weight : 1.4 kg

  • Product Net Width : 101.6 mm

  • Product Net Height : 130 mm

  • Product Net Depth / Length : 70 mm

  • Rated Operational Voltage:690 V AC , 500 V DC

  • Electrical Durability : 120 cycles per hour , 8000 cycle

  • Mechanical Durability : Nr. Operations 240 cycles per hour, Nr. Operations 25000 cycle

  • Terminal Connection Type : Fixed Circuit-Breakers Front

  • Standards:IEC

  • Version : F

Product Specification

Rated current

Type

Product id

16 A

1SDA080845R1

XT1S 160 TMF 16-450 4p F F

20 A

1SDA080846R1

XT1S 160 TMF 20-450 4p F F

25 A

1SDA080847R1

XT1S 160 TMD 25-450 4p F F

32 A

1SDA080848R1

XT1S 160 TMD 32-450 4p F F

40 A

1SDA080849R1

XT1S 160 TMD 40-450 4p F F

50 A

1SDA067439R1

XT1S 160 TMD 50-500 4p F F

63 A

1SDA067440R1

XT1S 160 TMD 63-630 4p F F

80 A

1SDA067441R1

XT1S 160 TMD 80-800 4p F F

100 A

1SDA067442R1

XT1S 160 TMD 100-1000 4p F F

125 A

1SDA067445R1

XT1S 160 TMD 125-1250 4p F F InN=100%

160 A

1SDA067446R1

XT1S 160 TMD 160-1600 4p F F InN=100%
