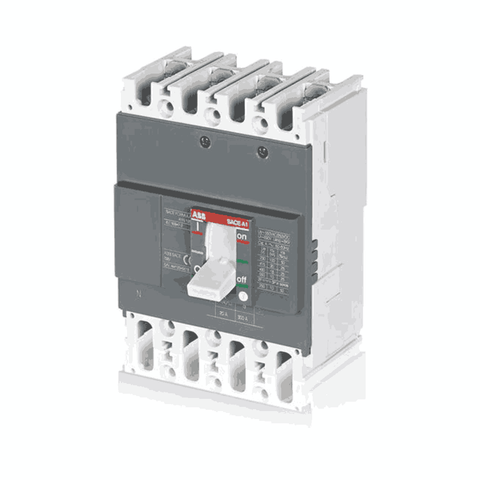

ABB  Formula MCCB 16-125 A 36 KA Four-Pole – A1N 125 TMF 4p

ABB Formula MCCB 16-125 A 36 KA Four-Pole – A1N 125 TMF 4p


₹ 8,670.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • C.Breaker Formula A1N 125 Fixed Four-Pole With Front Terminals And Thermomagnetic Release Tmf

  • The FORMULA link is characterised on the supply side by a main circuit-breaker which protects the whole distribution

  • FORMULA link assembly for total discrimination between upstream and downstream devices

  • Suitable for DC application till 250Vdc

  • Operation voltage till 550VAC, insulation voltage of 690VAC and impulse voltage of 6KV

  • Product Net Width : 101.6 mm

  • Product Net Height : 130 mm

  • Product Net Depth / Length : 60 mm

  • Product Net Weight : 0.925 kg

  • Number of Poles : 4

  • Power Loss : at Rated Operating Conditions per Pole 6 W

  • Product Main Type : SACE FORMULA

  • Product Name : Moulded Case Circuit Breaker

  • Product Type : CB

  • Version : F

  • Electrical Durability : 1500 cycle

  • Mechanical Durability : Nr. Operations 8500 cycle

  • Terminal Connection Type : Front

Product Specification

Rated current

Type

Product id

16 A

1SDA068753R1

A1N 125 TMF 16-300 4p F F

25 A

1SDA066759R1

A1N 125 TMF 25-300 4p F F

32 A

1SDA068764R1

A1N 125 TMF 32-320 4p F F

40 A

1SDA066761R1

A1N 125 TMF 40-400 4p F F

50 A

1SDA066762R1

A1N 125 TMF 50-500 4p F F

63 A

1SDA068775R1

A1N 125 TMF 63-630 4p F F

80 A

1SDA066765R1

A1N 125 TMF 80-800 4p F F

100 A

1SDA066767R1

A1N 125 TMF 100-1000 4p F F

125 A

1SDA066768R1

A1N 125 TMF 125-1250 4p F F


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

4 Pole MCCB

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
