Available

SKU # 1000012461

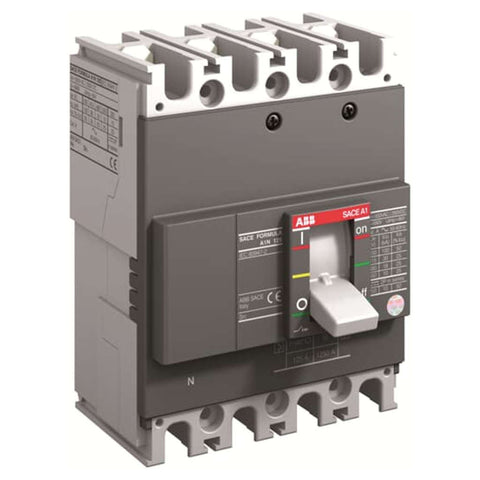

ABB Formula MCCB  18KA 16-125A Four-Pole -  A1B 125 TMF 4p

ABB Formula MCCB 18KA 16-125A Four-Pole - A1B 125 TMF 4p


₹ 5,340.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • C.Breaker Formula A1B 125 Fixed Four-Pole With Front Terminals And Thermomagnetic Release Tmf

  • The FORMULA link is characterized on the supply side by a main circuit-breaker which protects the whole distribution system, and on the load side by smaller sized circuit breakers, dedicated to the individual users.

  • FORMULA link assembly for total discrimination between upstream and downstream devices

  • Fixed thermal magnetic release throughout the range

  • Conforms to IEC 60947-2

  • Common range of accessories

  • Suitable for DC application till 250Vdc

  • Operation voltage till 550VAC, insulation voltage of 690VAC and impulse voltage of 6KV

  • Product Name : Moulded Case Circuit Breaker

  • Product Main Type : SACE FORMULA

  • Product Type : CB

  • Number of Poles : 4

  • Product Net Weight :0.925 kg

  • Product Net Width : 101.6 mm

  • Product Net Height :130 mm

  • Product Net Depth / Length : 60 mm

  • Electrical Durability : 1500 cycle

  • Mechanical Durability : Nr. Operations 8500 cycle

  • Terminal Connection Type : Front

  • Version : F

Product Specification

Rated current

Type

Product id

16 A

1SDA068751R1

A1B 125 TMF 16-300 4p F F

25 A

1SDA066735R1

A1B 125 TMF 25-300 4p F F

32 A

1SDA068762R1

A1B 125 TMF 32-320 4p F F

40 A

1SDA066737R1

A1B 125 TMF 40-400 4p F F

50 A

1SDA066738R1

A1B 125 TMF 50-500 4p F F

63 A

1SDA068773R1

A1B 125 TMF 63-630 4p F F

80 A

1SDA066741R1

A1B 125 TMF 80-800 4p F F

100 A

1SDA066743R1

A1B 125 TMF 100-1000 4p F F

125 A

1SDA066744R1

A1B 125 TMF 125-1250 4p F F
