Available

SKU # 1000012480

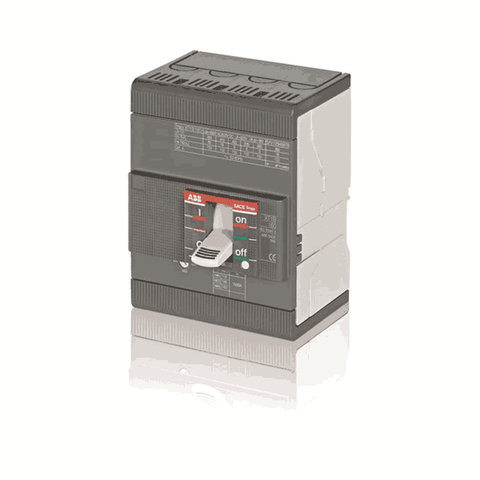

ABB  XTMax MCCB  10-160A 36KA 415V  Four-Pole – XT2N 160 Ekip  4p

ABB XTMax MCCB 10-160A 36KA 415V Four-Pole – XT2N 160 Ekip 4p


₹ 16,450.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • C.Breaker Tmax XT2N 160 Fixed Four-Pole With Front Terminals And Solid-State Release In Ac Ekip-Ls/I R 10-160A

  • Tmax moulded-case circuit-breakers guarantee an extremely high performance level while being progressively smaller in size, simple to install and able to provide increasingly better safety guarantees for the operator.

  • The ultimate short-circuit breaking capacity (Icu) at 415V ranges from 18kA to 200kA, or up to 100kA for 690V.

  • Circuit Breaker Type to be Associated:Power distribution

  • Product Net Width : 120 mm

  • Product Net Height : 130 mm

  • Product Net Depth / Length : 82.5 mm

  • Product Net Weight : 1.6 kg

  • Number of Poles : 4

  • Product Main Type : SACE Tmax XT

  • Product Name : Moulded Case Circuit Breaker

  • Product Type : CB

  • Version : F

  • Electrical Durability : 8000 cycle, 120 cycles per hour

  • Mechanical Durability : Nr. Operations 25000 cycle , Nr. Operations 240 cycles per hour

  • Terminal Connection Type : Fixed Circuit-Breakers Front

Product Specification

Rated current

Type

Product id

10 A

1SDA067090R1

XT2N 160 Ekip LS/I In=10A 4p F F

25 A

1SDA067091R1

XT2N 160 Ekip LS/I In=25A 4p F F

63 A

1SDA067092R1

XT2N 160 Ekip LS/I In=63A 4p F F

100 A

1SDA067093R1

XT2N 160 Ekip LS/I In=100A 4p F F

160 A

1SDA067095R1

XT2N 160 Ekip LS/I In=160A 4pFF InN=100%
