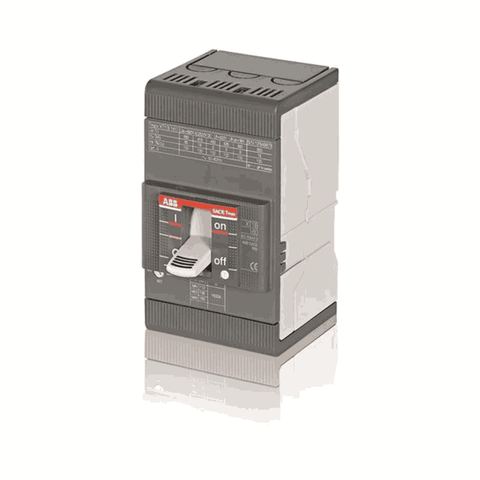

ABB XTMax MCCB 10-160A 36KA  415V AC Four-Pole – XT2N 160 Ekip 3p

ABB XTMax MCCB 10-160A 36KA 415V AC Four-Pole – XT2N 160 Ekip 3p


₹ 15,950.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • C.Breaker Tmax Xt2n 160 Fixed Three-Pole With Front Terminals And Solid-State Release In Ac Ekip-Ls/I R 10 A

  • Tmax moulded-case circuit-breakers guarantee an extremely high performance level while being progressively smaller in size, simple to install and able to provide increasingly better safety guarantees for the operator.

  • Moulded-case circuit-breakers can be used in low voltage civil and industrial installations with 1 to 3200 A operating current.

  • The ultimate short-circuit breaking capacity (Icu) at 415V ranges from 18kA to 200kA, or up to 100kA for 690V.

  • Circuit Breaker Type to be Associated:Power distribution

  • Product Name : Moulded Case Circuit Breaker

  • Product Main Type : SACE Tmax XT

  • Product Type : CB

  • Number of Poles : 3

  • Product Net Weight : 1.2 kg

  • Product Net Width : 90 mm

  • Product Net Height : 130 mm

  • Product Net Depth / Length : 82.5 mm

  • Rated Operational Voltage:690 V AC

  • Electrical Durability : 120 cycles per hour , 8000 cycle

  • Mechanical Durability : Nr. Operations 240 cycles per hour, Nr. Operations 25000 cycle

  • Terminal Connection Type : Fixed Circuit-Breakers Front

  • Standards:IEC

  • Version : F

Product Specification

Rated current

Type

Product id

10 A

1SDA067054R1

XT2N 160 Ekip LS/I In=10A 3p F F

25 A

1SDA067055R1

XT2N 160 Ekip LS/I In=25A 3p F F

63 A

1SDA067056R1

XT2N 160 Ekip LS/I In=63A 3p F F

100 A

1SDA067057R1

XT2N 160 Ekip LS/I In=100A 3p F

160 A

1SDA067058R1

XT2N 160 Ekip LS/I In=160A 3p F F


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

4 Pole MCCB

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
