SKU # 1000139779

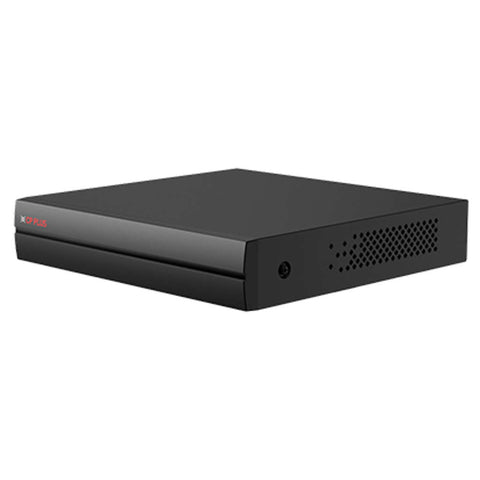

CP Plus 8 Channel Digital Video Recorder 1080N CP-UVR-0808E1-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Supports HDCVI, AHD, TVI, CVBS and IP video input
-
Supports up to 10-channel IP camera input and each channel can be up to 6 MP.
-
The incoming bandwidth reaches 40 Mbps
-
8 Channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
-
Instastream, H.265, H.264+ H.264 dual-stream video compression
-
Mobile Software: iCMOB, gCMOB
-
In some installations, customers have specific features and functions that are available in IP cameras only, such as two-way communication, edge storage, alarm I/O, etc. CP PLUS DVRs provide additional IP camera support to provide flexibility so that the desired solution features can be made accessible
-
Amid rising security challenges such as hacking, phishing, etc., CP PLUS has framed strict policies to increase the security of surveillance systems, in which it makes it mandatory to change the default password to one that is alphanumeric
-
CP PLUS DVRs are equipped with UNI+ technology which supports all HD and analog video formats
-
This helps the user upgrade their systems without requiring major overhauls
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups;InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
The KVMS Pro Lite is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is released with the surveillance hardware and exclusively sup-ports CP PLUS devices
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Digital Video Recorder |
|
Product Model |
CP-UVR-0808E1-I |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded Linux |
|
Analog Camera Input |
BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect |
|
IP Camera Input |
Up to 10 channels of IPC access 2 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled. |
|
Two-Way Talk |
Coaxial two-way talk: 8 Channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
|
User Interface |
Web, Local GUI |
|
Video Output |
1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
Abnormality Alarm |
Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline |
|
SMD By Camera |
10 Channels |
|
Camera Input |
1. CVI: 1080p@25/30 fps; 720p@25/30 fps. 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps |
|
stream Capability |
Dual stream |
|
Video Frame Rate |
Main stream: The 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps), 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps) |
|
Video Display Split |
When IP extension mode not enabled: 1/4/8 When IP extension mode enabled: 1/4/8/9/16 |
|
Record Mode |
General, Alarm, Motion detection |
|
Bit Rate |
32 kbps–4096 kbps |
|
Video Compression |
AI Coding, Instastream, H.265, H.264+, H.264 |
|
Protocols |
HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto connect, ONVIF (Profile T, Profile S, Profile G), CGI, SDK |
|
Audio Input |
1-channel RCA, 8 Channel BNC (Coaxial Audio) |
|
SMD Plus by DVR |
8 Channels: Secondary filtering for human and vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change |
|
Disk Interface |
1 SATA port, up to 6 TB. This limit varies depending on the environment temperature |
|
Browser |
Chrome, IE, Safari, Edge, Firefox |
|
Recording Playback |
1/4/ |
|
Playback Mode |
Instant playback, General playback, Event playback, Tag playback, Smart playback |
|
Backup Mode |
USB device and network |
|
Interface Ports |
2 USB (2 rear USB 2.0 ports) |
|
Ethernet |
1 (10/100 Mbps Ethernet port, RJ-45) |
|
Power Supply |
12 VDC, 1.5 A |
|
Power Consumption |
<7 W (without HDD) |
|
Operating Temperature |
–10°C to +45°C (+14°F to +113°F) |
|
Operating Humidity |
10%–90% (RH), non-condensing |
|
Storage Temperature |
–20°C to +60°C (–4°F to +140°F) |
|
Dimensions(L × W × H) |
197.0 mm × 204.3 mm × 41.5 mm |
|
Weight |
570g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
19.7 x 20.43 x 4.15 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.54 kg |
|
Generic Name |
4 Channel DVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
