SKU # 1000139332

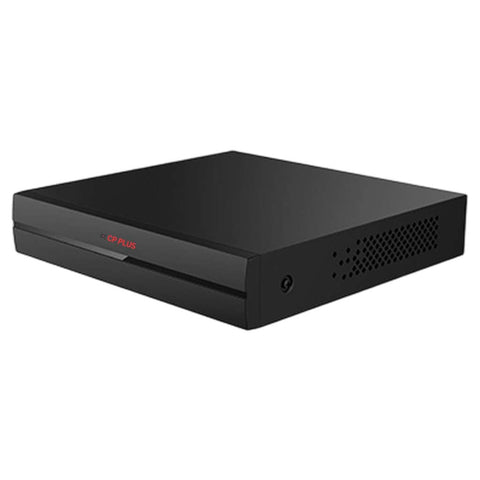

CP Plus 4 Channel Digital Video Recorder 1080N CP-UVR-0401E1-IC2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth
-
Supports Full-channel AI Instastream
-
Support 1 SATA HDD up to 6TB Each, 2 USB Ports
-
Up to 4 channels video stream (analog channel) SMD Plus
-
1 HDMI / 1 VGA Simultaneous Video Output
-
Instastream/H.265 dual-stream video compression
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro Lite
-
Functions
-
Signal Auto-Adapt
-
This DVR recognizes the signal type (CVI, TVI, AHD, CVBI) and automatically adapts without requiring any manual intervention
-
This has provided much ease to the user since signal compatibility was always a towering concern
-
Addnl, IP Cameras Support
-
In some installations, customers have specific features and functions that are available in IP cameras only, such as two-way communication, edge storage, alarm I/O, etc
-
CP PLUS DVRs provide additional IP camera support to provide flexibility so that the desired solution features can be made accessible
-
Secured Password Policy (SPP)
-
Amid rising security challenges such as hacking, phishing, etc., CP PLUS has framed strict policies to increase the security of surveillance systems, in which it makes it mandatory to change
-
the default password to one that is alphanumeric
-
Multi-Signal Support
-
CP PLUS DVRs are equipped with UNI+ technology which supports all HD and analog video formats
-
This helps the user upgrade their systems without requiring major overhauls
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
KVMS Pro Lite
-
The KVMS Pro Lite is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is re-leased with the surveillance hardware and exclusively supports CP PLUS devices
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
DVR |
|
Product Model |
CP-UVR-0401E1-IC2 |
|
Processor |
Embedded processor |
|
Operating System |
Embedded LINUX |
|
IP Camera Input |
4+1 channels, each channel up to 2MP |
|
Two-Way Talk |
Reuse audio in/out, RCA |
|
User Interface |
GUI |
|
Performance SMD Plus |
4 Channels |
|
AI Search SMD |
Search by target classification (Human, Vehicle) |
|
Video Input |
4 channel, BNC |
|
Video Output |
1 HDMI, 1 VGA |
|
Video Compression |
AI Instastream/Instastream/H.265/H.264+/H.264 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Resolution |
1080N; 720P; 960H; D1; CIF |
|
Video Recording |
Main Stream: All channels 1080N/720P/960H/D1/CIF/(1~25/30fps) Sub stream: CIF (1~15 fps) |
|
Video Display Split |
1/4 |
|
Bit Rate |
32 kbps–4096 kbps per channel |
|
Audio Input |
1 channel, RCA |
|
Audio Output |
1 channel, RCA |
|
Audio Sample Rate |
8KHz, 16 bit Per Channel |
|
Audio Bit Rate |
64Kbps Per Channel |
|
Motion Detection |
Support |
|
Video Loss |
Support |
|
Audio Compression |
G.711A, G.711U, PCM |
|
Camera Blank |
Support |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Hard Disk |
1 SATA port, up to 6TB Each |
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
Playback |
1/4 Ch |
|
Recording Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second) |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
|
Backup Mode |
USB Device/Network |
|
Interface Ports |
2 USB Ports (USB 2.0) |
|
Maximum User Access |
128 users |
|
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Ethernet |
1 RJ-45 port (100Mbps) |
|
Protocols |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn cloud; IP Search, ONVIF 16.12, CGI Conformant |
|
Power Supply |
DC12V/1.5A |
|
Power Consumption |
<7W (without HDD) |
|
Working Temp |
-10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% (RH) |
|
Dimension |
198 × 203 × 41.5 mm |
|
Weight |
0.57kg (without HDD) |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
9.7 x 9.5 x 6 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1 kg |
|
Generic Name |
4 Channel DVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
