SKU # 1000139333

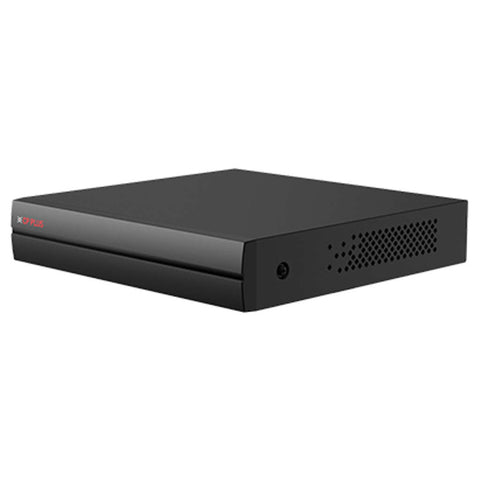

CP Plus 4 Channel Digital Video Recorder CP-UVR-0401F1-IC
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Max 6 channels IP camera inputs, each channel up to 6MP; Max 32Mbps Incoming Bandwidth
-
Supports Full-channel AI-Coding
-
Support 1 SATA HDD up to 6TB Each, 2 USB Ports
-
Up to 4 channels video stream (analog channel) SMD Plus
-
1 HDMI / 1 VGA Simultaneous Video Output
-
Instastream/H.265 dual-stream video compression
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
-
Functions
-
Signal Auto-Adapt
-
This DVR recognizes the signal type (CVI, TVI, AHD, CVBI) and automatically adapts without requiring any manual intervention
-
This has provided much ease to the user since signal compatibility was always a towering concern
-
Addnl, IP Cameras Support
-
In some installations, customers have specific features and functions that are available in IP cameras only, such as two-way communication, edge storage, alarm I/O, etc
-
CP PLUS DVRs provide additional IP camera support to provide flexibility so that the desired solution features can be made accessible
-
Secured Password Policy (SPP)
-
Amid rising security challenges such as hacking, phishing, etc., CP PLUS has framed strict policies to increase the security of surveillance systems, in which it makes it mandatory to change the default password to one that is alphanumeric
-
Multi-Signal Support
-
CP PLUS DVRs are equipped with UNI+ technology which supports all HD and analog video formats
-
This helps the user upgrade their systems without requiring major overhauls
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host
-
of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
KVMS Pro
-
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is re-leased with the surveillance hardware and exclusively supports CP PLUS devices
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
DVR |
|
Product Model |
CP-UVR-0401F1-IC |
|
Processor |
Embedded processor |
|
Operating System |
Embedded LINUX |
|
IP Camera Input |
4+2 channels, each channel up to 6MP |
|
Two-Way Talk |
Reuse audio in/out, RCA |
|
User Interface |
GUI |
|
Performance SMD Plus |
4 Channels |
|
AI Search SMD |
Search by target classification (Human, Vehicle) |
|
Video Input |
4 channel, BNC |
|
Video Output |
1 HDMI, 1 VGA |
|
Video Compression |
Instastream/H.265+/H.265/H.264+/H.264 |
|
Video Resolution |
1920×1080, 1280×1024, 1280×720 |
|
Resolution |
5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF |
|
Video Recording |
Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps) |
|
Video Display Split |
1/4 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Bit Rate |
32 kbps–6144 kbps per channel |
|
Audio Input |
1 channel, RCA |
|
Audio Output |
1 channel, RCA |
|
Audio Sample Rate |
8KHz, 16 bit Per Channel |
|
Audio Bit Rate |
64Kbps Per Channel |
|
Motion Detection |
Support |
|
Video Loss |
Support |
|
Audio Compression |
G.711A, G.711U, PCM |
|
Camera Blank |
Support |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Hard Disk |
1 SATA port, up to 6TB Each |
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
Playback |
1/4 Ch |
|
Recording Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second) |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
|
Backup Mode |
USB Device/Network |
|
Interface Ports |
2 USB Ports (USB 2.0) |
|
Maximum User Access |
128 users |
|
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Ethernet |
1 RJ-45 port (100Mbps) |
|
Protocols |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn; IP Search, ONVIF 16.12, CGI Conformant |
|
Power Supply |
DC12V/1.5A |
|
Power Consumption |
<4W (without HDD) |
|
Working Temp |
-10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% (RH) |
|
Dimension |
198 × 203 × 41.5 mm |
|
Weight |
0.55kg (without HDD) |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
30.5 x 40.6 x 15.2 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1 kg |
|
Generic Name |
4 Channel DVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
