Out of Stock!
SKU # 1000083024

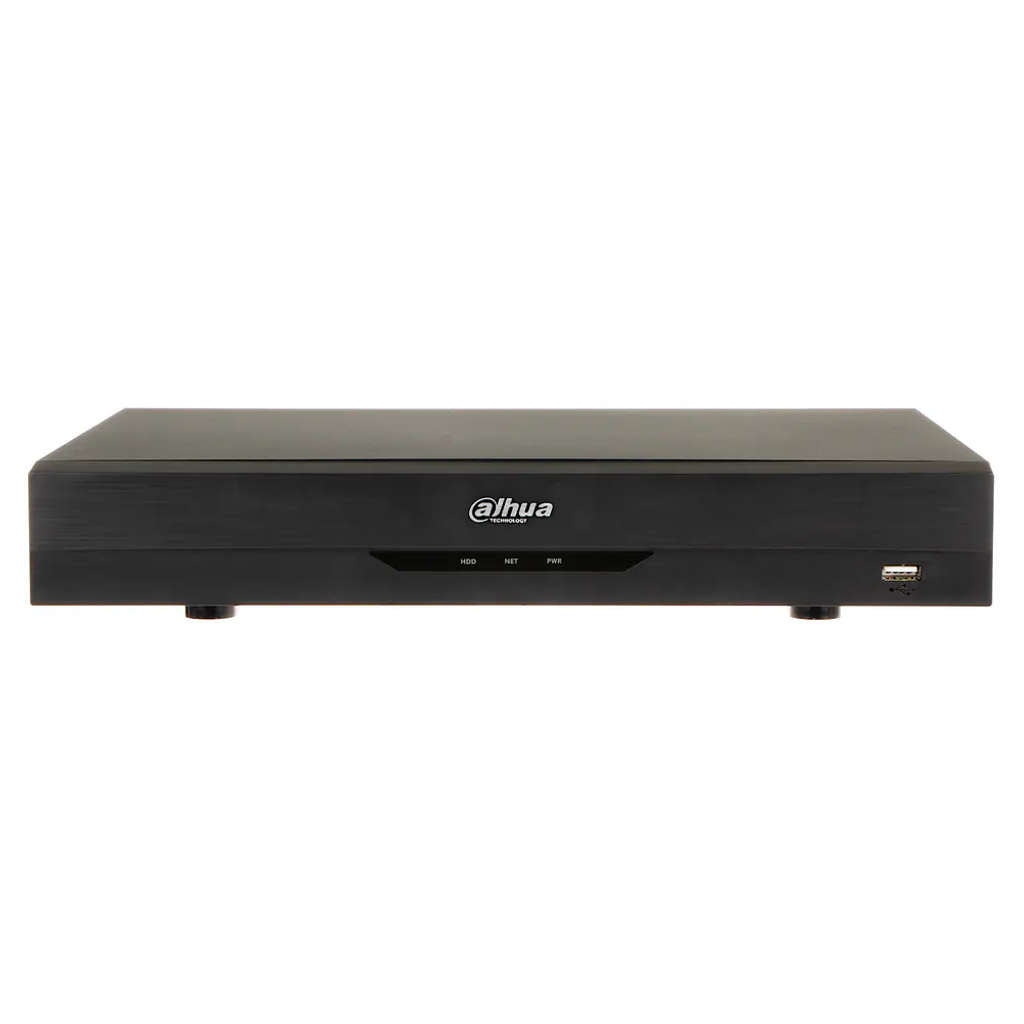

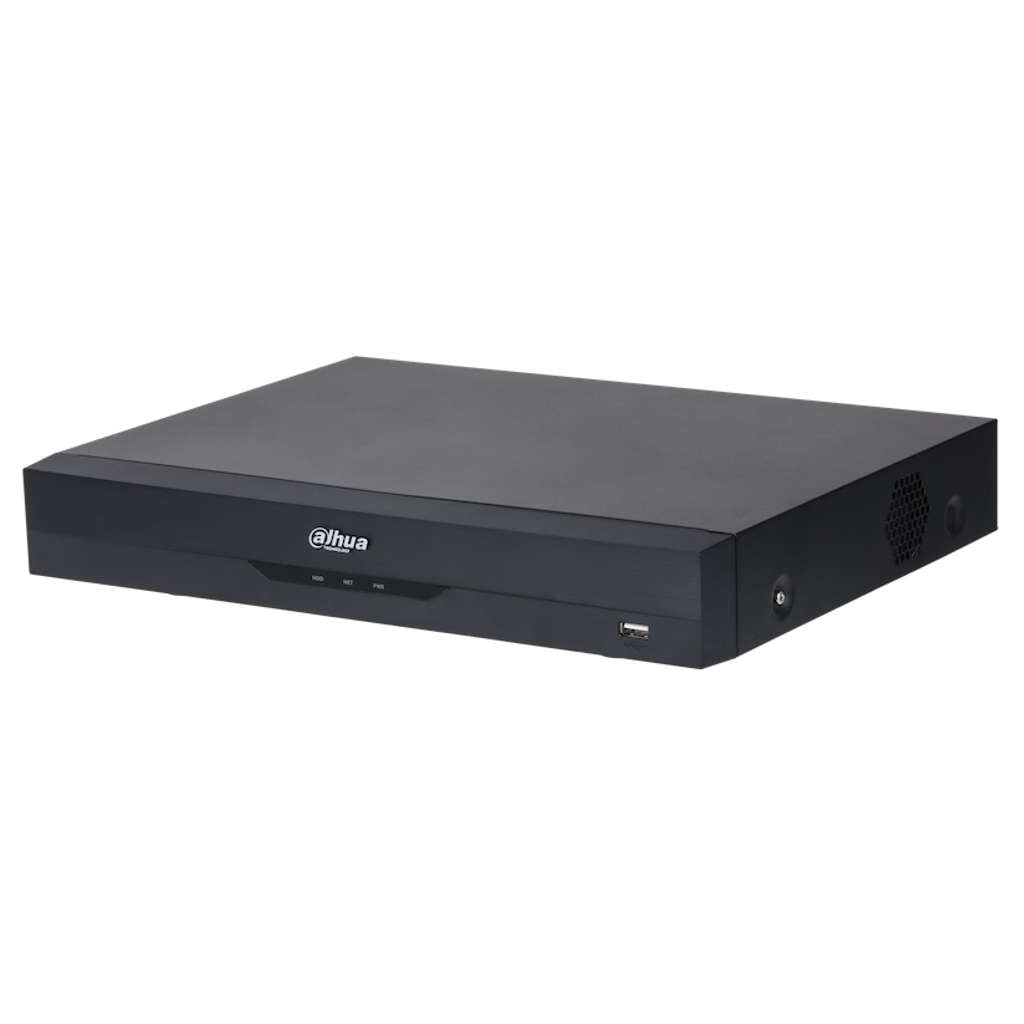

Dahua WizSense Digital Video Recorder 8 Channel DH-XVR5108HE-I3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
H.265+/H.265 dual-stream video compression
-
Supports Full-channel AI-Coding
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth
-
Up to 1 channel video stream ( analog channel ) Perimeter Protection
-
Up to 8 channels video stream ( analog channel ) SMD Plus
-
Up to 1 channel video stream (analog channel ) human face recognition
-
IoT & POS functionalities
-
Functions
-
Real Time Face Recognition
-
Video stream real time face recognition
-
Facial attributes analysis features including gender, age, expression, glasses, moustache, mouth
mask -
Identify people and also capture, record faces with metadata
-
Facial feature filtering while real time display, only show faces with target features
-
Face Recognition takes effect when Face is selected in AI Mode
-
Perimeter Protection
-
Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc
-
Enables system to act secondary recognition for the targets
-
Improving alarm accuracy
-
Perimeter Protection takes effect when IVS&SMD is selected in AI Mode
-
SMD Plus
-
SMD Plus, referred to as Smart Motion Detection Plus, which is an upgrading version of SMD that greatly improves the alarm accuracy by loading deep-learning algorithm
-
It analyzes person and vehicle shapes based on motion detection and send alarms only when person and vehicle intrudes
-
Compared with H.265, AI codec can reduce up to 50% bit rate and storage requirements while have no loss of decoding compatibility providing clear human and vehicle details
-
Smart H.265+
-
Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras
-
HDCVI/AHD/TVI/CVBS Auto-detect
-
The XVR can auto recognize the signal of front-camera without any setting
-
It makes operation more friendly and convenient
-
High Definition Camera Input
-
The XVR supports up to 5MP HDCVI camera and 6MP IP camera input
-
Coaxial Audio/Upgrade/Alarm
-
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation
-
Long Distance Transmission
-
The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p
-
AI Search
-
Extract and classify person and vehicles from massive video data, easy for end users to trace historical informaton and analyze
-
Person & Vehicle optonal for playback to achieve quick target search, saving event retrieval time
Product Specification
|
Brand |
Dahua |
|
Product Type |
DVR |
|
Model |
DH-XVR5108HE-I3 |
|
Series |
WizSense |
|
System |
|
|
Main Processor |
Embedded processor |
|
Operating System |
Embedded linux |
|
Perimeter Protection |
|
|
Performance |
1 channel, 10 IVS for each channel |
|
Object Classification |
Human/Vehicle secondary recognition for tripwire and intrusion |
|
AI Search |
Search by target classification (Human, Vehicle) |
|
Face Recognition |
|
|
Performance |
Max 8 face pictures/sec processing 1 channel video stream face recognition, only support analog camera |
|
Stranger Mode |
Detect strangers' faces (not in device's face database). Similarity threshold can be set manually |
|
AI Search |
Up to 8 target face images search at same time, similarity threshold can be set for each target face image |
|
Database Management |
Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries&regions and state can be added to each face picture |
|
Database Application |
Each database can be applied to video channels independently |
|
Trigger Events |
Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc. |
|
SMD Plus |
|
|
Performance |
8 channels |
|
AI Search |
Search by target classification (Human, Vehicle) |
|
Video And Audio |
|
|
Analog Camera Input |
8 channels, BNC |
|
HDCVI Camera Input |
5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps |
|
AHD Camera Input |
5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps |
|
TVI Camera Input |
5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps |
|
CVBS Camera Input |
PAL/NTSC |
|
IP Camera Input |
8+4 channels, each channel up to 6MP |
|
Audio In/Out |
8/1, RCA |
|
Two-Way Talk |
Reuse audio in/out, RCA |
|
Recording |
|
|
Compression |
AI Coding/H.265+/H.265/H.264+/H.264 |
|
Resolution |
5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF |
|
Record Rate |
Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps) |
|
Bit Rate |
32 kbps–6144 kbps per channel |
|
Record Mode |
Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
|
Record Interval |
1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s |
|
Audio Compression |
G.711A; G.711U; PCM |
|
Audio Sample Rate |
8 KHz, 16 bit per channel |
|
Audio Bit Rate |
64 kbps per channel |
|
Display |
|
|
Interface |
1 HDMI; 1 VGA |
|
Resolution |
1920 × 1080; 1280 × 1024; 1280 × 720 |
|
Multi-Screen Display |
When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
|
OSD |
Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
|
Network |
|
|
Interface |
1 RJ-45 Port (100 MB) |
|
Network Function |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone; iPad; Android |
|
Interoperability |
ONVIF 16.12, CGI Conformant |
|
Video Detection And Alarm |
|
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
|
Alarm input |
8 |
|
Relay Output |
3 |
|
Playback And Backup |
|
|
Playback |
1/4/9 It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode. |
|
Search Mode |
Time/Date, Alarm, MD and Exact Search (accurate to second) |
|
Playback Function |
Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
|
Backup Mode |
USB Device/Network |
|
Storage |
|
|
Internal HDD |
1 SATA port, up to 10 TB capacity |
|
eSATA |
N/A |
|
Auxiliary Interface |
|
|
USB |
2 USB ports (USB 2.0) |
|
RS485 |
1 port, for PTZ control |
|
RS232 |
N/A |
|
Electrical |
|
|
Power Supply |
DC 12V/2A |
|
Power Consumption (Without HDD) |
< 7W |
|
Environmental |
|
|
Operating Conditions |
-10°C to +55°C (+14°F to +131°F), 0%–90% (RH) |
|
Storage Conditions |
-20°C to +70°C (-4°F to +158°F) , 0%–90% (RH) |
|
Third-Party Support |
|
|
Third-Party Support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
|
Certifications |
|
|
Certifications |
FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024 |
|
Construction |
|
|
Installation |
Desktop installation |
|
Dimensions |
Mini 1U, 325.0 mm × 256.6 mm × 55.0 mm (12.80'' × 10.10'' × 2.17'') |
|
Net Weight (Without HDD) |
1.21 kg (2.67 lb) |
|
Gross Weight |
1.84 kg (4.06 lb) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel DVR |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
