SKU # 1000094912

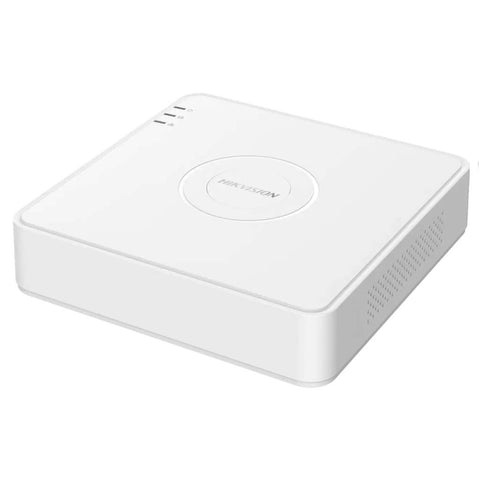

Hikvision Value Series DVR Lite Mini 1U H.265 8 Channel 1080P DS-7108HGHI-K1
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
H.265 Pro+/H.265 Pro/H.265 video compression
-
HDTVI/AHD/CVI/CVBS/IP video input
-
Audio via coaxial cable
-
Up to 5-ch IP camera input (up to 1080p)
-
Encoding ability up to 1080p lite @ 25/30 fps
-
Max. 1200 m for 720p HDTVI signal
Product Specification
|
Brand |
Hikvision |
|
Product Type |
DVR |
|
Product Code |
DS-7108HGHI-K1 |
|
Series |
Value |
|
Recording |
|
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Encoding Resolution |
When 1080p Lite Mode Not Enabled: 720p/Wd1/4cif/Vga/Cif When 1080p Lite Mode Enabled: 1080p Lite/Hd 720p Lite/Wd1/4cif/Vga/Cif |
|
Frame Rate |
Main
Stream:When
1080p Lite Mode Not Enabled: Sub-Stream: |
|
Video Bitrate |
32 Kbps To 4 Mbps |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Video And Audio |
|
|
Ip Video Input |
2-Ch (up To 10-Ch) Up To 5 Mp Resolution Support H.265+/H.265/H.264+/H.264 Ip Cameras |
|
Analog Video Input |
8-Ch Bnc Interface (1.0 Vp-P, 75 Ω), Supporting Coaxitron Connection |
|
Ahd Input |
1080p25, 1080p30, 720p25, 720p30 |
|
Hdcvi Input |
1080p25, 1080p30, 720p25, 720p30 |
|
Hdmi Output
|
1-Ch, 1920 × 1080/60hz, 1280 × 1024/60hz, 1280 × 720/60hz, 1024 × 768/60hz Hdmi/Vga Simultaneous Output |
|
Vga Output |
1-Ch, 1920 × 1080/60hz, 1280 × 1024/60hz, 1280 × 720/60hz, 1024 × 768/60hz |
|
Cvbs Input |
Support |
|
Synchronous Playback |
8-Ch |
|
Audio Output |
1-Ch, Rca (linear, 1 KΩ) |
|
Audio Input |
1-Ch Rca (2.0 Vp-P, 1 KΩ) 8-Ch Via Coaxial Cable |
|
Two-Way Audio |
Reuse The First Audio Input |
|
Network |
|
|
Remote Connection |
64 |
|
Network Protocol |
Tcp/Ip, Pppoe, Dhcp, Hik-Connect, Dns, Ddns, Ntp, Sadp, Smtp, Nfs, Iscsi, Upnptm, Https |
|
Network Interface |
1, Rj45 10/100 Mbps Self-Adaptive Ethernet Interface |
|
Auxiliary Interface |
|
|
Sata |
1 Sata Interface |
|
Capacity |
Up To 4 Tb Capacity For Each Disk |
|
Usb Interface |
Rear Panel: 2 × Usb 2.0 |
|
Alarm In/Out |
N/A |
|
General |
|
|
Power Supply |
12 Vdc,1.5 A |
|
Consumption |
≤ 17 W |
|
Working Temperature |
-10 °c To 55 °c (14 °f To +31 °f) |
|
Working Humidity |
10% To 90% |
|
Dimension (w × D × H) |
260 × 222 × 45 Mm (10.2× 8.7× 1.8 Inch) |
|
Weight |
≤ 1 kg (2.2 lb) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel DVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
