SKU # 1000052787

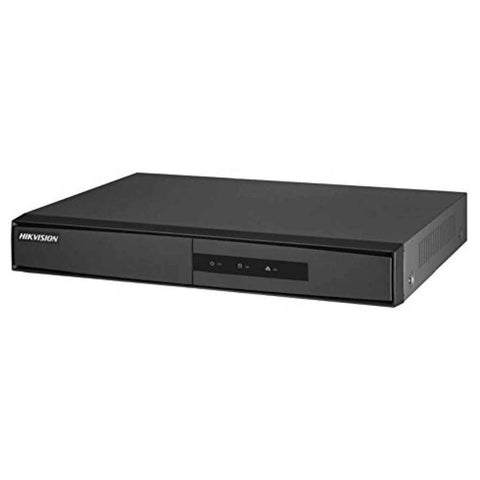

Hikvision Turbo HD DVR 1MP 8CH Metal DS-7B08HGHI-F1
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Video Input and Transmission
-
Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
-
Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal
-
Compression and Recording
-
One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
-
Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p
-
Video Output
-
HDMI/VGA output at up to 1920 × 1080 resolution
-
Storage and Playback
-
One SATA interface (up to 6 TB capacity per HDD) ;4/8/16-ch synchronous playback
-
Smart search for efficient playback
-
Smart Function
-
VQD (Video Quality Diagnostics); Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras ;Unlock pattern for device login for the admin and clear-text password available ;GUID file can be exported for password resetting and imported for finding the forgotten password ;Supports PTZ control via Omnicast VMS of Genetec protocol
-
Network & Ethernet Access
-
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management One RJ45 10M/100M Ethernet network interface ; Output bandwidth limit configurable
Product Specification
|
Brand |
Hikvision |
|
Product Code |
DS-7B08HGHI-F1 |
|
Product Type |
Digital Video Recorder |
|
Power supply |
12 VDC |
|
Consumption (without HDD) |
≤ 12 W |
|
Working temperature |
-6 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
|
Working humidity |
10% to 90% |
|
Video/Audio input |
|
|
Video compression |
H.264+/H.264 |
|
Analog and HD-TVI video input |
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
Turbo HD input |
1080p25, 1080p30, 720p25, 720p3 |
|
AHD input |
1080p25, 1080p30, 720p25, 720p30 |
|
HDCVI input |
1080p25, 1080p30, 720p25, 720p30 |
|
CVBS input |
Support |
|
IP video input |
2-ch(up to 10-ch) Up to 2MP resolution |
|
Audio compression |
n G.711u |
|
Audio input/Two way audio input |
1-ch ,RCA (2.0 Vp-p, 1 KΩ) |
|
Video/Audio output |
|
|
HDMI / VGA Output |
1-ch, 1920 x 1080/60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz |
|
Encoding resolution |
When 1080p Lite mode not enabled : 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF |
|
Video bit rate |
32 Kbps to 4 Mbps |
|
Dual stream |
Support |
|
Stream type |
Video, Video & Audio |
|
Synchronous playback |
8-ch |
|
Network management |
|
|
Remote connections |
128 |
|
Network protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
|
Hard disk |
|
|
SATA |
1 SATA interface |
|
Capacity |
Up to 6 TB capacity for each disk |
|
External Interface |
|
|
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
|
USB interface |
Rear panel: 2 × USB 2.0 |
|
Dimensions |
261 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
Weight (without HDD) |
≤ 1 kg (2.2 lb) |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
8 Channel DVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
