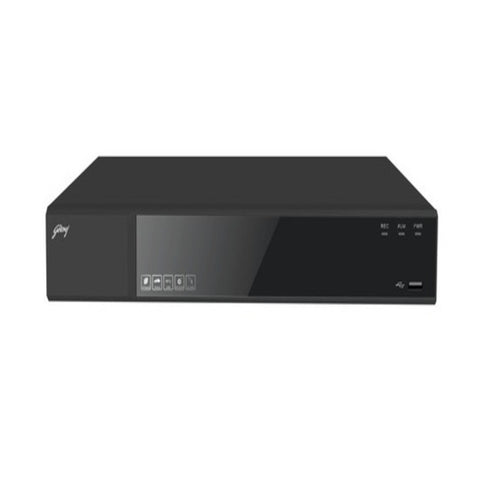

Godrej Elite 8 Channel 5MP DVR STP-UR8AS1-1960P

₹ 11,474.00

Quantity



Pack Qty : 1.0

Delivery Availability

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

Support AHD/TVI/CVI/CVBS/IP Cameras
Support AHD/TVI/CVI Cameras UP To 2MP
Support Smart Detection & Smart Playback
Support Extra Ip Channels
Support H.264+/H.264
Support Time Division & Instant Playback
Support Google Drive & Dropbox Cloud Storage
8ch 5MP 5 in 1 UVR, 8ch 5MP 12fps Recording/4ch Playback
Video I/O:8/1; Audio I/O: 4/1,HDMI,VGA
CVBS,SATA*1(8T HDD)
3G/4G, WIFI, PTZ,USB Mouse,DC12V/1.5A Adapter
Smart Function/Cloud Storage/Cloud Upgrade,H.264+/Extra 8CH IP/Event Stream

Product Specification

Brand	Godrej
Product Type	Digital Video Recorder
Product Code	STP-UR8AS1-1960P
Color	Black
Series	Elite
Chipset	Hi3531A
Video Input	8ch(1.0Vp-p, 75 Ω)
TVI	5MP,3MP,1080P, 720P
CVI	4MP,1080P, 720P
AHD	5MP,4MP,1080P, 720P
IPC	Up to 6ch 2MP
CVBS	up to 16ch when no analog input,resolution up to 5MP
Audio Input	4-ch, RCA(2.0 Vp-p, 1 KΩ)
Two-Way Audio	1-ch, multiplex with Audio Input(RCA)
HDMI	1ch, resolution: 4K(3840×2160)/30Hz,1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
VGA	1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
CVBS output	1-ch,BNC(1.0Vp-p,75Ω), resolution: PAL:704x576, NTSC:704x480
Audio Output	1-ch, RCA(Linear, 1kΩ)
Multi-screen display	8CH: 1/4/6/8/9/16
Video Compression	H.264+/H.264
Encoding Resolution	5MP/4MP/3MP/1080P/1080P Lite/720P/960H/D1
Frame Rate(fps)	Main stream：8CH 5MP@12fps, 4MP@15fps1080P/1080P Lite/720P/960H/D1@25fps（P）/30fps（N）
Video Bit Rate	11Kbps~5727Kbps
Record Mode	Manual, Schedule, Alarm
Audio Compression	G.711a
Audio Bit Rate	64kbps
Playback Number	8CH Playback
Playback Mode	Normal / Time Division / Label / Event / Picture playback
Backup Mode	USB Device/Network
Intelligent Detection	8CH Line Crossing&Area Intrution
Smart Playback	Line Crossing / Area Intrution / Motion Detection
Cloud Storage	Support
Cloud Upgrade	Support
Ethernet	1 RJ-45 10 /100/1000 Mbps self-adaptive Ethernet interface
Network Function	HTTPs, HTTP, TCP/IP, Ipv4, UPnP, RTSP, RTCP, UDP, SMTP, SNMP, Multicast, IGMP, NTP, DHCP,DNS IP Filter, DDNS, FTP, P2P
Max. User Access	32 users
Smart Phone	iPhone, iPad, Android
SATA	1 SATA interfaces
Capacity	Up to 8TB capacity for each HDD
Serial Interface	Standard RS-485(half-duplex)
USB Interface	Front panel: 1 × USB 2.0,Rear panel: 1 × USB 2.0
Power Supply	DC12V,1.5A
Power Consumption	≤20W(without HDD)
Working Environment	-10°C~+55°C / 10%~90%RH
Dimension (W×D×H)	250 x 230 x 45mm
Weight(withOut HDD)	1.5kg
Warranty	1 Year
