SKU # 1000005599

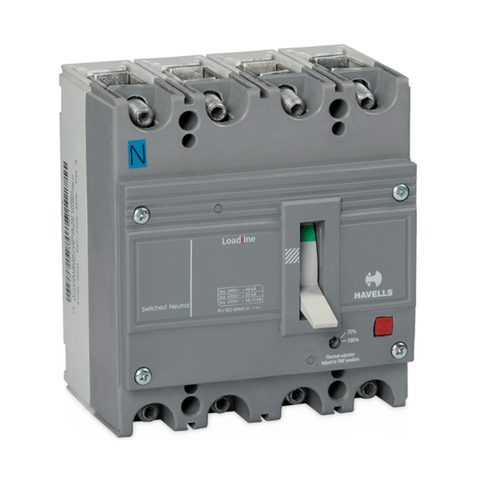

Havells Adjustable Thermal and Fixed Magnetic Mccb with 4 Pole 16kA

Havells Adjustable Thermal and Fixed Magnetic Mccb with 4 Pole 16kA

₹ 6,254.00


Min Qty : 1

Delivery Availability

 Estimated Dispatch In 14-21 Business days

EMI Available.

On minimum purchase of ₹ 3000/-

100% Genuine Products
100% Secured Payments

Product Description

Overload Setting is Adjustable (70-100)% and Short Circuit Setting is minimum 10 times of Rated Current.

Compact Size & Double Insulation

  • Space saving in the Panel and has the conductive path insulated with double shield i.e. Cover & Facia

Suitable for Switch Disconnector Purpose

  • Can be used as an Isolator

In 4Pwsn version, Neutral makes first & breaks last

  • Provision for addressing Residual Current in the Circuit.

Provision of Push to tip button

  • It is an alternate means to Trip the Breaker and also helps in checking the health of the Breaker.

Uniform front Escutcheon plate

  • Common Door Cut-out Facility provided lending Uniformity

Positive dolly position indication

  • Depicts the ON/OFF status of the breaker

Suitable for DC application

  • Offers choice of system usage

Wide range of accessories available

  • Allows precise monitoring & control of circuit with the help of varied Internal & External Accessories

Product Specifications

  • Standard conformity: IEC 60947-2/IS:13947-2

  • Rated operational voltage: 500V AC

  • Rated Insulation Voltage: 750V AC

  • Type of Release: Thermomagnetic

  • Utilisation Category: A

  • Rated frequency: 50/60Hz

  • Ambient temp: 400C (500C on request)

  • Operating altitude: 2000 metres

  • Humidity: 0 - 90%

  • Rated impulse voltage: 8 kV

  • Rating Range: 160A - 200A

  • Type of Release: Thermal Adjustable and Magnetic Fixed Type

  • No. of Poles: Four

  • Breaking Capacity: Icu = 16kA, Ics = 100% of Icu

Note: # All MCCB’s of rating 80A & above are with extended terminals.

Breaking Capacity Icu at 415 (kA)


Current Rating (A)

Cat. No.




IHLASF0160 #


IHLASF0200 #
