SKU # 1000012499

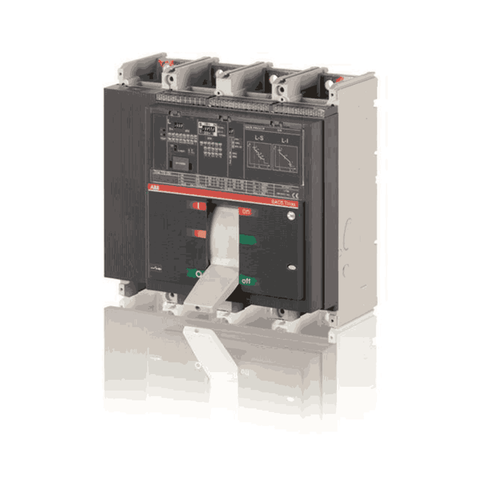

ABB TMax MCCB 1250A 50KA 415V Four-Pole – T7S 1250 PR231/P LS/I In=1250A 4p F F

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
C.Breaker Tmax T7S 1250 Fixed Four-Pole With Front Terminals And Lever Operating Mechanism And Solid-State Release In Ac Pr231/P-Ls/I R 1250
-
Adjustable thermal ( 70-100% of In) and adjustable magnetic ( 5-10 of In) for power distribution
-
Moulded-case circuit-breakers can be used in low voltage civil and industrial installations with 1 to 3200 A operating current
-
Suitable for isolation
Product Specification
Brand |
ABB |
Product ID |
1SDA062874R1 |
Model |
T7S 1250 PR231/P LS/I In=1250A 4p F F |
Product Name |
Moulded Case Circuit Breaker |
Product Main Type |
SACE Tmax T |
Product Type |
CB |
Number of Poles |
4 |
Rated Current |
Main Circuit 1250 A |
Weight |
|
Width |
280 mm |
Height |
268 mm |
Depth / Length |
154 mm |
Rated Insulation Voltage |
1000 V |
Power Loss |
at Rated Operating Conditions per Pole 47 W |
Rated Operational Voltage |
690 V AC |
Terminal Connection Type |
Fixed Circuit-Breakers Front |
Version |
F |
Electrical Durability |
2000 cycle , 60 cycles per hour |
Mechanical Durability |
10000 cycle , 60 cycles per hour |
Standards |
IEC |
