48 hours

SKU # 1000114239

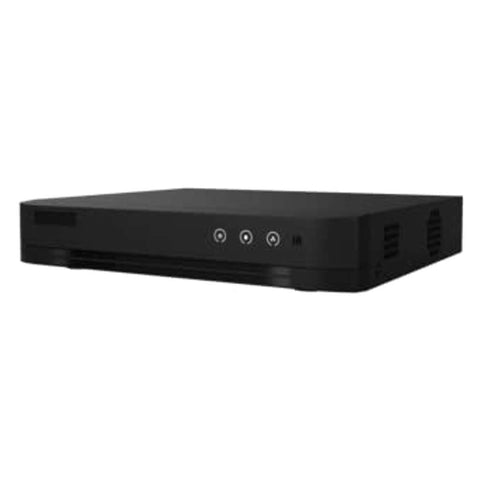

Hikvision Turbo HD DVR 1MP 16ch Metal Body 1SATA DS-7B16HGHI-K1

Hikvision Turbo HD DVR 1MP 16ch Metal Body 1SATA DS-7B16HGHI-K1


₹ 7,160.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Support H.265 Pro+/H.265 Pro/H.265 video compression

  • Support HDTVI/AHD/CVI/CVBS/IP video input

  • Up to 18-ch IP camera input (up to 5 MP)

  • Maximum 800 m for 1080p and 1200 m for 720p HDTVI signal transmission

  • Up to 10 TB capacity per HDD

  • Compression And Recording

  • H.265 Pro+ video compression improves encoding efficiency and reduces data storage costs

  • Full channel recording at up to 1080p lite resolution

  • Storage And Playback

  • Smart search for efficient playback

  • Smart Function

  • Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras

  • Support 1-ch line crossing detection and intrusion detection

  • Network & Ethernet Access

  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

  • Configurable output bandwidth limit

Product Specification

Brand

Hikvision

Product Type

Digital Video Recorder

Product Model

DS-7B16HGHI-K1

Power Supply

12 VDC

Consumption (Without HDD)

10 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

1080p lite/720p/VGA/WD1/4CIF/CIF

Frame Rate

Main Stream:

For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA 15fps; CIF25fps
(P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA15fps; CIF25fps (P)/30fps (N)
For standard definition stream access: WD1/4CIF/VGA/CIF25fps (P)/30fps (N)

Sub-Stream:

For 1080p and 720p stream access: CIF/QVGA15fps
For standard definition stream access: CIF/QVGA25fps (P)/30fps (N)

Video Bit Rate

32 Kbps to 4 Mbps

Dual Stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bit Rate

64 Kbps

Video And Audio

IP Video Input

2-ch (up to 18-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

HDMI/VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback

16-ch

Network

Remote Connections

128

Network Protocols

TCP/IP,PPPoE,DHCP,Hik-Connect,

DNS,DDNS,NTP,SADP,NFS,iSCSI,

UPnP,HTTPS,ONVIF

Network Interface

1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

SATA

1, SATA interface

Capacity

Up to 10 TB capacity for each disk

USB Interface

2 × USB 2.0

Dimension (WxDxH)

260 x 222 x 45 mm

Weight

1.1 kg (2.4 lb)

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

16 Channel DVR

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country of Origin

India
