SKU # 1000139324

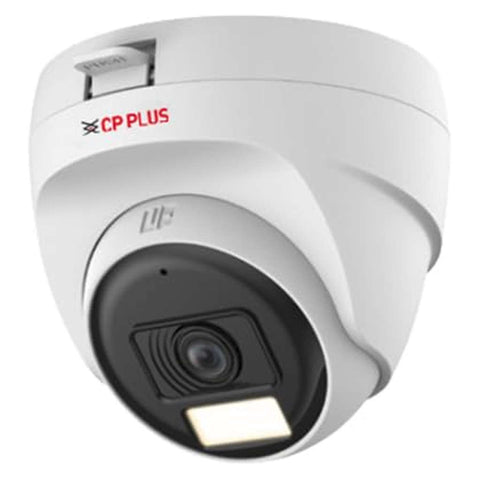

CP Plus 2.4MP Built-In-Mic Dome Camera CP-URC-DC24PL3C
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
2.4 MP PS CMOS Image Sensor
-
Maximum Outputs 2.4MP (1920 × 1080)@25/30fps
-
DWDR, Day/Night (ICR), 2D DNR, BLC, HLC
-
3.6mm Fixed Lens (2.8 mm Optional)
-
IR Range of 30 Mtrs., Smart IR
-
4 Signals over 1 Coaxial Cable
-
Support Built-in Mic
-
Functions
-
True Day/Night (ICR)
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Built-In Mic
-
The built-in microphone captures high-quality audio, adding an extra layer of security by recording sound along with video, which is essential for comprehensive surveillance
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Dome Camera |
|
Product Model |
CP-URC-DC24PL3C / CP-URC-DC24PL3C-0360 |
|
Image Sensor |
2.4MP PS CMOS Image Sensor |
|
Minimum Illumination |
0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
Maximum Resolution |
1920 (H) × 1080 (V) |
|
Shutter Speed |
PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
|
White Balance |
Auto, Area white Balance |
|
DORI Distance |
Lens 3.6 mm: Detect-55.0 m, Observe-22.0 m, Recognize - 11.0 m, Identify-5.5 m Lens 2.8 mm: Detect-44.7 m, Observe-17.9 m, Recognize-8.9 m, Identify-4.5 m |
|
Gain Control(AGC) |
Auto, Manual |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F2.0 |
|
Lens Mount |
M12 |
|
Close Focus Distance |
3.6 mm: 0.8 m, 2.8 mm: 0.5 m |
|
Lens |
3.6mm (2.8mm optional) |
|
Back Light Compensation |
BLC/HLC/DWDR |
|
Angle Of View |
3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117° |
|
S/N Ratio |
>65 dB |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Resolution |
2.4MP (1920 × 1080), 960H (960 × 576/ 960 × 480) |
|
Frame Rate |
CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Mirror Function |
Support |
|
IR Control |
Auto, Manual |
|
Audio |
Built-in Mic |
|
Noise Reduction |
2D DNR |
|
Privacy Mask |
Off/On (8 areas, rectangle) |
|
IR |
IR Range of 30 Mtr., |
|
Iris Control |
Fixed |
|
IR Mode |
Smart IR mode |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
IR Number |
IR light |
|
Power Source |
12 VDC ± 30% |
|
Power Consumption |
Maximum 2.1 W (12 VDC, LED on) |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
<95% (RH), non-condensing |
|
Casing |
Plastic |
|
Iris Control |
Fixed |
|
Dimension |
85 × 77.1 mm |
|
Weight |
0.11 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
11 x 11 x 9 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.300 kg |
|
Generic Name |
Dome Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
