SKU # 1000139330

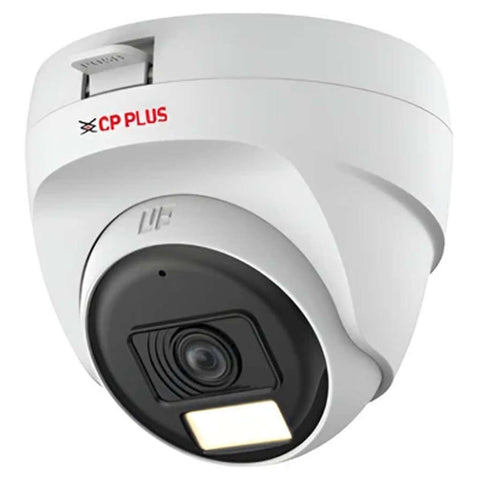

CP Plus 5MP Dual Light Dome Camera CP-URC-DC51PL3C-L
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
5 MP PS CMOS Image Sensor
-
Max 25 fps@5MP
-
DWDR, Day/Night (ICR), 2D NR, BLC, HLC
-
3.6mm fixed lens (2.8mm optional)
-
Support Built-in Mic
-
IR Range of 30 Mtrs., Warm Light Range of 20 Mtrs
-
4 Signals over 1 Coaxial Cable
-
Functions
-
Smart Dual IR (Warm Light And IR)
-
Smart Dual IR combines infrared and warm light for superior night vision, ensuring clear images in complete darkness and providing enhanced visibility in low-light conditions
-
True Day/Night (ICR)
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
All-In-1 HD Camera (HDCVI, HDTVI, AHD, CBVS)
-
This feature supports multiple video formats-HDCVI, HDTVI, AHD, and CBVS-making the camera versatile and compatible with various DVRs for seamless integration
-
Long Distance Transmission
-
Long-distance transmission capability allows video signals to be transmitted over extended distances without quality loss, ensuring reliable and clear footage from remote locations
-
Built-In Mic
-
The built-in microphone captures high-quality audio, adding an extra layer of security by recording sound along with video, which is essential for comprehensive surveillance
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Dome Camera |
|
Product Model |
CP-URC-DC51PL3C-L / CP-URC-DC51PL3C-L-0360 |
|
Image Sensor |
5MP PS CMOS Image Sensor |
|
Minimum Illumination |
0.02 lux F2.0 (Color, 30 IRE) 0.002 lux F2.0 (B/W, 30 IRE) 0 lux (IR on) |
|
Maximum Resolution |
2880 (H) × 1620 (V) |
|
Shutter Speed |
1/25 s–1/100,000 s/ NTSC: 1/30 s–1/100,000 s |
|
White Balance |
Auto ,Area white balance |
|
Lens |
3.6mm (2.8mm optional) |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F2.0 |
|
DORI Distance |
2.8 mm: Detect:66.0 mtr., Observe: 26.4 Mtr., Recognize: 13.2 Mtr., Identify: 13.2 Mtr. 3.6 mm: Detect: 76.0 Mtr., Observe: 30.4 Mtr., Recognize: 15.2 Mtr., Identify : 7.6 Mtr. |
|
Lens Mount |
M12 |
|
Close Focus Distance |
2.8 mm:1.0 m ; 3.6 mm: 1.3 m |
|
Gain Control(AGC) |
Auto |
|
Pan,Tilt, Rotation |
Pan: 0°-360° Tilt: 0°-78° Rotation: 0°-360° |
|
S/N Ratio |
More than 65dB |
|
Angle Of View |
2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 92°; V: 48°; D: 10° |
|
Back Light Compensation |
BLC/HLC/DWDR |
|
Video Streaming |
CVI: PAL: 5M@25 fps, 4M@25 fps, 1080p@25 fps, NTSC: 5M@25 fps, 4M@30 fps, 1080p@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps CVBS: PAL: 960H, NTSC: 960H |
|
Resolution |
5M (2880 × 1620), 4M (2560 × 1440), 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Noise Reduction |
2D NR |
|
Privacy Mask |
Off/On (8 areas, rectangle) |
|
Audio Input |
1 channel built-in Mic |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Mirror Function |
Support |
|
IR Distance |
IR Range of 30 Mtr. |
|
Warm Light |
Warm Light Range of 20 Mtr. |
|
IR Control |
Auto/Manual |
|
IR Number |
2 (Warm light) + 2 (IR light) |
|
IR Mode |
Smart IR&WL, WL Mode, IR Mode |
|
Iris Control |
Fixed |
|
Anti-Corrosion Level |
Basic Protection |
|
Audio |
Built-in Mic |
|
Operating Temperature |
-40 °C to +55 °C (-40 °F to +131 °F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
Storage Temperature |
-40 °C to +55 °C (-40 °F to +131 °F) |
|
Storage Humidity |
<95% (RH), non-condensing |
|
Power Source |
12 VDC ± 30% |
|
Power Consumption |
Maximum 2.6 W (12 VDC, WLED on) |
|
Casing |
Plastic |
|
Dimension |
85 × 771 mm |
|
Weight |
0.11 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
14.6 x 7 x 6.9 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.200 kg |
|
Generic Name |
Dome Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
