SKU # 1000139788

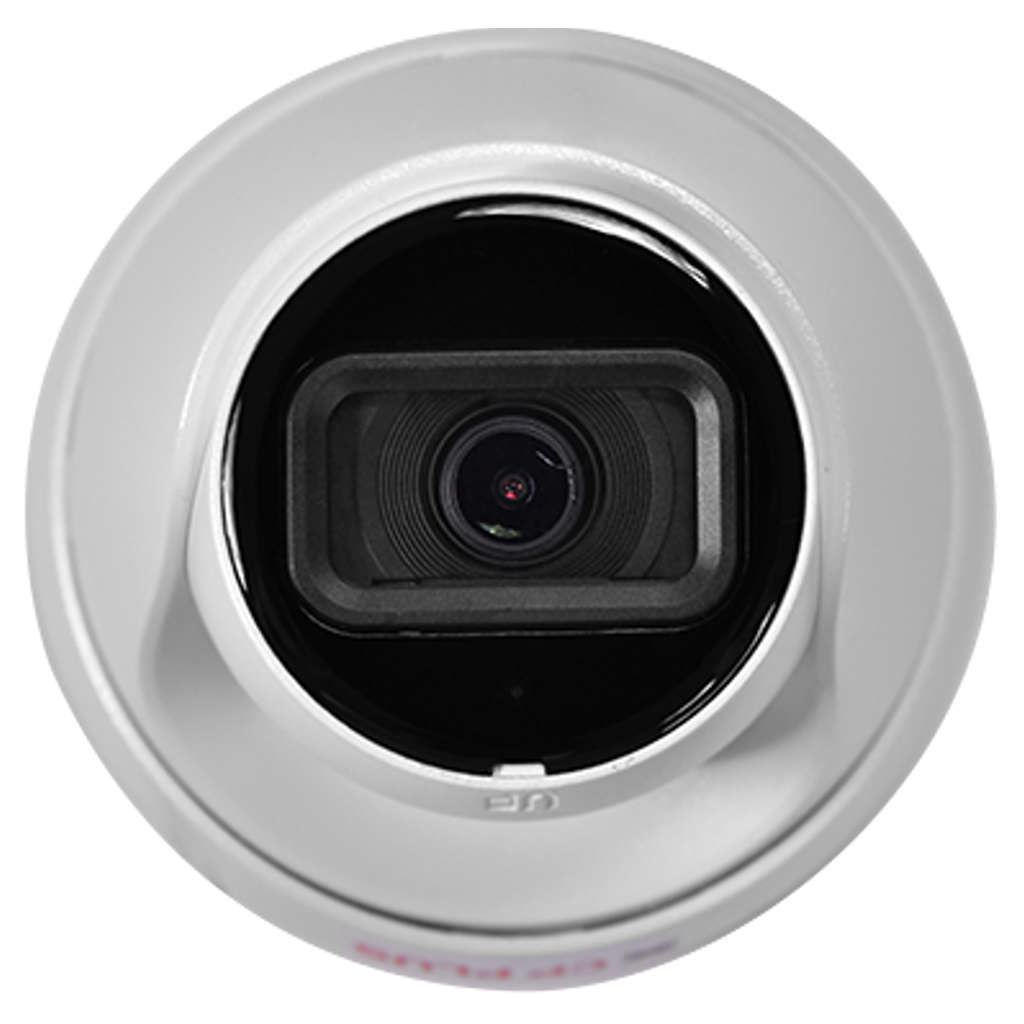

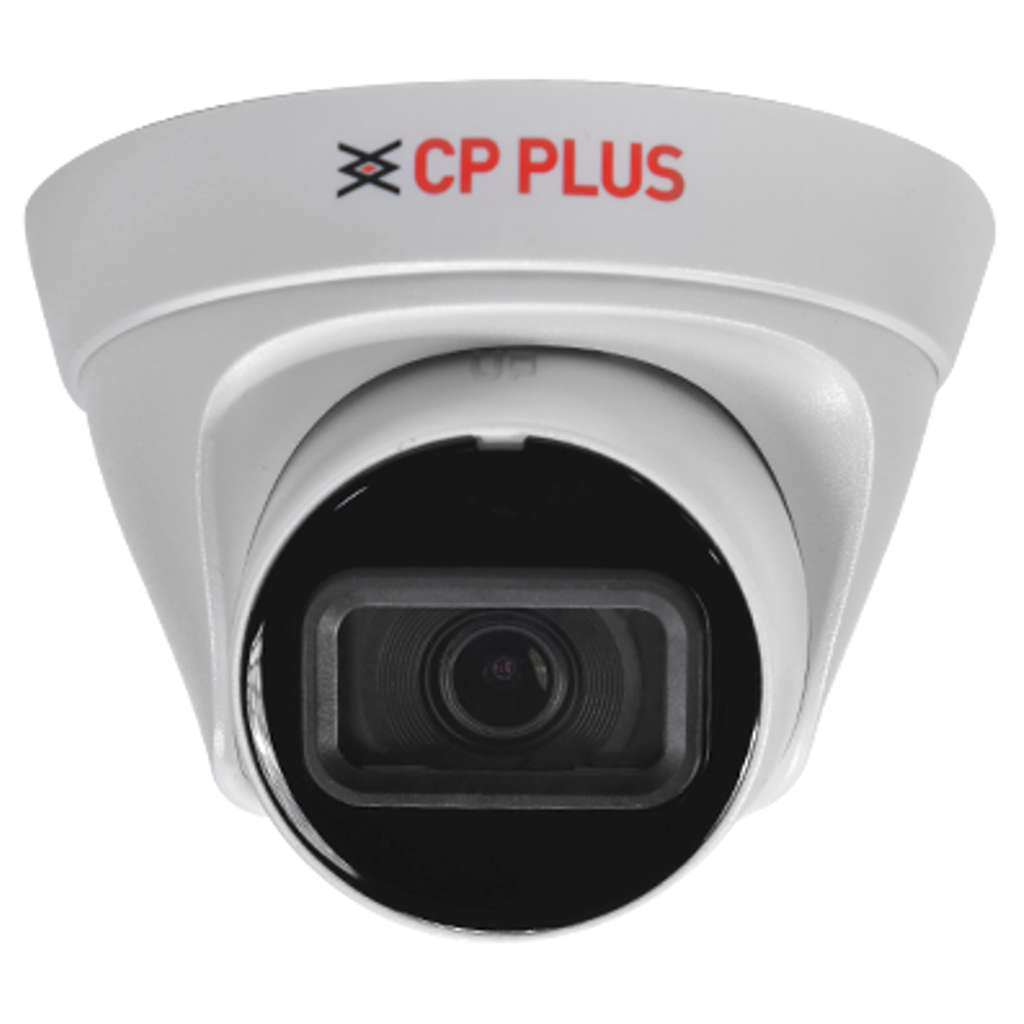

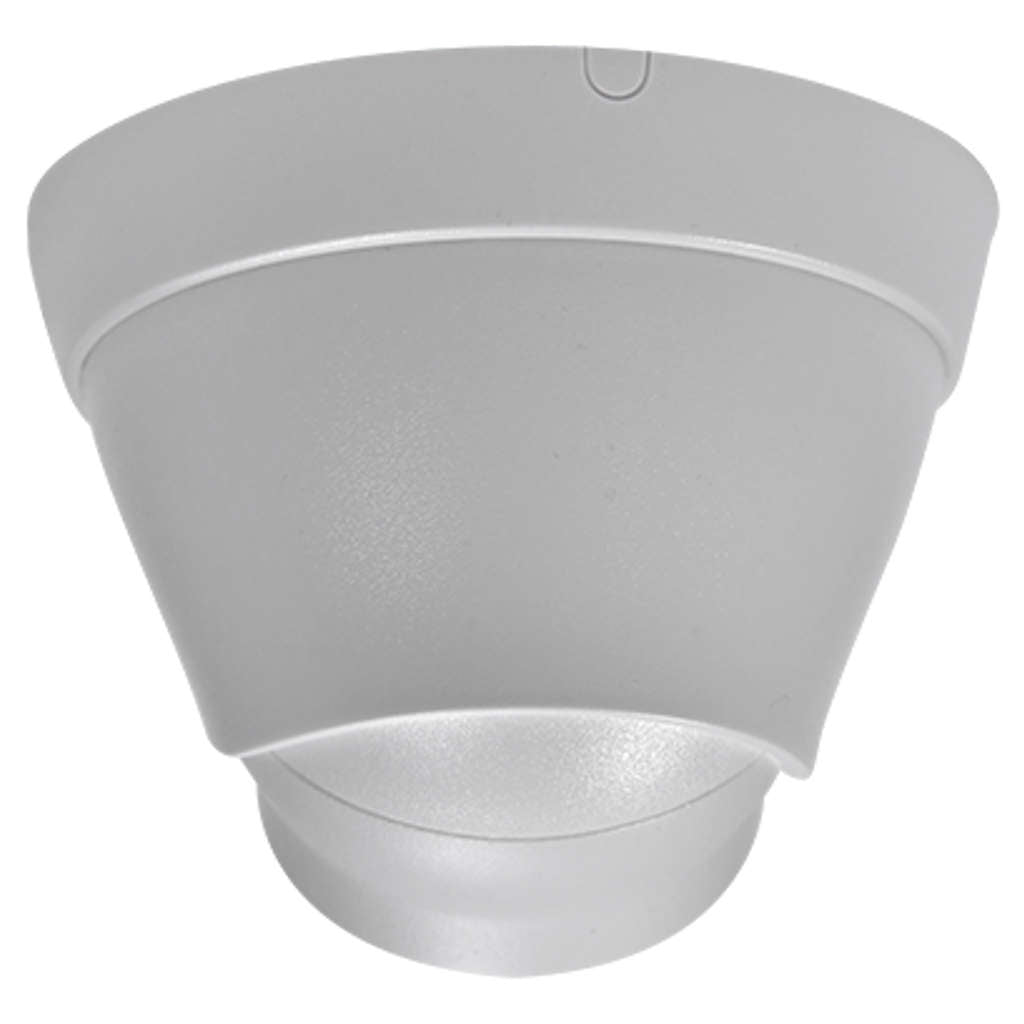

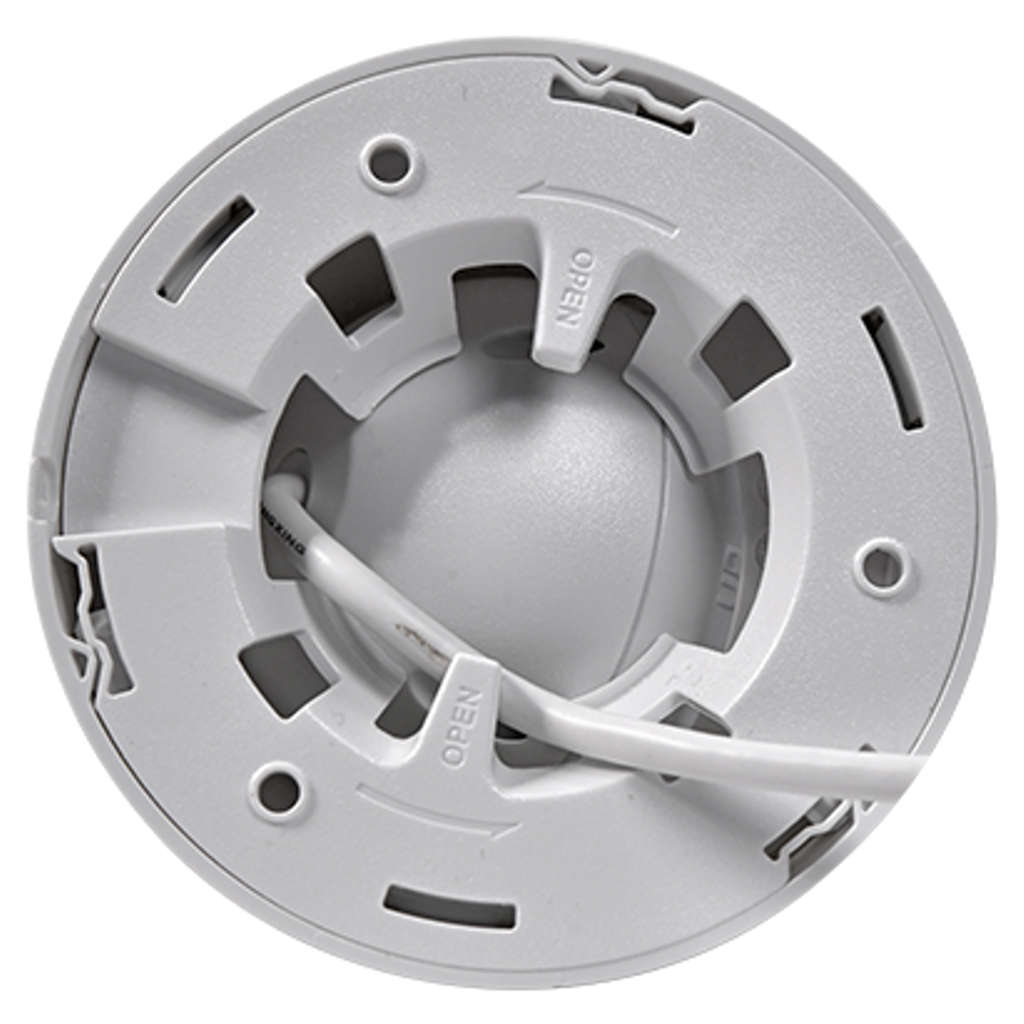

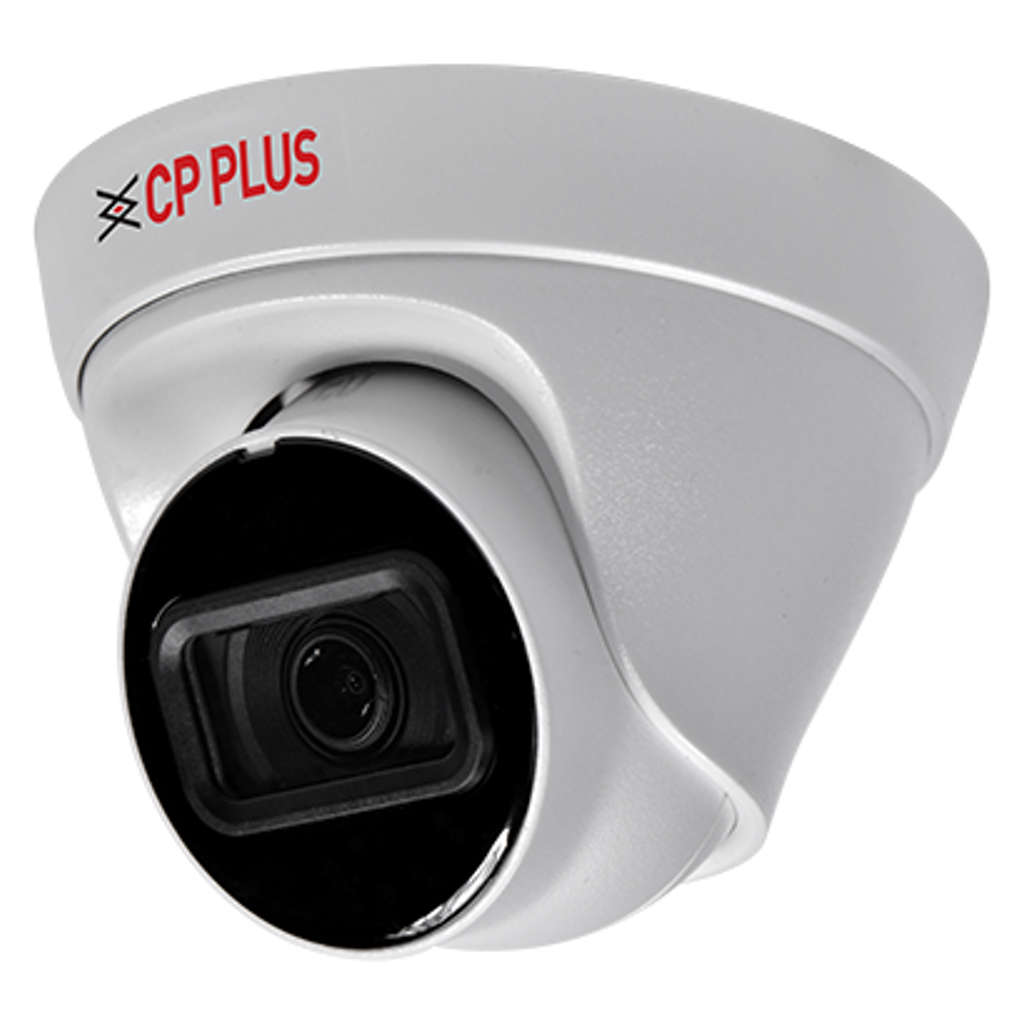

CP Plus 4MP Built-In-Mic Network IR Dome Camera CP-UNC-DA41L3C-D-Q-0360
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters)
-
Maximum 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30
-
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
-
Support Triple stream
-
WDR (120dB), Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC, Digital watermarking
-
3.6mm fixed Lens
-
Support Built-in Mic
-
IR Range of 30 Mtr., IP67, PoE
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Smart IR technology can display image in the environment of low illuminance or completely dark environment
-
According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP PLUS help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
Product Specification
|
Brand |
CP Plus |
|
Product Type |
CCTV Camera |
|
Product Model |
CP-UNC-DA41L3C-D-Q |
|
Image Sensor |
1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) |
|
Effective Pixels |
2688 (H) × 1520 (V) |
|
Minimum Illumination |
0.03 lux@F2.0 (Color, 30 IRE), 0.003 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
|
Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
White Balance |
Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
|
RAM |
128 MB |
|
ROM |
128 MB |
|
DORI Distance |
76.0 m (Detect), 30.4 m (Observe), 15.2 m (Recognize), 7.6 m (Identify) |
|
Gain Control (AGC) |
Auto, Manual |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F2.0 |
|
Lens Mount |
M12 |
|
Close Focus Distance |
1.3 m |
|
Lens |
3.6mm fixed Lens |
|
Video Compression |
Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream) |
|
S/N Ratio |
>56dB |
|
Angle of view |
H: 78°, V: 43°, D: 92° |
|
Back Light Compensation |
BLC/ HLC/ WDR(120dB) |
|
IR |
IR Range of 30 Mtr. |
|
Smart IR |
Support |
|
IR Number |
1 IR LED |
|
Resolution |
4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240) |
|
Mirror Function |
Support |
|
Iris Control |
Fixed |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
IR Control |
Auto, Manual |
|
Frame Rate |
Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720p/D1/VAG/CIF@25/30Fps Sub stream 2: D1/VGA/CIF/@25/30fps |
|
Stream Capability |
Triple stream |
|
Smart search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (8 areas, rectangular) |
|
Video Format |
PAL/NTSC |
|
OSD |
Camera title, Date & Time |
|
Audio Compression |
G.711a, G.711Mu, PCM, G.726 |
|
Bit Rate |
H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
|
Bit Rate Control |
CBR/VBR |
|
Protocol |
FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
|
SDK and API |
Support |
|
Ethernet |
RJ-45 (10/100 Base-T) |
|
Alarm Event |
Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception |
|
Image Rotation |
4MP only support 0°/180° 2MP & lower will support 0°/90°180°/270° |
|
Certificates |
ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
|
Power Source |
12 VDC/ PoE (802.3af) |
|
Power Consumption |
Basic: 1.5 W (12 VDC), 1.9 W (PoE); Maximum (H.265 + intelligence on + WDR+ IR intensity): 3.5 W (12 VDC), 4.3 W (PoE) |
|
User/Host |
6 (Total bandwidth: 36 M) |
|
Browser |
IE, Chrome, Firefox |
|
Weatherproof Standard |
IP67 |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
≤95%(RH), non-condensing |
|
Storage Temperature |
-40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
≤95%(RH), non-condensing |
|
Dimensions |
85.5 mm × 109 mm |
|
Weight |
250g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
8.55 x 10.9 x 10.9 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.25 kg |
|
Generic Name |
Dome Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
