SKU # 1000139776

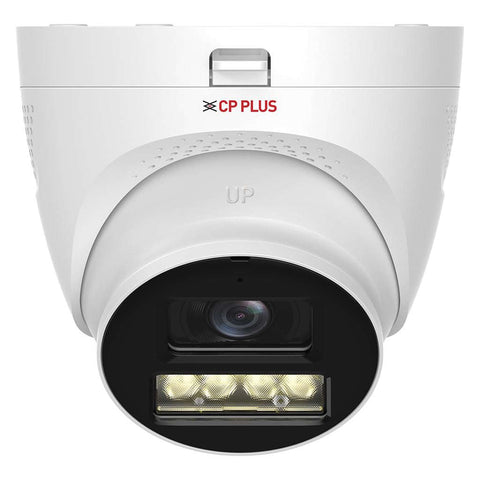

CP Plus 2.4MP Dual Light Dome CCTV Camera 40m Night Vision 3.6mm Lens CP-UMC-DA24L4-L
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
1/" 2.4MP PS CMOS Image Sensor (0.84667 centimeters)
-
Maximum 2.4MP (1920×1080)@30fps
-
DWDR, Day/Night (ICR), 3D NR, BLC, HLC
-
3.6mm Lens (2.8 mm optional)
-
IR Range of 40 Mtr., Smart IR, Smart Dual Light
-
Support Two-way Talk , IP67
-
Smart Dual IR (warm light and IR)
-
Smart Dual IR combines infrared and warm light for superior night vision, ensuring clear images in complete darkness and providing enhanced visibility in low-light conditions
-
When the scene is too dark, the image is captured by illumi-nating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
The camera passes a series of strict test on dust and soak
-
It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes
Product Specification
|
Brand |
CP Plus |
|
Product Type |
CCTV Camera |
|
Product Model |
CP-UMC-DA24L4-L |
|
Image Sensor |
1/3" 2.4MP PS CMOS Image Sensor (0.84667 centimeters) |
|
Maximum Resolution |
1920 (H) × 1080 (V) |
|
Resolution |
2MP (1920 × 1080), 960H (960 × 576/ 960 × 480) |
|
Shutter Speed |
PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
|
Minimum Illumination |
0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
IR Control |
Auto, Manual |
|
S/N Ratio |
>65dB |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
|
Audio |
Built-in Mic, up to 8 m |
|
Built-In Speaker |
Support, up to 8 m |
|
Two-Way Talk |
Support* |
|
IR Number |
4 (Multi-core light) |
|
IR |
IR Range of 40 Mtr. |
|
Lens Type |
Fixed-focal |
|
Lens Mount |
M12 |
|
Lens |
3.6mm Lens (2.8mm Optional) |
|
Maximum Aperture |
F2.0 |
|
Angle of View |
3.6 mm: H: 89°, V: 48.2°, D: 109.1°; 2.8 mm: H: 111.3°, V: 60.8°, D: 134.2° |
|
Close Focus Distance |
3.6 mm: 0.7 m; 2.8 mm: 0.5 m |
|
White Balance |
Auto |
|
DORI Distance |
Lens 3.6 mm: 49.9 m (Detect), 20.0 m (Observe), 10.0 m (Recognize), 5.0 m (Identify); Lens 2.8 mm: 40.6 m (Detect), 16.2 m (Observe), 8.1 m (Recognize), 4.1 m (Identify) |
|
Gain Control (AGC) |
Auto, Manual |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Back Light Compensation |
BLC/ HLC/ DWDR |
|
Noise Reduction |
3D NR |
|
Frame Rate |
CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
|
IR Mode |
Smart IR&WL, WL Mode, IR Mode |
|
Mirror Function |
Support |
|
Camera Audio |
CVI, TVI |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
|
Weatherproof Standard |
IP67 |
|
Anti-Corrosion Level |
Basic Protection |
|
Power Source |
12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one cam- era) |
|
Power Consumption |
Max 9.37 W (12 VDC, IR on) |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
<95% (RH), non-condensing |
|
Casing |
Dome (metal + plastic) + plastic enclosure |
|
Dimensions |
109.9 mm × 105.9 mm |
|
Weight |
320 g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
10.99 x 10.59 x 10.99 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.320 kg |
|
Generic Name |
Dome Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
