SKU # 1000139796

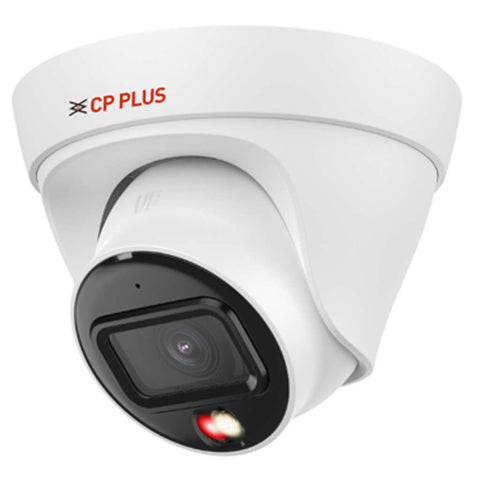

CP Plus 8MP Built-In-Mic Dual Light Dome Camera CP-UNC-DA81L3C-LQ-0360
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
1/2.7" 8MP PS CMOS Image Sensor (0.9407 Centimeters)
-
Maximum 8MP (3840 × 2160)@1–20 fps
-
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
-
Support Triple stream
-
Support Built-in Mic
-
DWDR, Day/Night (ICR), 2D NR, 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
-
IR 3.6mm fixed Lensof 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67
-
IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP PLUS help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
-
CP PLUS cameras with Power over Ethernet (PoE) technology offer a simple and efficient installation by using a single Ethernet cable to deliver both power and data
-
This eliminates the need for separate power adapters, reduces cable clutter, and ensures a cleaner setup
Product Specification
|
Brand |
CP Plus |
|
Product Type |
CCTV Camera |
|
Product Model |
CP-UNC-DA81L3C-LQ |
|
Image Sensor |
1/2.7" 8MP PS CMOS Image Sensor (0.9407 Centimeters) |
|
Effective Pixels |
3840 (H) × 2160 (V) |
|
Minimum Illumination |
0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
|
Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
White Balance |
Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
|
RAM |
256 MB |
|
ROM |
128 MB |
|
DORI Distance |
Lens 3.6mm: 98.7 m (Detect), 39.5 m (Observe), 19.7 m (Recognize), 9.9 m (Identify) Lens 2.8mm: 84.8 m (Detect), 33.9 m (Observe), 17.0 m (Recognize), 8.5 m (Identify) |
|
Gain Control (AGC) |
Auto/Manual |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F1.4 |
|
Close Focus Distance |
1.9 m |
|
Lens Mount |
M12 |
|
Lens |
3.6mm |
|
Video Compression |
Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
|
S/N Ratio |
>58dB |
|
IR Number |
1 (Multi-core (IR + warm) light) |
|
IR |
IR Range of 30 Mtr. |
|
Warm Light |
Warm Light Range of 30 Mtr. |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Angle of view |
H: 86°, V: 49°, D: 100° |
|
Back Light Compensation |
BLC/ HLC/ DWDR |
|
OTA (Over-The-Air) |
Support |
|
Stream Capability |
Triple stream |
|
Frame Rate |
Main stream: 8MP (3840 × 2160)@1–20 fps, 4MP (2688 ×1520)@1–25/30 fps Sub stream 1: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30fps |
|
Smart search |
Work together with AI NVR to perform refine AI search, event extraction and merging to event videos |
|
Video Format |
PAL/NTSC |
|
Privacy Mask |
4 areas |
|
ROI |
Support (4 areas) |
|
OSD |
Camera title, Date & Time, Channel Title, Time Title, Location, Font Properties, Custom Title |
|
Audio |
Built-in Mic |
|
Audio Compression |
G.711a, G.711Mu, PCM, G.726, AAC |
|
Bit Rate |
H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps |
|
Bit Rate Control |
CBR/VBR |
|
Protocol |
SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, UPnP, ICMP, SSL, DHCP, SMTP, RTSPS, InstaOn, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
|
SDK and API |
Support |
|
Ethernet |
RJ-45 (10/100 Base-T) |
|
Resolution |
8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 4MP (2880 × 1620/2688 × 1520), 3MP (2048 × 1536/2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
|
Noise Reduction |
2D NR, 3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Cyber Security |
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
|
IMD (Intelligent motion detection) |
Support the classification and accurate detection of human and vehicle |
|
Mirror Function |
Support |
|
IR Control |
Auto, Manual |
|
Iris Control |
Fixed |
|
Smart Illumination |
Support |
|
Smart IR |
Support |
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower) |
|
Alarm Event |
Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception |
|
User/ Host |
6 (Total bandwidth: 48 M) |
|
Browser |
IE, Chrome, Firefox |
|
Certificates |
ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
|
Power Source |
12 VDC/PoE (802.3af) |
|
Power Consumption |
Basic: 2.5 W (12 VDC), 3.5 W (PoE) Maximum: 4.5 W (12 VDC), 5.8 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity) |
|
Weatherproof Standard |
IP67 |
|
Operating Temperature |
–40°C to +55°C |
|
Operating Humidity |
≤95% (RH), non-condensing |
|
Storage Temperature |
–40°C to +60°C (–40 °F to 131 °F) |
|
Storage Humidity |
≤95%(RH), non-condensing |
|
Casing |
Metal + Plastic |
|
Dimension |
85.5mm × 109mm |
|
Weight |
280g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
85.5 x 10.9 x 10.9 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.28 kg |
|
Generic Name |
Dome Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
