SKU # 1000139780

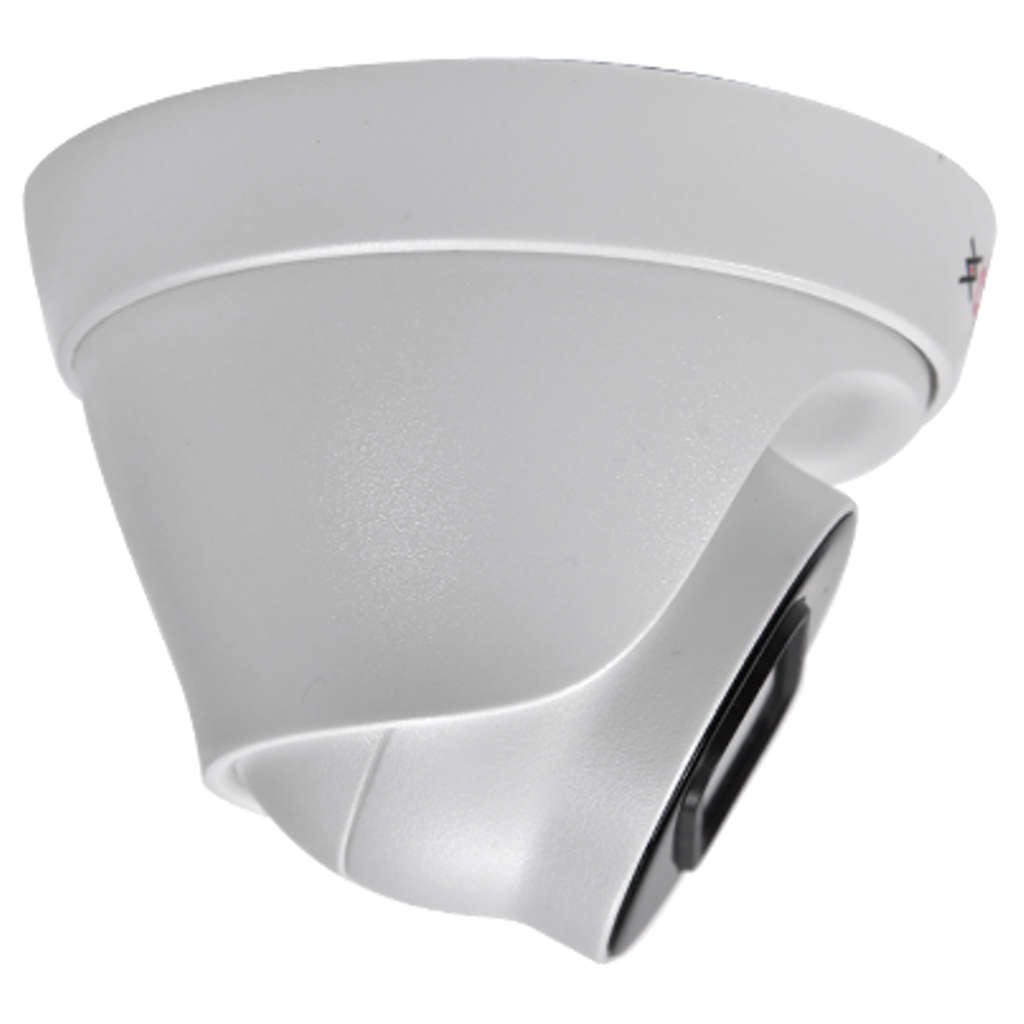

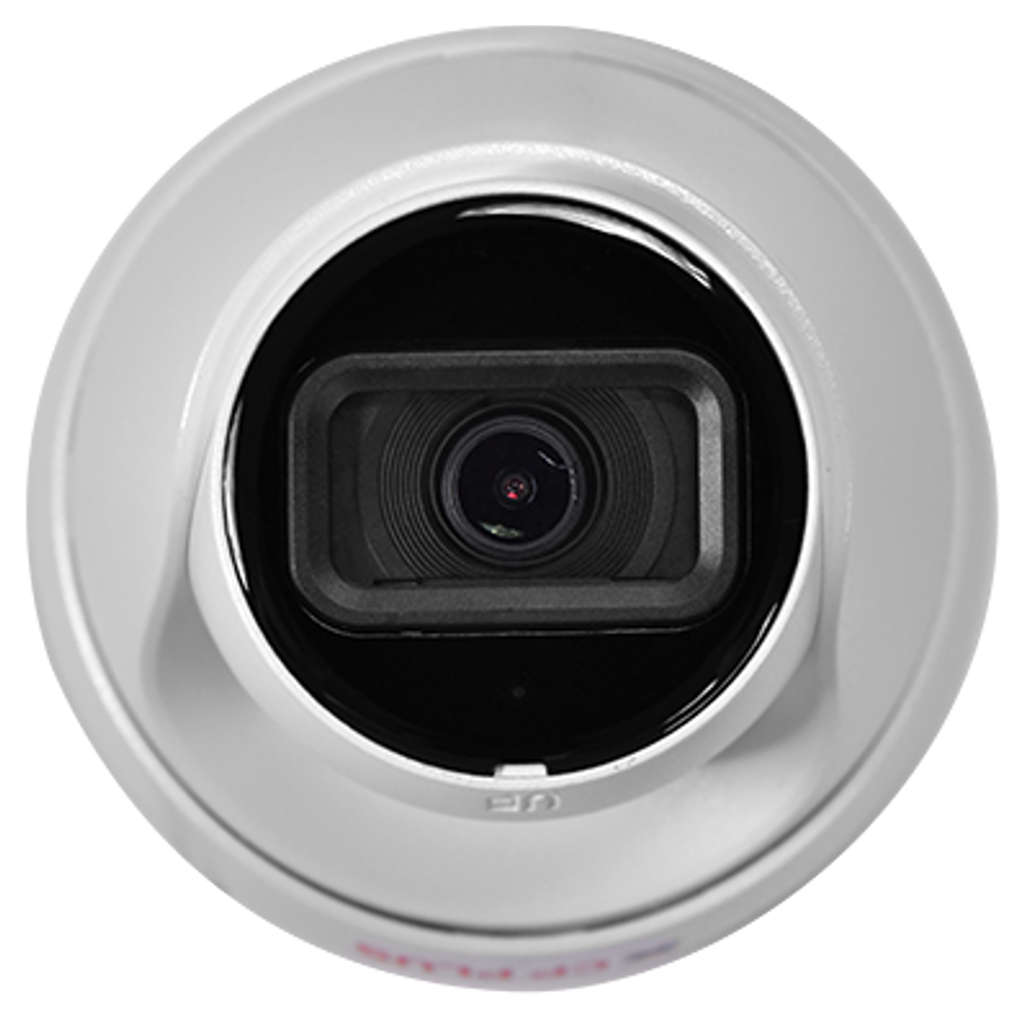

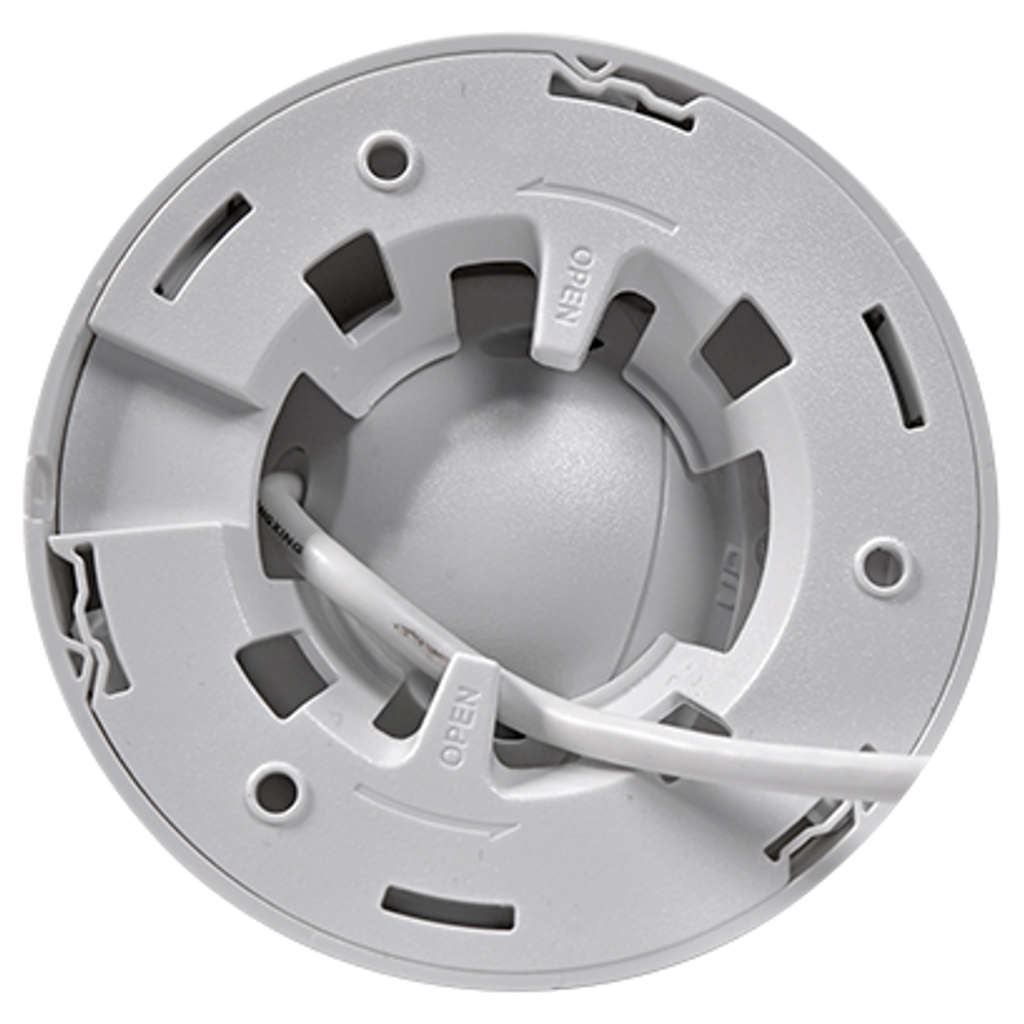

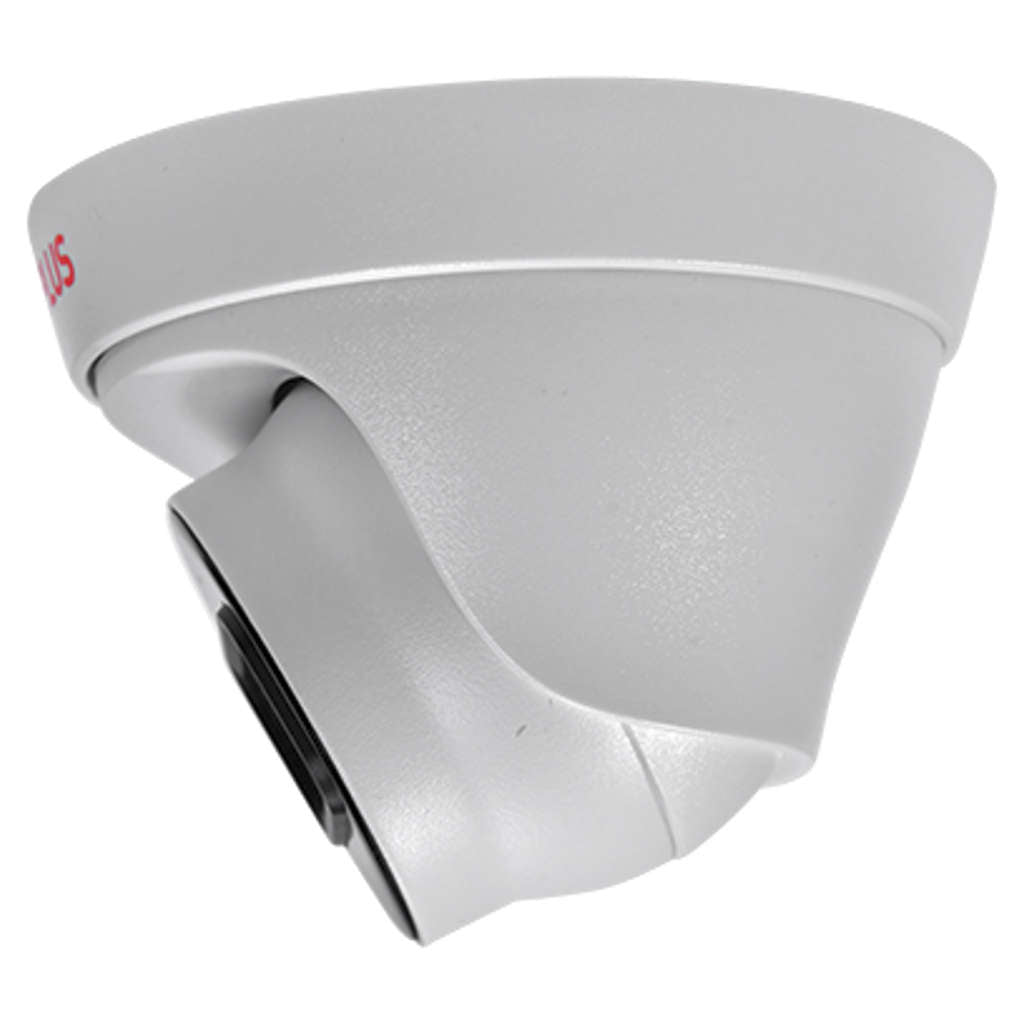

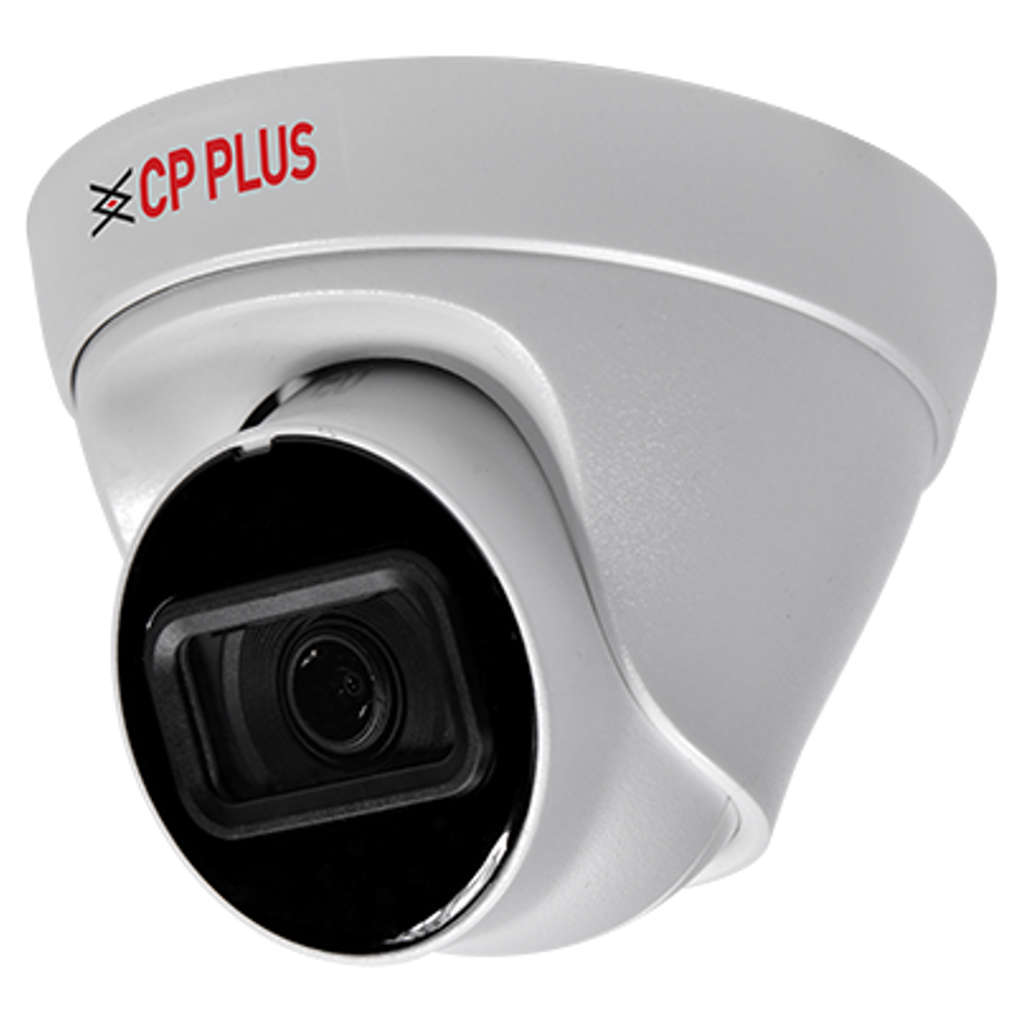

CP Plus 2MP Network IR Built-In-Mic Dome Camera CP-UNC-DA21L3C-Q-0280
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters)
-
Maximum 2MP (1920 × 1080)@1–25/30fps
-
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
-
Support Triple stream
-
Support Built-in Mic
-
3.6mm Lens (2.8mm optional)
-
DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
-
IR Range of 30 Mtr., PoE, IP67
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visi-ble for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Smart IR technology can display image in the environment of low illuminance or completely dark environment
-
According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
-
CP PLUS cameras with Power over Ethernet (PoE) technology offer a simple and efficient installation by using a single Ethernet cable to deliver both power and data
-
This elimi-nates the need for separate power adapters, reduces cable clutter, and ensures a cleaner setup
Product Specification
|
Brand |
CP Plus |
|
Product Type |
CCTV Camera |
|
Product Model |
CP-UNC-DA21L3C-Q |
|
Image Sensor |
1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters) |
|
Effective Pixels |
1920 (H) × 1080 (V) |
|
Minimum Illumination |
0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
|
Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
White Balance |
Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
|
RAM |
128 MB |
|
ROM |
128 MB |
|
DORI Distance |
Lens 3.6mm: 52.4 m (Detect), 21.0 m (Observe), 10.5 m (Recognize), 5.2 m (Identify) Lens 2.8mm: 45.5 m (Detect), 18.2 m (Observe), 9.1 m (Recognize), 4.6 m (Identify) |
|
Gain Control (AGC) |
Auto/Manual |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F2.0 |
|
Lens Mount |
M12 |
|
Close Focus Distance |
3.6 mm: 0.9 m, 2.8 mm: 0.6 m |
|
Lens |
3.6mm (2.8mm optional) |
|
Video Compression |
Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
|
IR Number |
1 IR LED |
|
IR |
IR Range of 30 Mtr. |
|
Smart IR |
Support |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
S/N Ratio |
>56dB |
|
Angle of view |
3.6 mm: H: 86°, V: 47°, D: 103° 2.8 mm: H: 101°, V: 54°, D: 119° |
|
Back Light Compensation |
BLC/ HLC/ DWDR |
|
Stream Capability |
Triple stream |
|
Frame Rate |
Main stream: 2MP (1920 × 1080)@1–25/30fps Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps |
|
Video Format |
PAL/NTSC |
|
Privacy Mask |
4 areas |
|
Resolution |
2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
ROI |
Support (4 areas) |
|
OSD |
Camera title, Date & Time |
|
Audio |
Built-in Mic |
|
Audio Compression |
G.711a, G.711Mu, PCM, G.726, AAC |
|
Bit Rate |
H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
|
Bit Rate Control |
CBR/VBR |
|
Human Body Detection |
Support the classification and accurate detection of human & Motor Vehicle |
|
Protocol |
SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
|
SDK and API |
Support |
|
Iris Control |
Fixed |
|
Ethernet |
RJ-45 (10/100 Base-T) |
|
Smart search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
Alarm Event |
Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception |
|
Cyber Security |
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
|
Mirror Function |
Support |
|
IR Control |
Auto, Manual |
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower) |
|
Certificates |
ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
|
Power Source |
12 VDC/PoE (802.3af) |
|
Power Consumption |
Basic: 1.3 W (12 VDC), 1.6 W (PoE) Maximum (H.265 + intelligence on + WDR+ IR intensity): 3.3 W (12 VDC), 4.2 W (PoE) |
|
User/Host |
6 (Total bandwidth: 36 M) |
|
Weatherproof Standard |
IP67 |
|
Browser |
IE, Chrome, Firefox |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
≤95% (RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
≤95%(RH), non-condensing |
|
Casing |
Metal + Plastic |
|
Dimensions |
85.5 mm × 109 mm |
|
Weight |
250g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
10 x 15 x 12 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.25 kg |
|
Generic Name |
Dome Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
