SKU # 1000139322

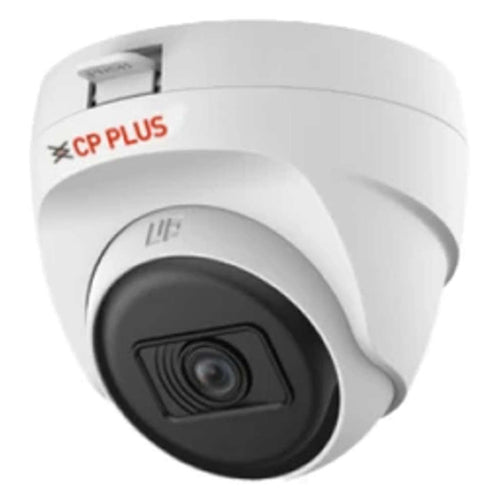

CP Plus 2.4MP IR Dome Camera CP-URC-DC24PL3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
2.4MP PS CMOS Image Sensor
-
DWDR, Day/Night (ICR), 2D DNR, BLC, HLC
-
3.6mm fixed lens (2.8 mm Optional)
-
IR Range of 30 Mtr., Smart IR
-
4 Signals over 1 Coaxial Cable
-
CVI/ CVBS/ AHD/ TVI switchable
-
Functions
-
IR LED
-
Numerous IR LEDs provide detailed images even in very low light conditions
-
These LEDs adjust the infrared intensity for distinct images in dark environments for up to 20mtrs
-
UNI+ Technology
-
CP PLUS Analog HD cameras offer compatibility across all the available technologies - CVBS, TVI, HDCVI, AHD and Hdx, making upgrading simple and hassle-free
-
Power Protection
-
With a voltage tolerance range of ±30, these cameras are suitable even in fluctuating power conditions
-
Plug & Play
-
CP PLUS Analog HD cameras are simple to configure and install
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Dome Camera |
|
Product Model |
CP-URC-DC24PL3 / CP-URC-DC24PL3-0360 |
|
Image Sensor |
2.4MP PS CMOS Image Sensor |
|
Minimum Illumination |
0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
Maximum Resolution |
1920 (H) × 1080 (V) |
|
Shutter Speed |
PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
|
White Balance |
Auto |
|
Maximum Aperture |
F2.0 |
|
Lens Mount |
M12 |
|
Close Focus Distance |
3.6 mm: 0.8 m, 2.8 mm: 0.5 m |
|
DORI Distance |
Lens 3.6 mm: Detect-55.0 m, Observe-22.0 m, Recognize - 11.0 m, Identify-5.5 m; Lens 2.8 mm: Detect-44.7 m, Observe-17.9 m, Recognize-8.9 m, Identify-4.5 m |
|
Lens Type |
Fixed-focal |
|
Gain Control(AGC) |
Auto |
|
Lens |
3.6mm (2.8mm optional) |
|
Angle Of View |
3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117° |
|
S/N Ratio |
>65 dB |
|
Back Light Compensation |
BLC/ DWDR |
|
Resolution |
1080p (1920 × 1080), 960H (960 × 576/ 960 × 480) |
|
Frame Rate |
CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
|
Noise Reduction |
2D DNR |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
IR Control |
Auto, Manual |
|
IR |
IR Range of 30 Mtr., |
|
IR Number |
1 IR light |
|
IR Mode |
Smart IR |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Power Source |
12 VDC ± 30% |
|
Power Consumption |
Maximum 2.3 W (12 VDC, IR on) |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
<95% (RH), non-condensing |
|
Casing |
Plastic |
|
Iris Control |
Fixed |
|
Dimension |
85 × 77.1 mm |
|
Weight |
0.11 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
11 x 11 x 9 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.300 kg |
|
Generic Name |
Dome Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
