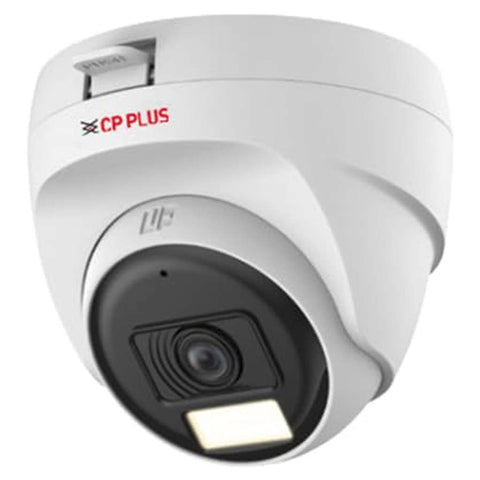

CP Plus 2.4MP Dual Light Dome Camera CP-URC-DC24PL3C-L
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
2.4MP PS CMOS Image Sensor
-
DWDR, Day/Night (ICR), 2D DNR, BLC, HLC
-
3.6mm fixed lens (2.8 mm optional)
-
IR Range of 30 Mtrs., Warm Light Range of 20 Mtr
-
Control over coaxial cable
-
Support Built-in Mic
-
Functions
-
Smart Dual IR (Warm Light And IR)
-
Smart Dual IR combines infrared and warm light for superior night vision, ensuring clear images in complete darkness and providing enhanced visibility in low-light conditions
-
True Day/Night (ICR)
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
All-In-1 HD Camera (HDCVI, HDTVI, AHD, CBVS)
-
This feature supports multiple video formats-HDCVI, HDTVI, AHD, and CBVS-making the camera versatile and compatible with various DVRs for seamless integration
-
Active Deterrence
-
Active deterrence includes turning on warm LED lights towards intruders in real-time, enhancing security by preventing potential threats before they escalate
-
*Deterrence will only work with SMD supported DVRs
-
Built-In Mic
-
The built-in microphone captures high-quality audio, adding an extra layer of security by recording sound along with video, which is essential for comprehensive surveillance
-
Long Distance Transmission
-
Long-distance transmission capability allows video signals to be transmitted over extended distances without quality loss, ensuring reliable and clear footage from remote locations
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Dome Camera |
|
Product Model |
CP-URC-DC24PL3C-L / CP-URC-DC24PL3C-L-0360 |
|
Image Sensor |
2.4MP PS CMOS Image Sensor |
|
Minimum Illumination |
0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
|
Gain Control(AGC) |
Auto/Manual |
|
White Balance |
Auto, Area white balance |
|
DORI Distance |
3.6 mm: Detect: 50.0Mtr., Observe: 22.0Mtr., Recognize: 11.0 Mtr., Identify: 5.5Mtr. 2.8 mm: Detect: 44.7Mtr., Observe: 17.9Mtr., Recognize: 8.9Mtr., Identify: 4.5Mtr. |
|
Close Focus Distance |
3.6mm-0.8Mtr., 2.8mm-0.5Mtr |
|
IR |
IR Range of 30 Mtr |
|
Warm Light |
Warm Light Rane of 20 Mtr |
|
IR Control |
Auto/Manual |
|
Dual LED Number |
2 (Warm light), 2 (IR light) |
|
Iris Control |
Fixed |
|
Lens Mount |
M12 |
|
Maximum Aperture |
F2.0 |
|
Lens Type |
Fixed-focal |
|
Lens |
3.6mm (2.8mm optional) |
|
S/N Ratio |
>65 dB |
|
Back Light Compensation |
BLC/HLC/DWDR |
|
Angle Adjustment |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
|
Angle Of View |
3.6 mm: H: 80°, V: 43°, D: 94° 2.8 mm: H: 100°, V: 54°, D: 117° |
|
Video Streaming |
CVI: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps, AHD: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps TVI: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps, CVBS: PAL: 960H NTSC: 960H |
|
Resolution |
2.4MP(1928×1088), 960H (960 × 576/960 × 480) |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Noise Reduction |
2D DNR |
|
IR Mode |
Smart IR&WL, WL Mode, IR Mode |
|
Mirror Function |
Support |
|
Privacy Masking |
Off/On (8 areas, rectangle) |
|
OSD Menu |
Multi-language |
|
Audio |
Built-in Mic |
|
Operating Temperature |
-40°C ~ +60°C (-40°F ~ +140°F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
Storage Temperature |
-40°C ~ +60°C (-40°F ~ +140°F) |
|
Storage Humidity |
<95% (RH), non-condensing |
|
Power Source |
12V DC ± 30% |
|
Power Consumption |
Maximum 2.1 W (12 VDC, LED on) |
|
Casing |
Plastic |
|
Dimension |
85 × 77.1 mm |
|
Weight |
0.11 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
11 x 6 x 6 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.300 kg |
|
Generic Name |
Dome Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
