SKU # 1000121943

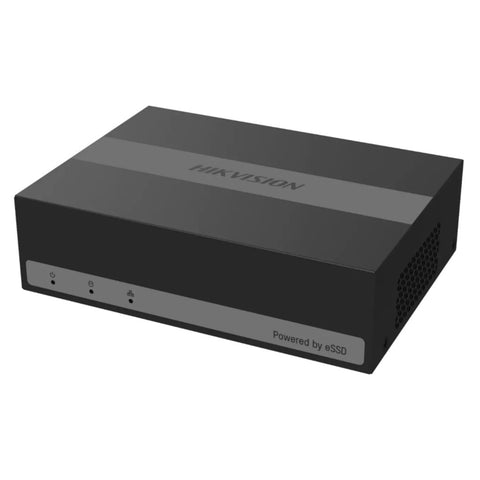

Hikvision Edvr Series eSSD DVR 4Channel 4MP DS-E04HQHI-B
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Powered by eSSD technology
-
Low power consumption
-
Scene-adaptive bitrate control video compression
-
Deep learning based human and vehicle targets classification of Motion Detection 2.0
-
HDTVI/AHD/CVI/CVBS/IP video inputs
-
Up to 1080p Lite@30 fps encoding capability
Product Specification
| Brand | Hikvision |
| Product Type | DVR |
| Product Model | DS-E04HQHI-B |
| Series | Edvr |
| Motion Detection | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Recording | |
| Video Compression | H.265 Pro/H.265 |
| Encoding Resolution | 4 MP Lite/1080p/720p/WD1/4CIF/QVGA/CIF |
| Frame Rate | Main stream: |
| Video Bitrate | According to the actual scene, scene-adaptive bitrate control technology would |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video And Audio | |
| IP Video Input | 1-ch,Up to 1080p resolution,Support H.265+/H.265 IP camera |
| Analog Video Input | 4-ch |
| HDTVI Input | 4 MP/30, 4 MP/25, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 |
| AHD Input | 4 MP/30, 4 MP/25, 1080p/30, 1080p/25, 720p/30, 720p/25 |
| HDCVI Input | 4 MP/30, 4 MP/25, 1080p/30, 1080p/25, 720p/30, 720p/25 |
| CVBS Input | Support |
| HDMI Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 HZ |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 4-ch via coaxial cable |
| Audio Output | 1-ch via HDM |
| Synchronous Playback | 4-ch |
| Network | |
| Total Bandwidth | 72 Mbps |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| Capacity | Built-in 330 GB eSSD (300 GB available) |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC, 1 A |
| Consumption | ≤ 5.4 W (with eSSD) |
| Working Temperature | -10 °C to 45 °C (14 °F to +113 °F) |
| Working Humidity | 10% to 90% |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) - L x B x H | 151 × 121× 46 mm |
| Unit of Measurement | 1 Piece |
| Weight | 0.5 kg |
| Generic Type | 4 Channel DVR |
| Manufacturer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
| Packer Details | Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
| Country of Origin | India |
