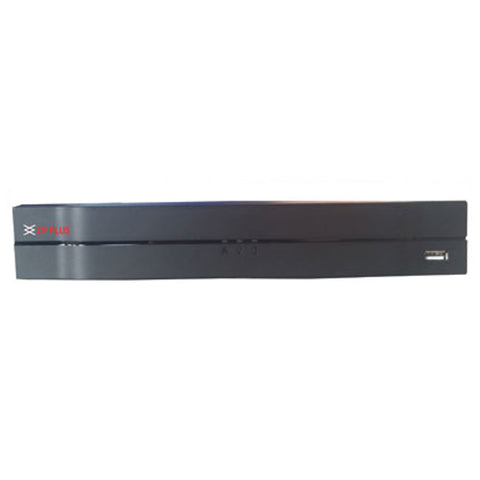

CP Plus Digital Video Recorder 16 Channel CP-UVR-1601K1-V5

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 24 channels IP camera inputs, each channel up to 4MP
-
Maximum 96Mbps Incoming Bandwidth
-
H.264+/H.264 dual-stream video compression
-
Support 1 SATA HDD up to 8TB, 2 USB Ports
-
HDMI / VGA Simultaneous Video Output
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
|
Brand |
CP Plus |
|
Product Type |
DVR |
|
Product Model |
CP-UVR-1601K1-V5 |
|
Processor |
Embedded processor |
|
Operating System |
Embedded LINUX |
|
Ip Camera Input |
16+8: each channel up to 4MP |
|
Two-Way Talk |
Reuse audio in/out, RCA |
|
User Interface |
GUI |
|
Video Output |
1 HDMI, 1 VGA |
|
Video Resolution |
HDMI: 1920 x 1080, 1280 x 1024, 1280 x 720 VGA: 1920 x 1080, 1280 x 1024, 1280 x 720 |
|
Video Recording |
Main stream: All channel 5M-N(1fps–10fps); 4M-N/1080p(1 fps–15 fps); 720P/960H/D1/CIF(1 fps–25/30 fps); Sub stream: 960H(1 fps–15 fps); 1/CIF(1 fps–25/30 fps) |
|
Resolution |
5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, BCIF, QCIF |
|
Video Compression |
H.264+/H.264 |
|
Video Display Split |
1/4/8/9/16 |
|
Video Channel |
16 channels, BNC |
|
Anomaly Alarm |
No disk, disk error, low space, offline, IP conflict, MAC conflict |
|
Alarm Linkage |
Record, snapshot(panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
|
General Alarm |
Motion detection, Video Loss, tampering |
|
Audio Input |
1 channel, RCA |
|
Audio Output |
1 channel, RCA |
|
Motion Detection |
Supports |
|
Video Loss |
Supports |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Face |
Only for the 1st channel, only support analog camera |
|
Hard Disk |
1 SATA port, up to 8TB |
|
Bit Rate |
32Kbps ~ 6144Kbps Per Channel |
|
Recording Mode |
Manual, Schedule(General, Continuous), MD(Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|
Search Mode |
Time/Date, Alarm, MD & Exact search(accurate to second) |
|
Backup Mode |
USB Device/Network |
|
Playback |
Instant playback, general playback, event playback, tag playback, smart playback(face and motion detection) |
|
Maximum User Account |
128 users |
|
Ethernet |
1 RJ-45 port(1000MB) |
|
Interface Ports |
2 USB ports(1 USB 2.0, 1 USB 3.0), 1 RS485 Port |
|
Protocols |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, SNMP, UPnP, RTSP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, Alarm Server, IP Search, ONVIF(profile S), CGI, SDK |
|
Power Supply |
DC 12V/2A |
|
Power Consumption |
<10W(without HDD) |
|
Working Temperature |
-10°C ~ +55°C(+14°F ~ +131°F), 10 ~ 90% RH |
|
Dimension |
260mm × 220mm × 44mm |
|
Weight |
1.05kg(without HDD) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel DVR |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
