SKU # 1000077087

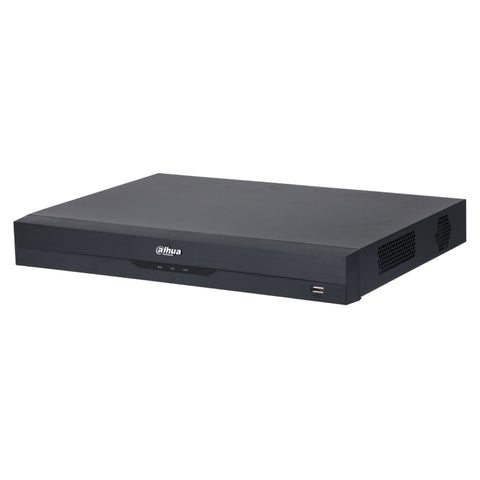

Dahua Wizsense Digital Video Recorder 16 Channel 720P DH-XVR4216AN-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
H.265+/H.265 video compression
-
Supports Full-channel AI-Coding
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth
-
Long transmission distance over coax cable
-
Up to 8 channels video stream ( analog channel ) SMD Plus
-
Supports 2 SATA HDD, up to 10 TB
-
Functions
-
Smart Fan Design
-
SMD Plus
-
AI Coding
-
Smart H.265+
-
HDCVI/AHD/TVI/CVBS Auto-detect
-
High Definition Camera Input
-
Coaxial Audio/Upgrade/Alarm
-
Long Distance Transmission
Product Specification
Brand |
Dahua |
Product Type |
Digital Video Recorder |
Product Model |
DH-XVR4216AN-I |
Series |
WizSense |
System | |
Main Processor |
Embeddedprocessor |
Operating System |
Embeddedlinux |
SMD Plus | |
Performance |
8 channels |
AI Search |
Search by target classification (Human, Vehicle) |
Video And Audio | |
Analog Camera Input |
16 channels, BNC |
HDCVI Camera |
1080p@ 25/30 fps, 720p@ 25/30 fps |
AHD Camera |
1080p@ 25/30 fps, 720p@25/30 fps |
TVI Camera |
1080p@25/30 fps, 720p@25/30fps |
CVBS Camera |
PAL/NTSC |
IP Camera Input |
16+2/16 channels, each channel up to 6MP |
Audio In/Out |
1/1, RCA |
Two-Way Talk |
Reuse audio in/out, RCA |
Recording | |
Video Compression |
AI Coding/H.265+/H.265/H.264+/H.264 |
Resolution |
1080N; 720p; 960H; D1; CIF |
Record Rate |
Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps) Sub steram: CIF(1 fps–7 fps) |
Bit Rate |
32 kbps–4096 kbps per channel |
Record Mode |
Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
Record Interval |
1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec |
Audio Compression |
G.711A, G.711U, PCM |
Audio Sample Rate |
8 KHz, 16 bit per channel |
Audio Bit Rate |
64 kbps per channel |
Display | |
Interface |
1 HDMI; 1 VGA |
Resolution |
1920 × 1080, 1280 × 1024, 1280 × 720 |
Multi-Screen Display |
When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16 |
OSD |
Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
Network | |
Interface |
1 RJ-45 Port (100 MB) |
Network Function |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
Max. User Access |
128 users |
Smart Phone |
iPhone; iPad; Android |
Interoperability |
ONVIF 16.12, CGI Conformant |
Video Detection And Alarm | |
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
Alarm Input |
N/A |
Relay Output |
N/A |
Playback And Backup | |
Playback |
1/4/9/16 |
Search Mode |
Time/Date, Alarm, MD and Exact Search (accurate to second) |
Playback Function |
Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
Backup Mode |
USB Device/Network |
Storage | |
Internal HDD |
2 SATA ports, up to 10 TB capacity |
Esata |
N/A |
Auxiliary Interface | |
USB |
2 USB ports (USB 2.0) |
RS232 |
N/A |
RS485 |
1 port, for PTZ control |
Electrical | |
Power Supply |
DC 12V/4A |
Power Consumption (Without HDD) |
< 10W |
Environmental | |
Operating Conditions |
-10°C to +55°C (+14°F to +131°F), 10%–90% (RH) |
Storage Conditions |
-20°C to +70°C (-4°F to +158°F) , 0%–90% (RH) |
Third-Party Support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
Certifications |
FCC: Part 15 Subpart B |
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024 | |
UL: UL 60950-1 | |
Construction | |
Dimensions |
1U, 375.0 mm × 289.4 mm × 53.0 mm (14.76" × 11.39" × 2.09") |
Net Weight (Without HDD) |
1.61 kg (3.55 lb) |
Gross Weight |
2.86 kg(6.30 lb) |
Installation |
Desktop installation |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel DVR |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
