SKU # 1000094913

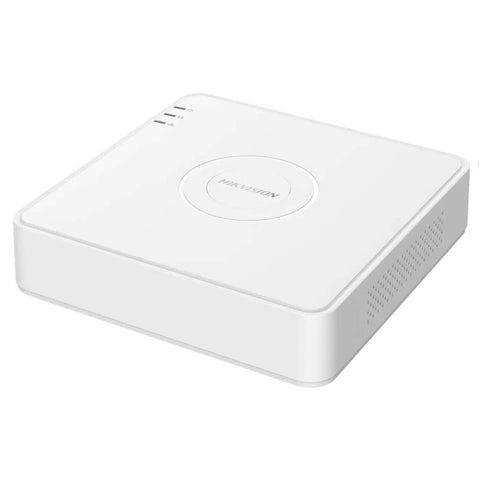

Hikvision Value Series DVR Lite Mini 1U H.265 16 Channel 1080P DS-7116HGHI-K1
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
H.265 Pro+/H.265 Pro/H.265 video compression
-
HDTVI/AHD/CVI/CVBS/IP video input
-
Audio via coaxial cable
-
Up to 18-ch IP camera input (up to 5 MP)
-
Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
-
Up to 10 TB capacity per HDD
Product Specification
|
Brand |
Hikvision |
|
Product Type |
DVR |
|
Product Code |
DS-7116HGHI-K1 |
|
Series |
Value |
|
Recording |
|
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Encoding Resolution |
1080p Lite/720p/Vga/Wd1/4cif/Cif |
|
Frame Rate |
Main Stream: For 1080p Stream Access: 1080p Lite/720p Lite/Wd1/4cif/Vga@15 Fps; Cif@25 Fps (p)/30 Fps (n) For 720p Stream Access: 720p/Wd1/4cif/Vga@15 Fps; Cif@ 25fps (p)/30 Fps (n) For Standard Definition Stream Access: Wd1/4cif/Vga/Cif@25 Fps (p)/30 Fps (n) Sub-Stream: For 1080p And 720p Stream Access: Cif/Qvga@15 Fps For Standard Definition Stream Access: Cif/Qvga@25 Fps (p)/30 Fps (n) |
|
Video Bitrate |
32 Kbps To 4 Mbps |
|
Dual Stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bit Rate |
64 Kbps |
|
Video And Audio |
|
|
Ip Video Input |
2-Ch (up To 18-Ch) Up To 5 Mp Resolution Support H.265+/H.265/H.264+/H.264 Ip Cameras |
|
Analog Video Input |
16-Ch Bnc Interface (1.0 Vp-P, 75 Ω), Supporting Coaxitron Connection |
|
Hdtvi Input |
1080p25, 1080p30, 720p25, 720p30 |
|
Ahd Input |
1080p25, 1080p30, 720p25, 720p30 |
|
Hdcvi Input |
1080p25, 1080p30, 720p25, 720p30 |
|
Cvbs Input |
Pal/Ntsc |
|
Hdmi/Vga Output |
1-Ch, 1920 × 1080/60hz, 1280 × 1024/60hz, 1280 × 720/60hz, 1024 × 768/60hz Hdmi/Vga Simultaneous Output |
|
Audio Input |
1-Ch Rca (2.0 Vp-P, 1 Kω), And 16-Ch Via Coaxial Cable |
|
Audio Output |
1-Ch, Rca (linear, 1 Kω) |
|
Two-Way Audio |
1-Ch, Rca (2.0 Vp-P, 1 Kω) (using The Audio Input) |
|
Synchronous Playback |
16-Ch |
|
Video Output Mode |
Hdmi/Vga Simultaneous Output |
|
Network |
|
|
Remote Connections |
128 |
|
Network Protocols |
Tcp/Ip, Pppoe, Dhcp, Hik-Connect, Dns, Ddns, Ntp, Sadp, Nfs, Iscsi, Upnptm, Https, Onvif |
|
Network Interface |
1, Rj45 10/100 Mbps Self-Adaptive Ethernet Interface |
|
Auxiliary Interface |
|
|
Sata |
1, Sata Interface |
|
Capacity |
Up To 10 Tb Capacity For Each Disk |
|
Usb Interface |
Rear Panel: 2 × Usb 2.0 |
|
General |
|
|
Power Supply |
12 Vdc, 1.6 A |
|
Consumption (without Hdd) |
≤ 7 W (without Hdd) |
|
Working Temperature |
-10 °c To 55 °c (14 °f To 131 °f) |
|
Working Humidity |
10% To 90% |
|
Dimension (w × D × H) |
285 × 210 × 45 Mm (11.2 × 8.3 × 1.8 Inch) |
|
Weight (without Hdd) |
≤ 1.8 Kg |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel DVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
