LAST SOLD AT ₹ 14,927.00
SKU # 1000040404

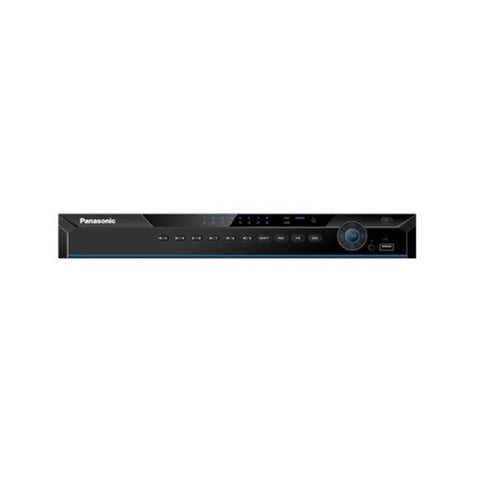

Panasonic 16Channel 1U Digital Video Recorder PI-HL1216XK

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Support HDCVI/AHD/TVI/CVBS/IP video inputs
-
H.264 Video compression
-
Max 18 channels IP camera inputs
-
Max. 16ch@720P (1~15fps)
-
HDMI/VGA simultaneous video output
-
Support 2 SATA HDDs up to 16 TB, 2 USB2.0
-
Multiple network monitoring: Web viewer, CMS(PVMS) & Smart Phone (PMOB)
Product Specification
Brand |
Panasonic |
Product Type |
Digital Video Recorder |
Model |
PI-HL1216XK |
Main Processor |
Intel Processors |
Operating System |
Embedded LINUX |
IP Camera Input |
16+2 each channel up to 5MP |
Two-way Talk |
Reuse audio in/out, RCA |
Interface |
1 HDMI, 1 VGA |
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
Display Split |
1/4/8/9/16/25 |
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Compression |
H.264 |
Resolution |
1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
Record Rate |
1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) |
Bit Rate |
1Kbps ~ 6144Kbps Per Channel |
Record Mode |
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
Record Interval |
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
Video Detection |
Motion Detection, MD Zones: 396(22×18), Camera Blank |
Sync Playback |
1/4/9/16 |
Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second) |
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous cameraFull screen, Repeat, Shuffle, Backup selection, Digital zoom |
Backup Mode |
USB Device/Network |
Interface |
1 RJ-45 port (100Mbps) |
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 2.42, CGI Conformant |
Max. User Access |
128 users |
Smart Phone |
iPhone, iPad, Android |
Internal HDD |
2 SATA ports, up to 16TB |
USB |
2 USB Ports(2.0) |
Rs485 |
1 Port, for PTZ Control |
Power Supply |
DC12V/4A |
Power Consumption |
<15W (Without HDD) |
Working Environment |
-10°C ~+55°C/10%~90%RH |
Dimension(W×D×H) |
1U, 375mm x 287mm x 53mm |
Weight |
2.35kg (without HDD) |
Warranty |
As Per Manufacturer Terms & Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel DVR |
Manufacturer Details |
Panasonic India Private Limited, 12th Floor, Ambience Tower, NH-8, Ambience Island, DLF Phase 3, Sector 24, Gurugram, Haryana 122002, Phone : 1800 108 1333 |
Packer Details |
Panasonic India Private Limited, 12th Floor, Ambience Tower, NH-8, Ambience Island, DLF Phase 3, Sector 24, Gurugram, Haryana 122002, Phone : 1800 108 1333 |
Country of Origin |
India |
