Out of Stock!
SKU # 1000102834

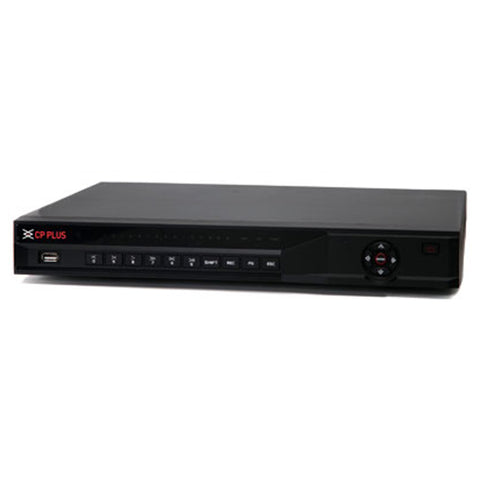

CP Plus Digital Video Recorder 16 Channel CP-UVR-1601K2-V5

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 24 channels IP camera inputs, each channel up to 4MP
-
Maximum 96Mbps Incoming Bandwidth
-
H.264+/H.264 dual-stream video compression
-
Support 2 SATA HDD up to 8TB Each, 2 USB Ports
-
HDMI / VGA Simultaneous Video Output
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
| Brand | CP Plus |
| Product Type | DVR |
| Product Model | CP-UVR-1601K2-V5 |
| Processor | Embedded processor |
| Operating System | Embedded LINUX |
| Ip Camera Input | 16+8: each channel up to 4MP |
| Two-Way Talk | Reuse audio in/out, RCA |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | HDMI: 1920 x 1080, 1280 x 1024, 1280 x 720 VGA: 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Video Recording | Main stream: All channel 5M-N(1fps–10fps); 4M-N/1080p(1 fps–15 fps); 720P/960H/D1/CIF(1 fps–25/30 fps); Sub stream: 960H(1 fps–15 fps); 1/CIF(1 fps–25/30 fps) |
| Resolution | 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, BCIF, QCIF |
| Video Compression | H.264+/H.264 |
| Video Display Split | 1/4/8/9/16 |
| Video Channel | 16 channels, BNC |
| | No disk, disk error, low space, offline, IP conflict, MAC conflict |
| Alarm Linkage | Record, snapshot(panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
| General Alarm | Motion detection, Video Loss, tampering |
| Audio Input | 1 channel, RCA |
| Audio Output | 1 channel, RCA |
| Motion Detection | Supports |
| Video Loss | Supports |
| Smart Phone | iPhone, iPad, Android Phone |
| Face | Only for the 1st channel, only support analog camera |
| Hard Disk | 2 SATA port, up to 8TB Each |
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
| Recording Mode | Manual, Schedule(General, Continuous), MD(Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Search Mode | Time/Date, Alarm, MD & Exact search(accurate to second) |
| Backup Mode | USB Device/Network |
| Playback | Instant playback, general playback, event playback, tag playback, smart playback(face and motion detection) |
| Maximum User Account | 128 users |
| Ethernet | 1 RJ-45 port(1000MB) |
| Interface Ports | 2 USB ports(1 USB 2.0, 1 USB 3.0), 1 RS485 Port |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, SNMP, UPnP, RTSP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, Alarm Server, IP Search, ONVIF(profile S), CGI, SDK |
| Power Supply | DC12V/4A |
| Power Consumption | <10W(without HDD) |
| Working Temperature | -10°C ~ +55°C(+14°F ~ +131°F), 10 ~ 90% RH |
| Dimension | 375 mm × 288 mm × 53 mm |
| Weight | 1.8kg(without HDD) |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel DVR |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
