LAST SOLD AT ₹ 16,830.00
SKU # 1000077381

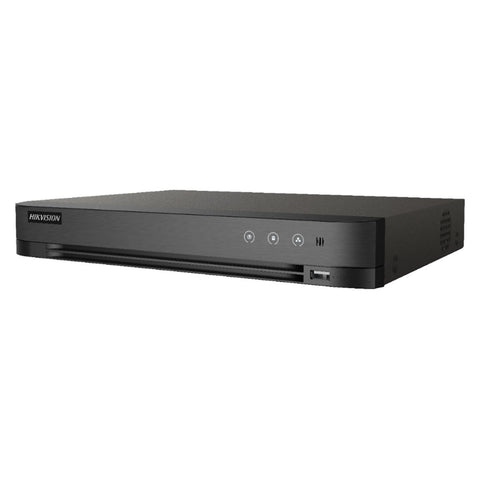

Hikvision 16 Channel DVR 1080P Metal Body 1SATA IDS-7216HQHI-M1/S
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
16-ch 1080p 1U H.265 AcuSense DVR
-
16 channels and 1 HDD 1U AcuSense DVR
-
Provides detailed information with face detection
-
False alarm reduction through human and vehicle target classification based on deep learning
-
Efficient H.265 pro+ compression technology
-
Encoding ability up to 1080p @ 15 fps
-
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
-
Up to 24 network cameras can be connected
Product Specification
|
Brand |
Hikvision |
|
Product Type |
DVR |
|
Product Code |
IDS-7216HQHI-M1/S |
|
Recording |
|
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Encoding Resolution |
4MB |
|
Video Bitrate |
32 Kbps to 6 Mbps |
|
Dual-Stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Video and Audio |
|
|
IP Video Input |
8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras |
|
Analog Video Input |
16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
HDMI Output |
Yes |
|
CVBS Input |
PAL/NTSC |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Synchronous playback |
16-ch |
|
AHD Input |
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
|
HDCVI Input |
3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps Note: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/ |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Audio Input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|
Decoding |
|
|
Recording Resolution |
Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
|
Network |
|
|
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|
Remote Connection |
128 |
|
Network Interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
1 SATA interface |
|
Capacity |
Up to 10 TB capacity for each disk |
|
Serial Interface |
RS-485 (half-duplex) |
|
USB Interface |
1 × USB 2.0； 1 × USB 3.0 |
|
Alarm In/Out |
No |
|
General |
|
|
Power Supply |
12 VDC |
|
Consumption |
≤ 24 W |
|
Working Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) |
|
Working Humidity |
≤ 24 W |
|
Chassis |
1U(315mm) |
|
Dimension (W × D × H) |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) ≤ 2 kg (4.4 lb) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
16 Channel DVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
