Out of Stock!

SKU # 1000024332

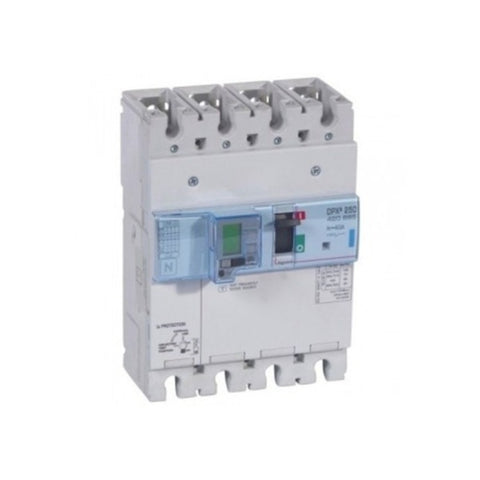

Legrand DPX3 MCCB 4 Pole 40A-250A

Legrand DPX3 MCCB 4 Pole 40A-250A


₹ 84,866.00

Quantity

Min Qty : 1



Delivery Availability

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Protection Against Overloads,Lr Adjustable From 0.4 To 1 X Ln,Tr Adjustable From 3 To 15s

  • Protection Against Short Circuits,Lsd Adjustable From 1.5 To 10 X Lr,Tsd Adjustable From 0 To 0.5s

  • Equipped With Earth Leakage Module With Lcd Screen

  • Adjustable Sensitivity: 0.03 - 0.3 - 1 - 3 A

  • Adjustable Tripping: 0 - 0.3 - 1 - 3s (with 0.03 Apossible Only 0s)

  • Integrated Energy Metering Central Unit With Lcd Screen; Currents, Voltage, Frequency, Power, Energyand Harmonics

  • MCCBs For Switching, Remote Tripping And Protection Of Low Voltage Electrical System

  • Supplied With Insulated Shileds, Screw Terminals 120 mm2 Max. (flexible Cable) Or 150 mm2 Max. Rigid Cable With Accessories

  • Can Be Fitted With Accessories And Dpx3 Common Auxiliaires

  • Conform To IEC 60947-2

Product Specification

Brand

Legrand

Model

DPX3

Product Type

MCCB


Product Code | Rated Current

4206 85 | 40 A

4206 87 | 100 A

4206 88 | 160 A

4206 89 | 250 A

Color

White

No Of Pole

4 Pole

Voltage

400 V

Breaking Capacity (kA)

70 kA

Warranty

As Per Manufacturer Terms and Condition
